Rewiring a fiberglass boat is a complex task that requires careful planning and execution. It is important to ensure that all electrical connections are secure and comply with the latest regulations to avoid potential safety hazards. The process involves choosing the correct cables, terminating multiple cables securely, and concealing new wiring in the boat's structure. Safety precautions, such as using protective gear and working with a professional, are crucial when dealing with electrical systems in a marine environment. The cost of professional rewiring can vary, but it is generally recommended to acquire the skills and perform the task independently to save money.

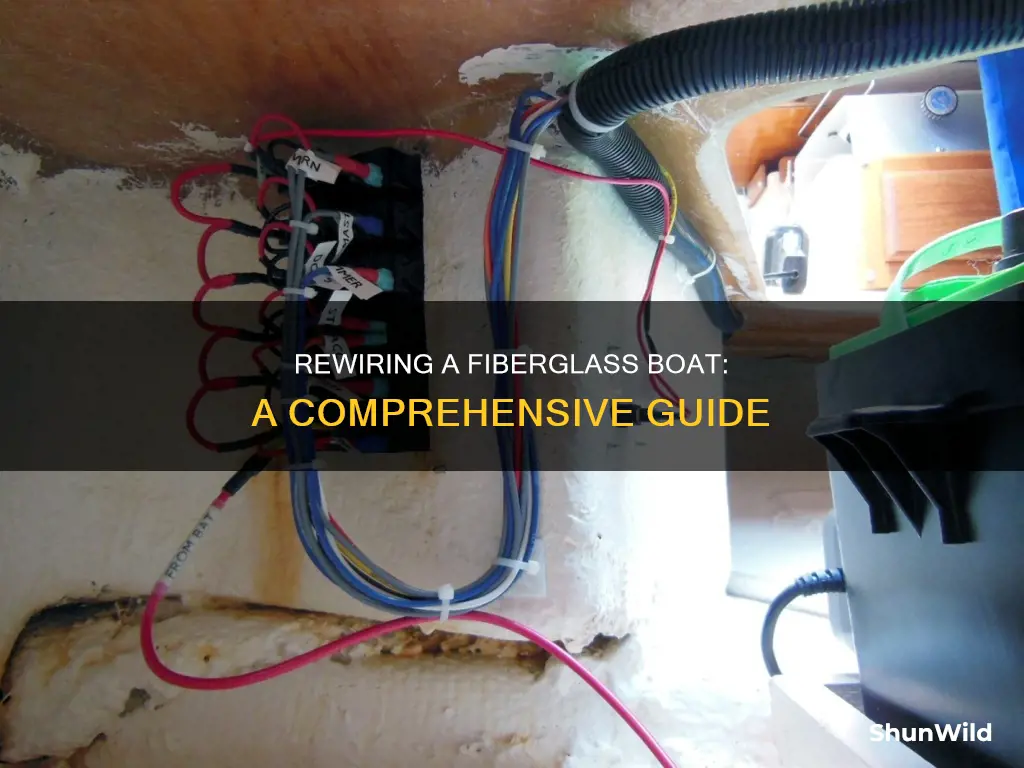

How to Rewire a Fiberglass Boat
| Characteristics | Values |
|---|---|
| Cost | Between $500 and $1000 for professional work |
| Difficulty | Not difficult, but time-consuming |
| Safety | 12V and low amps, so unlikely to hurt yourself |
| Tools | Wire cutters, strippers, crimper, heat shrink tubing, butt connectors, fuse panel, breaker panel |
| Materials | Multi-stranded marine cable with tinned copper conductors, fuel-resistant and fire-retardant insulation |
| Connections | Clean, firmly attached, and properly secured |
| Cable sizing | CSA should be large enough to prevent voltage drop; add 30% safety/expansion margin |
| Cable routing | Avoid connectors; use single runs of wire where possible |
| Compliance | Comply with American Boat and Yacht Council (ABYC) standard E-11 |
Explore related products
What You'll Learn
Choosing the right cables
Firstly, it is important to understand the basics of wiring a boat. Marine wiring comes in various sizes, measured in gauge, which denotes wire thickness. The general rule is that the smaller the gauge number, the thicker the cable. For instance, an 8 AWG (American Wire Gauge) cable is slightly over 3mm thick, while an 18-gauge wire is only 1mm thick.
When selecting cables, it is crucial to consider the power requirements of the devices you will be using on your boat. Modern boat owners often install power-hungry devices such as fridges, windlasses, thrusters, inverters, immersion heaters, and even air conditioning. To ensure safety, the cabling for these high-power units must be adequately sized to handle the load. For example, using a smaller, cheaper cable to feed power to a device at the bow of the boat can result in a noticeable voltage drop, slowing down the device and increasing the current drawn through the cable, potentially leading to overheating and fire hazards.
To calculate the appropriate cable size, determine the maximum current that could be flowing when all devices are in use, and then add a safety margin of around 30%. You can calculate the total current loading for each cable in amps (A) by dividing the power of a device in watts (W) by the circuit voltage (V). Additionally, consider the length of your boat wires, as longer wires can result in a more significant voltage drop.
It is also essential to follow recommended standards and regulations. The American Boat and Yacht Council (ABYC) has specific guidelines, such as requiring all conductors to be at least 16-gauge, with an exception for 18-gauge conductors in certain situations. Stranded cables are more suitable for the vibrations of boat travel but are more expensive. Marine-grade wire and cable are worth considering as they are tinned for their whole length, providing better protection.
Finding Texas Boat Owners: A Quick Guide
You may want to see also
Explore related products
Where to conceal new wiring
When rewiring a fibreglass boat, it is important to find places to contain and conceal the new wiring. In the cabin area of a C-22, the best place to do this is in the channel formed by the hull-to-deck joint. This channel runs nearby most places where you will want to mount lights and accessories. In first-generation C-22s, this channel is covered by teak trim that can be easily removed. It is helpful to tape the wires in place until you finish installing them and then replace the trim.
However, there is no one-size-fits-all solution, and the correct wire size depends on the length of the circuit and the load of all devices on the same circuit. Therefore, it is important to measure the round trip distance to each device from the panel and calculate the correct wire gauge according to the E-11 tables. That’s the only way to be safe and avoid a potential overload condition.
When rewiring a boat, it is also essential to keep wires out of the bilges wherever possible. If this is unavoidable, either use heat-sealed crimps or seal any joints or terminal strips in a watertight box. To hide and support wiring on a fibreglass hull, one option is to use PC-11 epoxy to glue 1”x1” blocks of 1/2” plywood up under the gunwales. Then, screws can be used to fasten plastic cable holders to the blocks. Another option is to use Gorilla Glue or tape to secure the wires.
It is also important to choose the correct cables for the job. All marine cables should be multi-stranded, with tinned copper conductors. The flexibility of the strands compensates for any movement or vibration typical of a vessel at sea, and the tinning protects the copper wire from oxidation, which can result in increased resistance and faulty connections. Additionally, it is important to ensure that all terminations are clean, firmly attached, and properly secured.
Repairing Boat Props: A Step-by-Step Guide
You may want to see also
Explore related products
Using connectors
When rewiring a fibreglass boat, it is important to choose the correct cables for the job. All marine cables should be multi-stranded with tinned copper conductors to protect the wiring from oxidisation and increase flexibility. The size of the cable is also important, as undersized conductors can overheat and pose a fire risk.
Before connecting the cables, ensure all terminations are clean and firmly attached, with the adjacent cable properly secured. When sealing, use a heat gun on its lowest setting as heating it too quickly will cause the adhesive to bubble up and create air cavities in the joint. Alternatively, coat the joint in silicone grease before applying a heat shrink cover.
When connecting the cables, it is important to use the correct type of connector. Spade connectors are commonly used in boats, but they can be prone to saltwater corrosion. Ancor connectors are a good option, but they are not the cheapest. It is also important to use a good-grade crimper tool to ensure strong connections.
When mounting wires to the interior fibreglass, it is important to use an adhesive that can withstand the heat and humidity. Cable tie mounts with adhesive tape on the back may not be suitable for these conditions, as the tape can fail. A better option is to use quick-dry epoxy to secure the cable tie mounts to the fibreglass.
It is also important to consider the routing of the cables. In some areas, such as the cabin of a C-22, the wires can be taped in place and concealed behind teak trim. In other areas, such as the mast wiring jack, it may be necessary to find a different solution to conceal the wires.
The Best Way to Clean Boat Vinyl Seats?
You may want to see also
Explore related products
Complying with regulations
When rewiring a fibreglass boat, there are several regulations and safety standards that must be adhered to. Here are some essential guidelines to ensure compliance:
Firstly, it is imperative to choose the correct cables for the job. Marine cables should be multi-stranded with tinned copper conductors. This is important because the flexibility of the strands can withstand the movement and vibration typical of a vessel at sea. The tinning also protects the copper wire from oxidation, preventing increased resistance and faulty connections. Additionally, ensure that the cable size is appropriate for its intended use. Undersized conductors can overheat under load, posing a dangerous fire risk.
When it comes to connections, never solder crimps or terminals. Soldering reduces flexibility, making the joint more susceptible to shearing off with regular movement. Instead, opt for crimp-type connections as they are less prone to breaking due to engine vibrations. Always use a ring terminal directly onto the stud to prevent moisture and contamination from entering the joint, thereby reducing the risk of overheating.
To meet the 7" overcurrent protection rule, install an MRBF-type fuse block on the positive post of your sailboat's deep cycle battery. If you have an outboard motor charging circuit or an onboard shore power charger, be sure to connect them upstream of the fuse block. Consider installing a battery master switch for more complicated systems.
Fire safety is also a crucial consideration. Install smoke alarms, carbon monoxide, and gas detectors to ensure early detection of potential hazards. Additionally, use fuel-resistant and fire-retardant insulation on cables running through engine compartments to mitigate the risk of fires.
Finally, ensure that all terminations are clean, firmly attached, and properly secured. Poor connections are the most common cause of electrical failure on boats, so it is essential to take the time to do this step correctly.
By following these guidelines, you can help ensure that your rewiring project complies with relevant regulations and safety standards, making your boat safer and more reliable.
Aluminum Runabout Boats: Lightweight, Durable, and Affordable Vessels
You may want to see also
Explore related products
Assessing damage
Before rewiring a fiberglass boat, it is important to assess the damage and determine the extent of the repairs needed. This step is crucial as it will help you understand the scope of the project and decide whether to attempt the repairs yourself or hire a professional. Here are some detailed guidelines to help you through the process:
Firstly, identify the cause of the damage by inspecting the boat thoroughly. Look for any signs of external damage caused by accidents, collisions, or impact. This step is crucial as it helps determine the extent and nature of the repairs needed. Pay close attention to cracks, holes, or depressions in the surface of the boat, as these can lead to further issues if left unrepaired. Water seepage through cracks or holes can cause damage to the boat's interior and electrical systems, so timely repairs are essential.
Secondly, check for any signs of water damage, especially if the boat has been submerged or exposed to water for extended periods. Look for discolouration, changes in texture, or water-filled areas, which could indicate that water has penetrated the hull or internal compartments. Discolouration and changes in texture can also be signs of corrosion or oxidation, which is common in a salty marine environment. Properly assessing water damage is crucial to understanding the extent of repairs needed and ensuring the safety and integrity of the boat.
Thirdly, evaluate the structural integrity of the boat. Determine whether the damage is primarily structural or cosmetic. Structural damage can include issues with the hull, framework, or internal components, which may require more extensive repairs or replacements. Cosmetic damage, on the other hand, primarily affects the boat's appearance, such as scratches, surface discolouration, or minor dents. Understanding the difference between structural and cosmetic damage will help you prioritise repairs and allocate resources accordingly.
Lastly, consider the location of the damage. Damage located under the waterline or in hard-to-reach areas may require more complex repair techniques and specialised tools. Assess your ability to access and repair these areas safely and effectively. If the damage is extensive or located in critical structural areas, it may be advisable to seek professional assistance to ensure a safe and proper repair.
By following these guidelines and thoroughly assessing the damage, you can make informed decisions about the repair process, including the tools, materials, and skills required. Remember that safety should always be a top priority when working on boat repairs, and don't hesitate to seek expert advice or assistance if needed.
The Ultimate Brainy Bass Boat: Ranger's Boat Brain
You may want to see also
Frequently asked questions
Rewiring a 16-foot fiberglass boat can cost anywhere from $500 to $1000 if done professionally. However, it is a job that can be done by boat owners themselves with the right tools, materials, and knowledge.
To rewire a fiberglass boat, you will need good quality wire cutters, strippers, and a crimper. You will also need a wire stripper with marked dies for each cable size. For the wiring itself, all marine cables should be multi-stranded with tinned copper conductors.
The process of rewiring a fiberglass boat involves finding places to contain and conceal the new wiring. This can be done by taping the wires in place and removing any trim to access the wiring channel. When connecting wires, it is best to use single runs of wire with no connectors. However, if wires need to be joined, it is recommended to use butt connectors with heat shrink tubing.
It is important to ensure that all terminations are clean, firmly attached, and properly secured. Additionally, choosing the correct cables is crucial, as undersized conductors can overheat and create a fire risk. It is also recommended to follow standards set by organizations like the American Boat and Yacht Council (ABYC) for electrical systems on boats.
