Hydraulic Steering Repair: A Step-By-Step Guide For Boat Owners

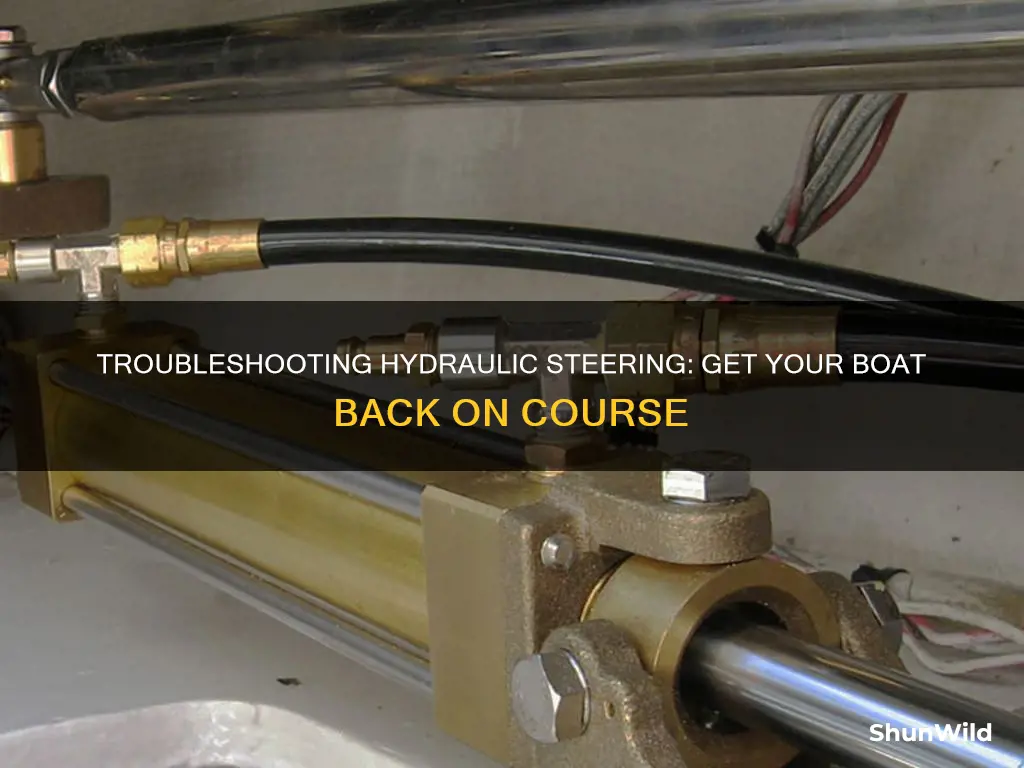

how to fix hydraulic steering work on a boat

Hydraulic steering systems on boats can sometimes malfunction, requiring repair or maintenance. This guide will provide a step-by-step approach to fixing hydraulic steering issues, covering common problems such as leaks, unresponsive steering, and pressure loss. It will also offer troubleshooting tips and maintenance advice to ensure your boat's steering system operates smoothly and reliably.

shunwild

Hydraulic System Inspection: Check for leaks, damage, and proper fluid levels

When inspecting the hydraulic steering system of a boat, it's crucial to be thorough and methodical to ensure optimal performance and safety. Start by visually examining the system for any signs of damage or wear. Look for cracks, corrosion, or any visible damage to the hydraulic lines, fittings, and components. Pay close attention to the connections and ensure they are tight and secure. Any loose connections can lead to leaks or reduced system efficiency. Inspect the steering cylinder and reservoir for any signs of contamination or debris. Clean the reservoir if necessary to ensure the fluid is not being diluted by contaminants.

The next step is to check for leaks. Hydraulic systems are sensitive to leaks, which can lead to a loss of steering control. Inspect all connections, fittings, and hoses for any signs of leakage. Leaks can occur at the reservoir, cylinder, or even at the steering wheel itself. If you notice any leaks, it's essential to address them promptly. Tighten any loose fittings and replace any damaged hoses. If the leak persists, it may indicate a more significant issue, such as a faulty cylinder or reservoir, and professional assistance should be sought.

Fluid levels are critical in hydraulic systems. Ensure that the steering cylinder and reservoir have the correct fluid levels. Check the reservoir regularly and top it up with the appropriate hydraulic fluid if needed. The fluid level should be maintained between the minimum and maximum marks on the reservoir. Low fluid levels can lead to air bubbles, affecting the system's performance, while high levels can cause excessive pressure and potential damage. Always use the manufacturer's recommended fluid type to avoid compatibility issues.

During the inspection, also listen for any unusual noises. Hydraulic systems should operate smoothly without excessive noise. If you hear grinding, whining, or any other abnormal sounds, it could indicate internal damage or air bubbles in the system. Addressing these noises promptly can prevent further complications. Additionally, check the steering wheel's feel and response. The steering should be firm and responsive without any excessive play or sloppiness. Any issues with the steering feel may require adjusting the system's pressure or replacing worn components.

Regular maintenance and inspections are vital to keeping the hydraulic steering system in top condition. By checking for leaks, damage, and proper fluid levels, you can identify and rectify potential issues before they become major problems. Always refer to the boat's manual for specific guidelines and recommendations for your particular model. Staying proactive with maintenance will ensure a reliable and safe steering system for your vessel.

shunwild

Steering Pump Replacement: Replace worn-out pumps to ensure proper steering pressure

When it comes to maintaining a boat's hydraulic steering system, one of the critical components that often requires attention is the steering pump. Over time, these pumps can wear out, leading to reduced steering pressure and potential steering issues. Here's a step-by-step guide on how to replace a worn-out steering pump to ensure your boat's steering remains responsive and reliable.

Identifying the Problem: Before you begin the replacement process, it's essential to confirm that the steering pump is indeed the culprit. Symptoms of a failing pump include sluggish steering response, inconsistent pressure, or a complete loss of steering control. If you notice any of these issues, it's time to replace the pump.

Safety First: Before you start any work on your boat's steering system, ensure you have a safe working environment. Park the boat on a level surface, engage the parking brake, and consider using a jack to support the boat if necessary. This will prevent any accidental movement during the replacement process.

Accessing the Pump: Locate the steering pump, which is typically mounted near the steering gear or engine compartment. You might need to remove some panels or access panels to get to it. Carefully inspect the pump for any signs of damage, corrosion, or excessive wear. Look for leaks or any signs of fluid contamination, as these could indicate previous issues.

Removing the Old Pump: Once you've identified the worn-out pump, it's time to remove it. Start by disconnecting the electrical connections and hoses attached to the pump. Use the appropriate tools to loosen any bolts or fasteners securing the pump in place. Carefully lift the old pump out of its mounting position, being mindful of any fluid or debris that may spill.

Installing the New Pump: Now, you can install the replacement pump. Start by positioning the new pump in the same location as the old one, ensuring it aligns with the mounting points. Secure the pump using the appropriate fasteners, tightening them by hand first and then with a wrench to avoid over-tightening. Reattach the electrical connections and hoses, ensuring they are properly plugged and secured.

Filling the System: After the new pump is installed, fill the hydraulic steering system with the correct type of hydraulic fluid. Refer to your boat's manual for the recommended fluid type and quantity. Start the engine and check for any leaks at the pump connections. If everything is secure, test the steering system to ensure proper pressure and response.

By following these steps, you can effectively replace a worn-out steering pump, ensuring your boat's hydraulic steering system operates optimally. Regular maintenance and timely replacements will help keep your boat's steering responsive and reliable, enhancing your overall boating experience.

shunwild

Hose and Lines: Inspect hoses for cracks, kinks, and replace damaged lines

When it comes to maintaining a boat's hydraulic steering system, one of the critical components to inspect and maintain is the hose and lines. These components are responsible for transmitting pressure from the steering wheel to the steering gear, allowing for precise control of the vessel's direction. Regular inspection and maintenance of these hoses and lines are essential to ensure the steering system functions reliably and safely.

The first step in inspecting the hoses and lines is to look for any visible signs of damage. Start by checking for cracks, cuts, or punctures along the length of the hose. These defects can be caused by various factors, such as age, wear and tear, or impact from debris. Inspect the hoses for any signs of kinking or bending that could restrict fluid flow. Kinks can occur due to improper handling or installation, and they may lead to reduced steering performance or even system failure.

In addition to visual inspections, it's crucial to check the hoses for flexibility and elasticity. Over time, hoses can become stiff or brittle, especially in areas exposed to sunlight or extreme temperatures. Test the hoses by gently flexing them to ensure they return to their original shape without permanent deformation. If you notice any hoses that are stiff or snap back slowly, they may need to be replaced.

Another important aspect of maintenance is to inspect the lines for any signs of corrosion or deterioration. Saltwater environments, in particular, can accelerate corrosion, so it's essential to check for any rust or oxidation on metal components within the lines. Additionally, look for any signs of wear and tear, such as frayed or damaged insulation, which could lead to leaks or system malfunctions.

If you identify any damaged hoses or lines during your inspection, it is crucial to replace them promptly. Damaged hoses can lead to reduced steering performance, leaks, or even complete system failure while operating the boat. When replacing hoses, ensure you use high-quality replacements that are compatible with your boat's make and model. Properly secure the new hoses and lines to prevent kinking or damage during installation. Regularly scheduled maintenance and inspections will help ensure your boat's hydraulic steering system remains reliable and responsive, providing a safe and enjoyable boating experience.

shunwild

Control Valves: Calibrate and repair valves to control fluid flow

Hydraulic steering systems on boats rely on precise control valves to manage fluid flow, ensuring smooth and responsive steering. Calibration and repair of these valves are crucial for maintaining optimal performance. Here's a detailed guide on how to approach this task:

Understanding the Control Valves: Begin by familiarizing yourself with the specific control valves in your boat's hydraulic steering system. These valves are typically responsible for directing fluid to different parts of the system, such as the steering gear and the steering wheel. They use pressure to control the flow, allowing for precise steering adjustments. Common types include directional control valves, pressure relief valves, and flow control valves.

Calibration Process: Calibration is essential to ensure the valves operate within the desired parameters. Here's a step-by-step approach:

  • Pressure Testing: Use a pressure gauge to measure the valve's operating pressure. Compare it to the manufacturer's specifications. Adjust the valve's pressure settings if they deviate from the recommended range.
  • Flow Rate Measurement: Measure the flow rate of the hydraulic fluid through the valve. This can be done using a flow meter. Ensure the flow rate aligns with the system's requirements for smooth steering.
  • Valve Positioning: Check the valve's positioning and ensure it moves freely without binding. Adjust any restrictive components to allow for smooth valve operation.

Repair Techniques: When repairing control valves, consider the following:

  • Leakage: If you notice fluid leakage around the valve, inspect for damaged seals or O-rings. Replace them if necessary. Ensure all connections are tightened securely.
  • Sticking Valves: If the valve feels stuck or unresponsive, it may be due to debris or contaminants. Clean the valve and its surrounding areas. Consider disassembling the valve for a thorough inspection and cleaning.
  • Internal Damage: In cases of internal valve damage, disassembly might be required. Carefully remove any worn-out components and replace them with new parts of the same specifications.

Testing and Adjustment: After repairs or calibration, thoroughly test the valve's functionality. Simulate various steering scenarios and observe the valve's response. Make fine adjustments to ensure the valve provides the required fluid flow and pressure for smooth steering.

Remember, when working on hydraulic steering systems, it's crucial to follow safety protocols and consult the boat's manual for specific instructions related to your vessel's make and model. Proper maintenance and timely repairs will ensure your boat's hydraulic steering system operates efficiently and reliably.

shunwild

Steering Wheel Adjustment: Align the wheel for smooth and responsive steering

When it comes to hydraulic steering systems on boats, ensuring the steering wheel is properly aligned is crucial for a smooth and responsive steering experience. Here's a step-by-step guide to help you with the adjustment:

Locate the Steering Column and Adjustments: Start by identifying the steering column, which is the vertical shaft that connects the steering wheel to the steering gear. Most boats have adjustable steering columns to accommodate different heights and preferences. Look for adjustment knobs or screws on either side of the column. These controls allow you to tilt and adjust the wheel's position. By turning these knobs, you can raise or lower the wheel, ensuring it is at a comfortable height for the driver.

Fine-Tuning the Wheel's Position: After adjusting the steering column, it's time to focus on the wheel itself. The wheel should be positioned directly in front of the driver, with the hub (the center part of the wheel) aligned with the driver's natural line of sight. If the wheel is too high or too low, it can cause discomfort and affect steering precision. Use the wheel's tilt adjustment, if available, to further customize its angle. This adjustment allows you to tilt the wheel forward or backward, ensuring it fits your driving style.

Tighten Bolts and Secure Components: Once you've achieved the desired alignment, secure all the components tightly. Check for any loose bolts or connections that might have come loose during the adjustment process. Tightening these fasteners ensures that the steering wheel remains stable and doesn't wobble while in use. It's essential to maintain a firm connection between the wheel and the steering gear to guarantee safe and efficient steering.

Test and Fine-Tune: After the adjustments, take the boat for a test drive or simply test the steering in the boat's cabin. Ensure that the wheel feels solid and responsive. If you notice any play or looseness in the steering, you may need to make further adjustments. Fine-tuning the alignment might require additional tightening of certain components or slight adjustments to the steering column and wheel settings.

Remember, proper steering wheel alignment is key to a positive boating experience. It ensures better control, reduces driver fatigue, and enhances overall safety. By following these steps, you can achieve a smooth and responsive steering system, making your boat handling more enjoyable and efficient.

Frequently asked questions

If you notice any of the following symptoms, it's likely time to inspect your hydraulic steering system: steering feels loose or unresponsive, the steering wheel vibrates or feels shaky, there's a noticeable delay in steering response, or you hear unusual noises from the steering gear.

Several factors can contribute to hydraulic steering issues. These include worn or damaged seals, contaminated hydraulic fluid, damaged or worn steering gear components, issues with the power steering pump, or problems with the steering column itself. Regular maintenance and fluid changes can help prevent these issues.

Start by checking the hydraulic fluid level and ensuring it's the correct type. Inspect all connections and hoses for leaks or damage. Check the power steering pump for proper operation and listen for any unusual noises. If the issue persists, it's best to consult a marine mechanic or a professional boat repair service.

While some basic maintenance tasks can be performed by boat owners, complex repairs or replacements of steering gear components are best left to professionals. Attempting to fix critical steering parts without proper knowledge and tools can be dangerous and may void any warranties.

It's recommended to have your hydraulic steering system inspected and serviced annually, or more frequently if you use your boat regularly or in harsh marine conditions. Regular maintenance includes changing the hydraulic fluid, inspecting hoses and connections, and ensuring all components are functioning correctly.
