Owning a boat comes with its own set of challenges, and one of the most common issues faced by boat owners is dealing with holes in the fiberglass. While it can be frustrating to discover a hole in your boat, it is not impossible to repair it yourself. The repair process can be straightforward, requiring just a few simple steps and some easily accessible materials, such as glass fabric, resin, and epoxy putty. This guide will provide an introduction to repairing holes in fiberglass boats, covering topics such as preparing the damaged area, choosing the right materials, and executing a durable and watertight repair.

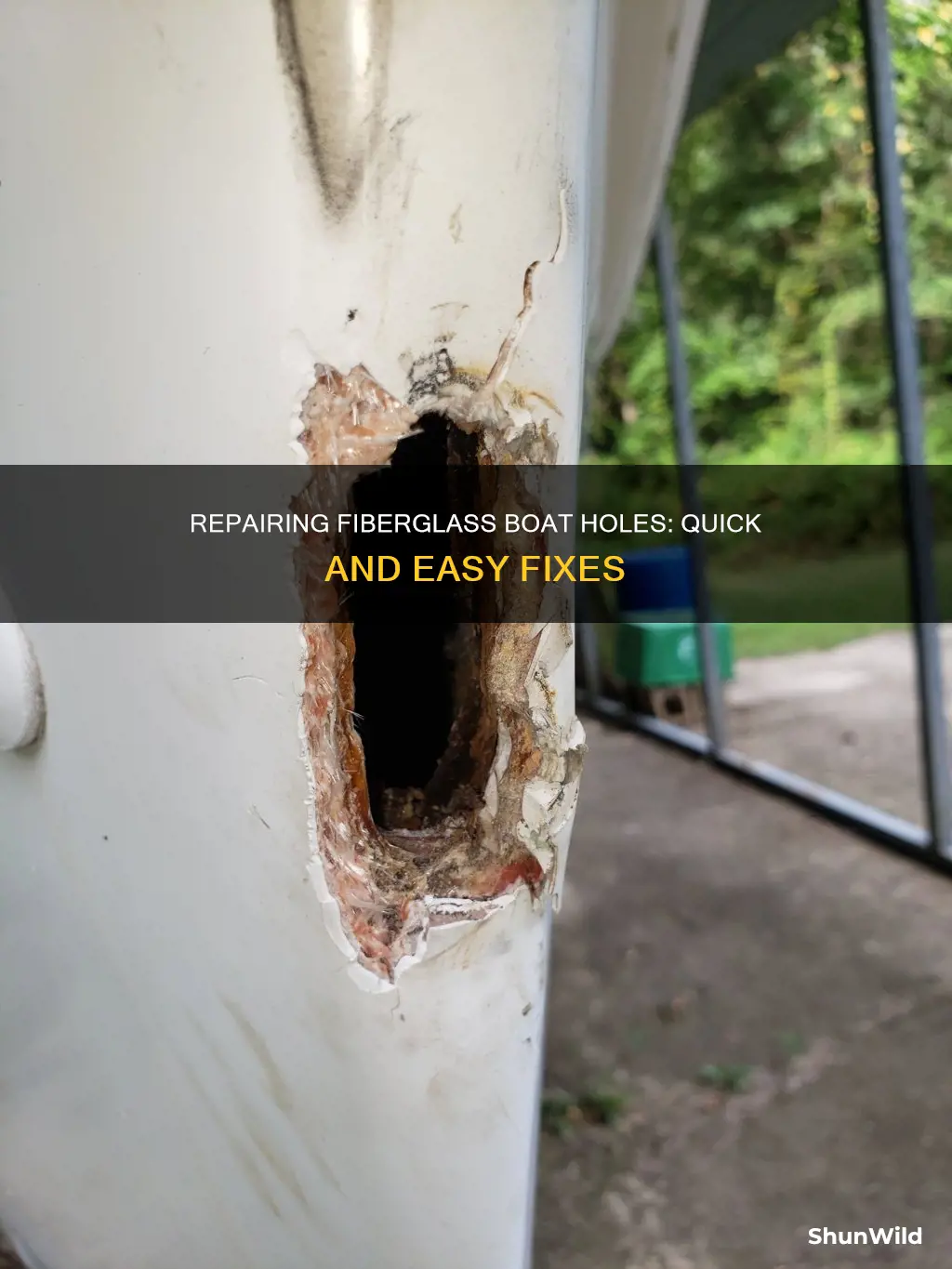

How to fix a hole in a fiberglass boat
| Characteristics | Values |
|---|---|
| First steps | Clean the area around the hole, check inside the boat to make sure nothing is in the way, and remove old laminate |
| Materials | Epoxy resin, gel coat, glass fabric, Marine Tex, vinylester resin, fiberglass repair kit, silicone caulking, marine caulk, stainless steel plate |
| Tools | Sandpaper, disk sander, screwdriver, drum sander, dremel, grinding stone, tape, clear packing tape, cardboard, catalyzed resin, plastic laminate, acrylic |
| Techniques | Sanding, beveling, filling, patching, gelcoating, fiberglass lay-up, grinding, cutting, caulking |
| Safety | Ensure good ventilation, wear rubber gloves, keep a fire extinguisher nearby |
Explore related products
What You'll Learn
Clean the area around the hole
To fix a hole in a fibreglass boat, you must first clean the area around it. This is a crucial step as it helps the patch adhere properly and prevents deterioration.
Before you begin, check inside the boat to ensure there are no objects in the way. Then, strip the bottom paint around the hole. You can use toilet bowl cleaner, oven cleaner, or acetone to remove the paint. You can also use a disk sander loaded with a 36-grit disk to grind a 12-to-1 bevel around the hole's perimeter. This will help to create a stronger repair. If there is wax on the inner surface, it is important to remove it first, as failing to do so will weaken the bond when grinding.
Once the area is clean and free of paint and wax, let it dry. You can speed up the drying process by using a fan and pointing it towards the hole. It is important to ensure the area is completely dry before proceeding to the next step, which is applying a layer of resin to the hole.
Removing Film from Boat Hulls: Effective Methods
You may want to see also
Explore related products
Use a fiberglass repair kit
If you have a hole in your fibreglass boat, it can be repaired with a fibreglass repair kit. This is probably the easiest solution, as the kit includes all the materials and directions required for a DIY project. The main task of the repair kit is to fix various fibreglass components in a car, such as body panels, hoods, bumpers, fairings, and other parts made of fibreglass material.
Before you start, it's important to take the following safety precautions: work in a well-ventilated area or wear a respirator mask to avoid inhaling resin fumes. Wear gloves to protect your hands from direct contact with the resin. Follow the manufacturer's instructions regarding the safe handling and disposal of materials. Avoid open flames or sparks in the vicinity, as some resins are flammable.
A fibreglass repair kit usually contains polyester or epoxy resin, which acts as the adhesive and bonding agent. It also includes a catalyst or hardener to mix with the resin and initiate the curing process. You will also find applicator tools like brushes, spreaders, or rollers to apply the resin and fibreglass cloth. Different grits of sandpaper may be included to sand and smooth the repaired area.
- Prepare and clean the area. Make sure you have a clean surface for good adhesion.
- Drill or grind a bevel into the repair area to enlarge the surface area.
- Cut the fibreglass cloth so that it fits over the sanded area.
- Place the cloth over the area and tape the edges with masking tape to hold it in place.
- Mix the resin and hardener in equal amounts on a piece of cardboard or another disposable surface.
- Mix the two parts until you get a uniform colour, but only use enough to complete the repair.
- Apply the mixture to the fibreglass cloth using the plastic spreader provided with your kit. Spread it evenly over the entire cloth.
- Remove the masking tape and spread the mixture over the exposed edges.
- Cover the repair with waxed paper or cellophane and leave the patch to cure. Curing times vary, so read the label to ensure you wait long enough for the repair to fully harden.
Accessing Fuel Tank on Nitro Bass Boat Simplified
You may want to see also
Explore related products
Use epoxy and gelcoat
To fix a hole in a fibreglass boat, you can use epoxy and gelcoat. This method is suitable for small holes and cracks. Here is a step-by-step guide:
Step 1: Prepare the Area
Clean the area around the hole to ensure proper adhesion of the patch. You can use a die grinder or a "V"-shaped scraper to remove any dirt, debris, or old laminate from the hole and its surroundings. If there is any paint around the hole, strip it off using a suitable solvent, such as toilet bowl cleaner or oven cleaner. Then, use sandpaper to smooth out the surface. If the hole is on a gelcoated surface, chamfer the top lip of the hole about 1/2 inch back with a countersink bit or a rotary abrasive tool.
Step 2: Apply Epoxy
Once the area is prepared, it's time to apply the epoxy. Mix a small amount of epoxy resin with a hardener to thicken it. You can use a syringe to inject the epoxy mixture into the hole, making sure to fill it completely. Alternatively, you can use epoxy putty or epoxy-saturated fibreglass to fill the hole. Let the epoxy cure completely.
Step 3: Sand and Smooth
After the epoxy has cured, you may need to sand the area to remove any excess epoxy and create a smooth surface. Use fine-grit sandpaper (100-grit or 220-grit) to sand the area, and then move to finer grits (380, 600, and 1000) for a perfect finish. This step will ensure that the gelcoat adheres properly and create a smooth transition between the repaired area and the surrounding surface.
Step 4: Apply Gelcoat
Now, it's time to apply the gelcoat. Mix a small amount of gelcoat with a catalyst, following the manufacturer's instructions. Use a clean brush to apply the gelcoat, filling the repaired area and making sure it's slightly higher than the surface. Allow the gelcoat to cure completely, usually for about 24 hours.
Step 5: Final Sanding and Polishing
Once the gelcoat has cured, you may need to do some final sanding and polishing to match the surrounding gelcoat. Use wet and dry sandpaper to sand the area smooth, starting with 220-grit and moving finer if needed. Then, buff and polish the repaired area to achieve the desired finish. If the colour has faded over time, you may need to polish the entire section for a consistent appearance.
Columbia's Final Voyage: Boblo Boat's End
You may want to see also
Explore related products
Bevel the holes with a grinding stone
When repairing a hole in a fibreglass boat, one of the steps is to bevel the holes with a grinding stone. This is done to stabilize the plugs better than just filling the holes. It is important to note that this process will involve grinding and enlarging the hole area. For a 1/4-inch hole, you will need to grind an area about the size of a dime (with a 1/16 to 1/8 border around the hole).
To bevel the holes with a grinding stone, you can use a drum sander attachment on a Dremel with 40-60 grit paper. Alternatively, a random orbital sander with a 60-grit disc can be used, as it provides more control compared to an angle grinder. If you are working on a big area, a large body grinder with a sanding pad is more suitable as it can remove a lot of material quickly. After that, finish it off with an orbital sander for a smooth finish.
If you are looking to create a large radius bevel, a sanding disk is ideal and has a lower chance of error if it slips. For major sculpting, a flexible mesh grinding/cutting wheel can be used, although it is slow and difficult to make a smooth recess with.
After beveling, the next step is to fill the hole with 3M vinyl ester filler. This will ensure that the area is as strong as it was before.
Shoes on Boats: A Recipe for Disaster
You may want to see also
Explore related products
Sand the area with fine-grit sandpaper
Sanding the area with fine-grit sandpaper is an important step in repairing a hole in a fiberglass boat. It ensures a smooth and even surface, which is crucial for achieving a strong and durable repair. Here's a step-by-step guide to help you through the process:
Begin by selecting the appropriate sandpaper grit for the job. In this case, you'll want to use fine-grit sandpaper, which is ideal for smoothing out the surface and removing any small imperfections. The grit number on the sandpaper indicates the size of the abrasive particles, with a higher number indicating a finer grit. For this task, aim for sandpaper with a grit number between 120 and 220.
Before you start sanding, ensure the area around the hole is clean and dry. This is important as it will help the patch adhere properly and create a strong bond. Once the area is prepared, you can begin sanding.
Gently sand the area around the hole with slow and steady motions. Take your time and be careful not to apply too much pressure, as you don't want to create additional damage or deepen the hole. Use a light touch and follow the contours of the surface. Work in a well-ventilated area to avoid inhaling any dust particles.
Pay close attention to the edges of the hole. You want to create a smooth transition between the original surface and the patched area. Sand with the grain of the fiberglass to achieve the best results. Take your time and occasionally step back to assess your progress, ensuring you don't over-sand any particular area.
After sanding, it's important to remove any dust or debris generated during the process. Use a soft brush or a damp cloth to wipe away any residue. This will ensure that the area is ready for the next steps in the repair process, which typically involve applying a resin or filler to the hole.
By following these steps and taking your time, you can effectively sand the area with fine-grit sandpaper, creating a smooth and even surface that will enhance the overall quality of your fiberglass boat repair.
Boat Seats: Universal Fit or Customized for Each Vessel?
You may want to see also
Frequently asked questions
Fixing a hole in a fibreglass boat is a simple process that can be done by anyone with a little knowledge about fibreglass repairs. First, clean the area around the hole and remove any old laminate. Next, apply a layer of resin to the hole and let it cure. Sand the area with fine-grit sandpaper to smooth out any rough spots. You can also bevel the edges of the hole with a grinding stone and fill the hole with a fibreglass filler, such as Marine-Tex epoxy putty or 3M vinyl ester filler. Finally, finish with a patch of glass fabric and resin to ensure a strong repair.
To fix a hole in a fibreglass boat, you will need a fibreglass repair kit that includes resin, a grinding stone or disk sander, fine-grit sandpaper, and fibreglass filler or putty. You may also need a patch of glass fabric and a gelcoat to finish the repair. It is important to use epoxy resin, as polyester resin may not adhere properly.
Yes, fixing a hole in a fibreglass boat is a repair that can be done by a boat owner. However, if the hole is large or the damage is extensive, it may be best to consult a professional boat repair service or a fibreglass shop.
The best way to fix a hole in a fibreglass boat is to follow the manufacturer's instructions for the specific products you are using. In general, it is important to clean and prepare the area properly, use the correct materials, and take the time to do the job right. Beveling the edges of the hole and using a fibreglass filler or putty will create a strong repair. Additionally, using a patch of glass fabric and resin can provide extra strength and durability.
