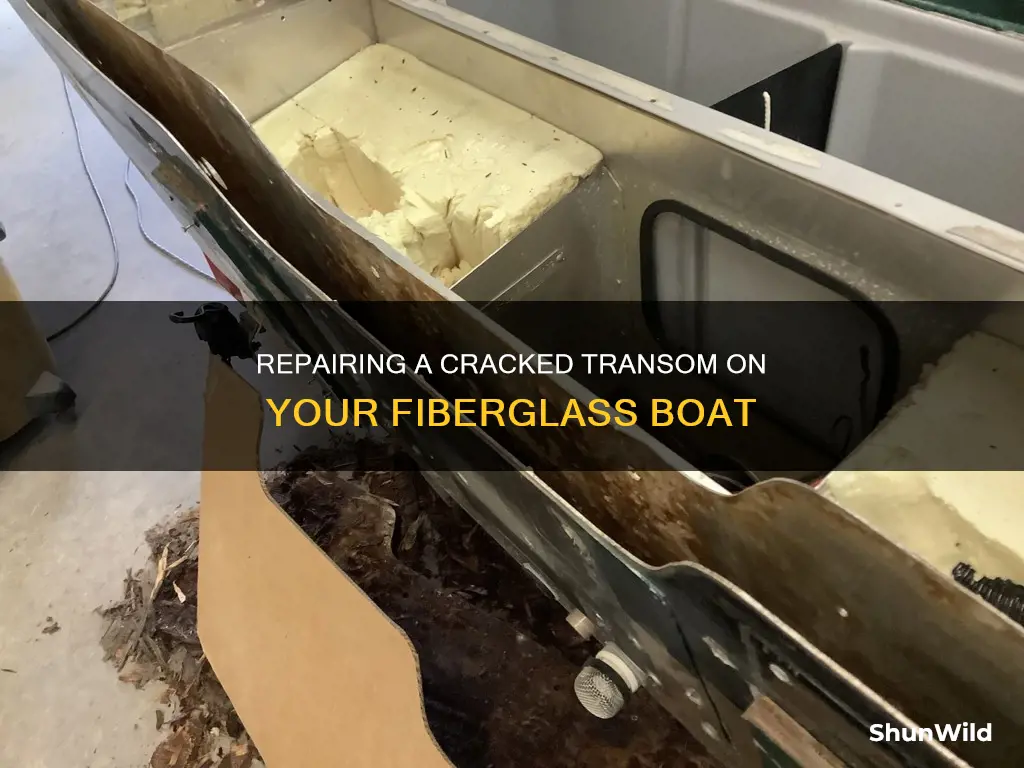

A cracked transom on a fibreglass boat can be a complex issue to fix, and it is important to first identify the cause of the problem. The transom is one of the most important structural parts of a boat, and it is often the first to go rotten. The repair process can vary depending on the extent of the damage, and it may involve cutting away the cracked area, sanding it down, and filling it with epoxy resin or a pourable compound. In some cases, it may be necessary to remove the motor and cut the top edge off the transom or reinforce it with aluminium plates. It is also important to consider the weight of the engine and the movement of the transom to prevent further damage.
Explore related products
What You'll Learn
Assess the damage
Before attempting to repair a cracked transom on a fibreglass boat, it is important to first assess the damage to understand the extent of the problem and determine the best course of action for repair. Here is a step-by-step guide to help you assess the damage:
Start by visually inspecting the transom for any signs of cracking, splitting, or other damage. Look closely at the fibreglass and gel coat to identify any areas that may be compromised. If the boat has been in storage or has not been used for a while, pay close attention to any signs of dryness or deterioration.
Next, you will need to determine if the damage is purely cosmetic or if it indicates a more severe underlying issue. Use a sharp object, such as a metal rod, to probe the wood and check for any soft spots that could indicate rot. Tap the transom with a mallet or a similar tool and listen for any changes in sound that could suggest areas of rotting wood.
If the transom is solid and there is no sign of rot, then the repair will likely be straightforward. However, if you suspect that the transom is rotten, further investigation is necessary. Carefully remove any visible screws or bolts and inspect the area underneath. Check for signs of water damage, rot, or deterioration in the wood or other materials.
Mark the cracks and monitor their progress over time. This will help you understand the severity of the damage and determine if it is getting worse. Measure the width and length of the cracks to track any changes. Take note of any changes in the appearance of the cracks, such as widening, lengthening, or deepening.
Finally, consider the weight distribution and flexing of the transom. If the boat has heavy engines, the additional weight could be causing stress on the transom, leading to cracks. Assess the transom's ability to withstand weight and pressure, especially if it has been bouncing around on a trailer or experiencing similar movement.
By following these steps, you can thoroughly assess the damage to a cracked transom on a fibreglass boat. This will help you make informed decisions about the necessary repairs and determine if you need to consult a professional for more complex issues.
Swivel Seats on Jon Boats: Installation and Benefits
You may want to see also
Explore related products
Remove the motor
To remove the motor from your fibreglass boat, you will need to enlist the help of a friend. This process will require some heavy lifting, so it is not recommended to attempt it alone.
Firstly, disconnect the fuel, oil, electrical, throttle linkage, shift linkage, and steering, and the Seastar if your boat has one. Be sure to remove the Seastar from the motor without disconnecting the hydraulic lines, to avoid having to bleed the system later.
Next, you will need to create a sling out of rope or a tow-strap. Secure the sling and drop a chain over a large tree limb, then lower the trailer tongue to raise the motor. You can also use a gantry or tree branch to hitch your tow vehicle to the trailer, centring the outboard underneath. When using a gantry, ensure it is secured with through-bolts, not nails.
Now, attach a webbed strap with sufficient weight capacity to the transverse beam. Use a come-along with the strap, which will have a hook on the end to attach to the engine's lifting eye. Ratchet the come-along until there is minimal tension on the strap.
With the sling and strap in place, you can now begin to remove the motor. Run the trailer tongue jack all the way down, then put the motor all the way down. Place a 2" x 4" piece of wood under the motor skeg, then unbolt the engine. Run the tongue jack up, and the motor should now be freestanding.
Finally, slowly pull the boat forward while your assistant holds the motor and gently rocks the lower unit back and forth. This will jiggle the bolts free without damaging the mounting holes. Once complete, pull the boat clear, leaving the engine hanging in the air. Seal the transom holes with silicone to prevent moisture from entering.
Best Paint for Duck Boats: Ultimate Guide
You may want to see also
Explore related products
Cut the outer skin of fibreglass
To fix a cracked transom on a fibreglass boat, you will need to cut the outer skin of fibreglass. Here is a step-by-step guide on how to do this safely and effectively:
Firstly, it is important to prioritise your safety when working with fibreglass. Fibreglass contains tiny glass fibres that can cause skin, eye, and throat irritation, as well as potentially lead to more serious respiratory issues if inhaled. To protect yourself, ensure you are working in a well-ventilated area, preferably outdoors, or with doors and windows open to reduce dust levels. Wear long sleeves and pants, thick work gloves, close-toed shoes, safety goggles, and a mask or respirator.
Now, onto the process of cutting the fibreglass:
- Prepare your workspace: Set up a sturdy work table that is clean and free of any debris or dust. Place your fibreglass panel on the table, ensuring it is securely held in place and will not wobble.
- Mark the cut: Before you start cutting, clearly mark the area you intend to cut with masking tape. This will help guide your cut and prevent chips or splinters from forming.
- Choose the right tool: The tool you use will depend on the type of fibreglass you are cutting. If you are cutting fibreglass on a roll, use shears or a utility knife. For fibreglass panels, you will need a saw. A circular saw is ideal for straight cuts, while a fine-toothed jigsaw is better suited for curved cuts.
- Cut the fibreglass: With your chosen tool, carefully start cutting through the marked area. Take your time and work slowly to ensure a precise cut. If using a saw, always push the saw forward and avoid pulling it back towards yourself to reduce the risk of accidental cuts.
- File the edges: Once you have finished cutting, use a fine-toothed mill file to clean up the edges. Remove any flaws or splinters created during the cutting process by pushing the file down on the edge of the cut fibreglass. Do not pull up on the file as this can damage the surface.
- Dispose of waste properly: Fibreglass waste should be disposed of responsibly. Vacuum the area to remove any dust or debris, and place all waste in a sealed bag. Ensure you also wash your clothes and take a shower immediately after to remove any residual fibreglass particles from your body.
Remember, always prioritise your safety when working with fibreglass, and take the necessary precautions to avoid any potential health risks associated with this material.
Jump-Starting a Boat: A Step-by-Step Guide
You may want to see also
Explore related products
Fill the void with epoxy resin
Filling the void with epoxy resin is a commonly used method for repairing a cracked transom on a fibreglass boat. This method is simple and effective, and can be done by following these steps:
First, remove the motor and cut the top edge off the transom. Carefully cut the outer skin of fibreglass, about 2 inches from the edge. Next, dig out the rotten plywood or wood from the transom. It is important to ensure that all the rotten wood is removed and that the transom is solid before moving on to the next step.
After the rotten wood has been removed, fill the void with epoxy resin. One way to do this is to mix a batch of Layup & Laminating Resin, which can be extended by adding sawdust. Pour this mixture into the transom, and at the same time, drop in your wood. The wood will settle, and you can then continue adding the resin mixture until it fills the vacancies around the wood and reaches a level near the top of the transom. Allow a couple of days for the resin to cure and harden.
To finish off the repair, create a paste from sawdust and Layup & Laminating Resin, and spread this paste with a putty knife across the inside top of the transom. This type of resin is ideal as it is slow-setting and flexible when cured. The use of wood also helps to reduce costs, as epoxy resin can be expensive.
The epoxy resin repair method is a cost-effective and reliable way to fix a cracked transom on a fibreglass boat. With the right materials and careful preparation, this process can ensure that the transom is strong and protected from future rot or damage.
Understanding Marketable Title for Boat Ownership
You may want to see also
Explore related products
Reinforce with aluminium plates
If you're looking to repair a cracked transom on a fibreglass boat, one option is to reinforce the structure with aluminium plates. Aluminium is a good choice for this application due to its reliability, light weight, and resistance to corrosion, especially in corrosive environments like seawater.
To begin the repair process, you'll need to assess the extent of the damage and determine the required size and thickness of the aluminium plates. It's important to ensure that the aluminium you choose is suitable for welding and that you have the necessary equipment and expertise for the job. The welding process must be carefully executed to avoid burn-throughs, and the weld must be protected from air and dirt contamination due to aluminium's high sensitivity.
Before starting the welding process, clean and prepare the aluminium plates and the area surrounding the cracked transom. This step is crucial to ensure a strong and durable weld. Once the welding is complete, you can move on to the next step, which involves mixing a batch of layup and laminating resin. This resin will be used to fill any vacancies and create a smooth finish.
For this step, you can extend the resin by adding sawdust to make it more pourable. Carefully pour the resin into the transom and simultaneously drop in the wood, allowing it to settle naturally. Continue adding resin until it fills the vacancies and reaches the desired level near the top of the transom. Let the resin cure for a couple of days to ensure it hardens completely.
Finally, create a paste using a mixture of sawdust and L&L Resin. Spread this paste with a putty knife across the interior top of the transom to finish it off neatly. By reinforcing the cracked transom with aluminium plates and following these resin-application steps, you can effectively repair the damage and help prevent future rot problems.
The Hazards of Idling a Diesel Boat Engine
You may want to see also
Frequently asked questions
Fixing a cracked transom on a fibreglass boat is a complex process. It involves cutting away the cracked fibreglass, removing any rotten wood, and reinforcing the structure with new wood and epoxy resin. You may also need to reinforce the transom with aluminium plates.
You will need epoxy resin, new plywood, a saw, a putty knife, and sandpaper. You may also need aluminium plates and bolts.
The cost of materials for fixing a cracked transom on a fibreglass boat can range from $200 to $300, depending on the amount and type of resin used.
To prevent a cracked transom, you can add a support structure to the transom to reduce the weight and pressure on it. You can also use a transom saver when towing or storing the boat.
