Understanding Boat Trim: Function And Mechanism

Understanding how to trim a boat is essential for optimal speed, fuel efficiency and comfort on the water. Trim refers to the angle at which the bow and stern of the boat sit in the water relative to the waterline. This angle directly impacts the vessel’s performance, including speed, fuel efficiency and ride comfort. The trim is an electronically controlled part installed on the bracket of an outboard motor, which controls the propeller’s depth of immersion and the boat’s speed according to the tilt of the base.

The trim is controlled with a toggle button on the control lever or the dash

The trim system on a boat is controlled with a toggle button on the control lever or the dash. This allows the captain to adjust the trim, which is the running angle of the boat in the water, and raise or lower the bow (the front of the boat). The trim system uses hydraulic rams to change the angle of the outboard motor or sterndrive gearcase and the propeller shaft angle relative to the boat transom through a range of about 20 degrees.

When the boat is on plane and the prop shaft is parallel to the water surface, the trim is said to be neutral or zero. In this state, all of the propeller force pushes the boat forward. The trim can be adjusted up or down from this neutral position using the toggle button. When the trim button is pressed down, the gearcase moves closer to the transom, and the propeller shaft is pointed downwards, pushing the stern down and lifting the bow. Conversely, when the trim button is pressed up, the gearcase rotates away from the transom, and the propeller shaft is pointed upwards, lifting the stern and pushing the bow down.

The trim system plays a crucial role in optimising the boat's performance, including speed, fuel efficiency, and ride comfort. By adjusting the trim, captains can control the stability of their vessel and prevent excessive movement to port and starboard, which could cause the boat to become unbalanced. Additionally, the trim system can be used to compensate for different sea conditions, such as rough or choppy waters, to ensure a smoother ride.

It is important to note that the boat's bow will move in the same direction as the trim button is pressed. Therefore, pressing the button up will raise the bow, while pressing it down will lower it. This understanding is crucial for captains to effectively control the trim and maintain the desired angle and stability of the boat.

Trim is used to control the propeller's depth of immersion

The trim is an electronically controlled part that is installed on the bracket of an outboard motor. It is used to control the propeller's depth of immersion, as well as the boat's speed and stability. The trim system can change the angle of the outboard motor and the propeller shaft angle by about 20 degrees relative to the boat transom.

When the trim is in a neutral or zero position, the propeller shaft is parallel to the water surface, and all the propeller force pushes the boat forward. In this state, the boat can reach a cruising speed by balancing speed and fuel consumption. Positive trim, on the other hand, is when the trim is fully up and out of the water, allowing the boat to reach maximum speed. However, this position can cause too much air to get under the hull, reducing speed. Negative trim is when the trim is fully down, causing the bow to dip towards the water and potentially leading to nosedives.

By adjusting the trim, captains can control the tilt of the boat and the angle of the propeller, which affects the boat's speed and stability. For example, in rough water with tailwinds, raising the trim can help prevent the boat from becoming unbalanced. Conversely, with a headwind, lowering the trim can reduce the impact of the hull on the waves.

The trim can also be used to control the boat's performance and fuel consumption. For instance, trimming up can increase speed, while trimming down can improve fuel efficiency. Additionally, the trim can be used to compensate for the weight of passengers and cargo, ensuring the boat sits evenly in the water.

Trim affects the boat's speed, fuel efficiency and comfort

Trimming a boat is an essential skill for any boater to ensure smooth sailing. It refers to the process of adjusting the boat's angle in the water, both longitudinally (front to back) and laterally (side to side). Proper trim optimizes the boat's performance, allowing it to glide smoothly through the water.

The trim of a boat has a significant impact on its speed, fuel efficiency, and comfort. By adjusting the trim, you can control the boat's speed and fuel consumption. Trimming the boat up or down changes the angle of the outboard motor and propeller, affecting the boat's speed. Positive trim, or trimming up, increases the boat's speed as the higher the trim, the higher the RPM. Conversely, trimming down reduces drag and increases fuel efficiency.

The trim also plays a crucial role in maintaining the boat's stability and comfort. A well-trimmed boat provides a smoother and more comfortable ride for passengers. It helps the boat handle waves and choppy water more effectively, reducing excessive movement and ensuring a level ride. In rough water, raising the trim can prevent the boat from losing traction and getting stuck in the waves. On the other hand, in calm conditions, a slightly upward bow angle reduces drag and allows for maximum speed and efficiency.

Additionally, the trim can be adjusted to compensate for weight distribution. The placement of passengers, gear, and fuel can impact the trim, and by redistributing weight, you can maintain the ideal balance for optimal performance.

Understanding how to use the trim effectively is key to optimizing speed, comfort, and fuel efficiency. It allows you to make automatic adjustments based on the water state and weight distribution, ensuring a safer and more enjoyable boating experience.

The trim angle directly impacts the vessel's performance

The trim angle, or the running angle of the boat, directly impacts the vessel's performance. It affects the speed, fuel efficiency, and comfort of the ride. The trim angle controls the depth of the propeller and the boat's speed. When the trim is in a neutral or zero position, the propeller is parallel to the water surface, and all the force is pushing the boat forward.

Adjusting the trim up or down changes the angle of the propeller shaft relative to the boat's transom. Trimming up tilts the engine forward, moving the propeller up and creating a force that pushes the stern down and the bow up. This is useful when you want to use the engine's full capabilities and reach maximum speed. However, it can lead to too much air getting under the hull, which can be unsafe and cause the boat to lose speed.

Trimming down, on the other hand, tilts the engine backward and levels out the boat's hull. It is useful when taking off from displacement speeds as it helps the boat rise quickly onto the plane. It is also advantageous in choppy water, as it positions the hull to slice through the water for a smoother ride.

The ideal trim position depends on various factors, including the boat's design, weather, wind, and sea state. The weight of the vessel and the water state will also affect how the trim is used to manoeuvre the boat.

Trim tabs are used to optimise the boat's performance

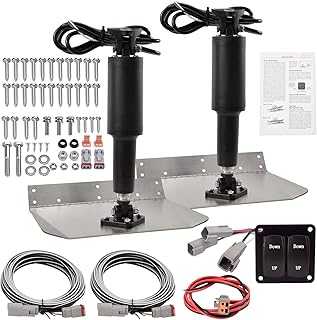

Trim tabs are an essential component of optimising a boat's performance. They are adjustable plates, usually made of metal, that are mounted on either side of the transom (the flat surface at the back of the boat). Trim tabs work in conjunction with the power trim to optimise the boat's performance. The power trim adjusts the engine angle or drive unit in relation to the transom, tilting the engine or drive up or down, which changes the angle of the propeller's thrust and affects the boat's trim.

Trim tabs are independently controlled by a panel at the helm, allowing for fine-tuned adjustments to the boat's trim. They can compensate for engine torque or unequal weight distribution, which is crucial for maintaining stability and control. By tilting the trim tabs, the water flow is deflected, creating upward pressure on the transom. This upward pressure fine-tunes the boat's trim, ensuring it runs parallel to its at-rest waterline. This parallel position is ideal for the boat's performance, speed, fuel efficiency, and ride comfort.

The trim tabs' ability to be adjusted independently is especially advantageous when the boat starts leaning due to changing sea conditions or weather. Without trim tabs, the only options to correct a lean are to move passengers and cargo or adjust the speed and route. Trim tabs provide a more efficient solution, allowing for quick and easy adjustments to maintain the desired trim and stability.

The size and type of trim tabs required depend on several factors, including the engine type, boat weight and length, and weight distribution. It is important to select the appropriate trim tabs and use them effectively to optimise the boat's performance and handling characteristics.

By utilising trim tabs, captains can fine-tune their vessel's trim, ensuring optimal performance, fuel efficiency, and a smoother ride. Trim tabs are a crucial tool for any boat operator seeking to master their craft and enhance their boating experience.
