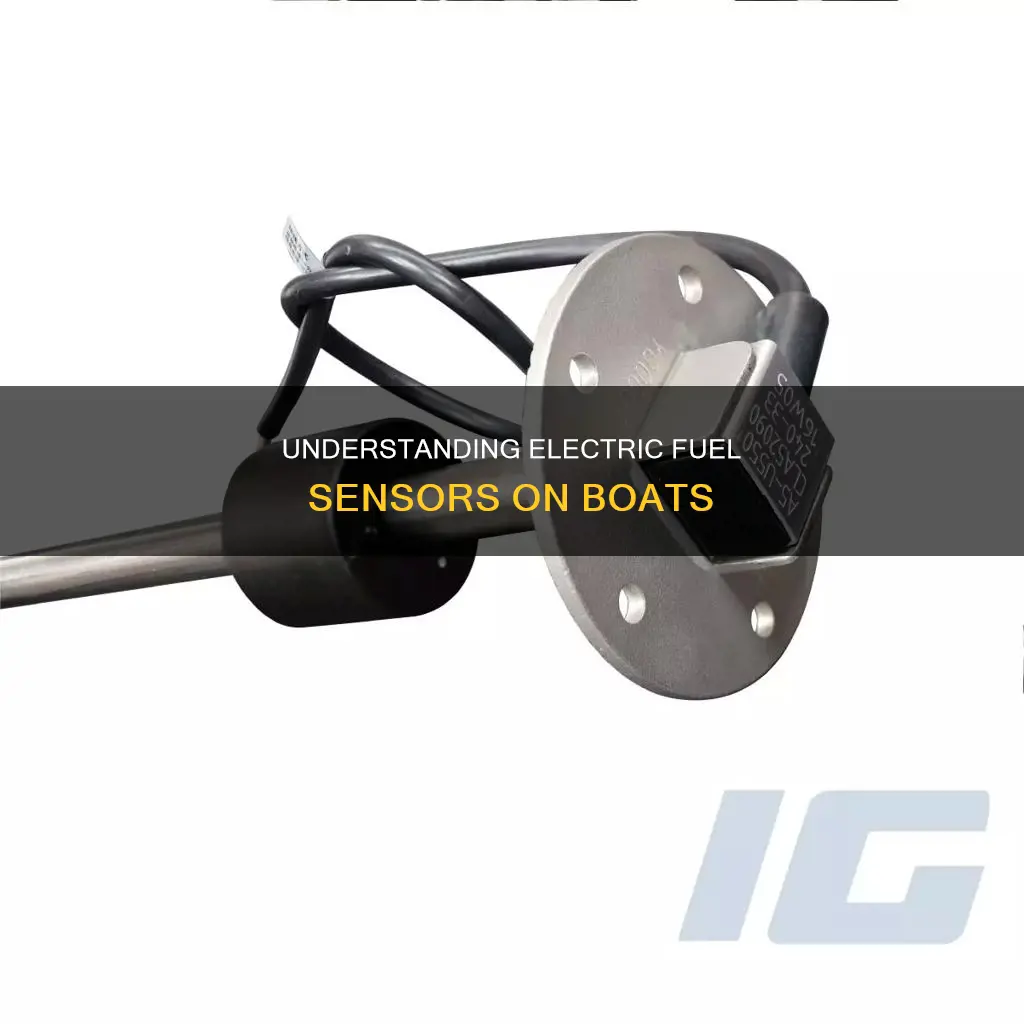

A fuel level sensor, or fuel level sender, is connected to a boat's fuel gauge by a sender wire. The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows. This can be monitored by putting an ohm meter across the two terminals on the sender. Some fuel level senders have a mechanical gauge, which allows you to see the fuel level regardless of whether the electric fuel gauge is working.
| Characteristics | Values |
|---|---|
| How it works | The fuel level sender, also referred to as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire. The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows. |
| Compatibility | Compatible with most American Standard (240 - 33 Ohm) sending units. Applicable for Cars, Trucks, Tractors, Vehicle Diesel to Match Fuel Sending Unit for Diesel Oil/ Gasoline Level Monitoring. |
| Precision | High precision. |
| Power consumption | Low power consumption. |
| Endurance | Good endurance and vibration resistance. |
| Installation | Easy to install. |
Explore related products
What You'll Learn
How to troubleshoot a marine fuel level sender
A marine fuel level sender and fuel gauge work as a unit, but sometimes the fuel gauge can give inaccurate readings, or you can run out of fuel unexpectedly, which may indicate a problem with your fuel level sender.
To troubleshoot a marine fuel level sender, first check to see if you have power from the gauge to the sending unit (black wire). The reading at the sending unit (black wire) will be less than the input voltage on the gauge (red wire). Check the sending unit ground (pink or blue wire). The pink or the blue wire must be properly grounded to a common ground or to the negative side of your battery. To check the sending unit operation, turn all power to your gauge off, and disconnect the sender wires at the sending unit (you may need to cut and reconnect the wires later).
If you do not know the liquid level in your tank, you will need to remove the sending unit from the tank. Once the sending unit is removed, slide the float up and down, and verify the readings with an ohmmeter. You may be able to fix your issue by replacing faulty wires. If not, it’s time for a replacement. Marine fuel level senders do not last forever, and lesser quality ones will likely fail sooner than others.
The sending unit in the tank moves with the fuel level. Locate the sending unit at the top of the fuel tank. It’s a small round plate with two wire connections. The sender changes resistance (ohms) variably as the float moves from full (up) to empty (down). Changes in resistance move the gauge needle.
Boat Dealers: Registration and Paperwork Handled with Care
You may want to see also
Explore related products
How to check a fuel sender
A fuel level sender, also referred to as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire. The fuel level sender is part of a unit that includes the fuel gauge, but the two components can be diagnosed and replaced separately.
To check a fuel sender, you can put an ohm meter across the two terminals on the sender and see what you get. You can also check the range without removing the sender by checking the reading on an empty tank, and then monitoring it as you fill the tank. The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows.
If you have a mechanical fuel sender with an electronic conversion capsule installed, you can test the conversion electric capsule by connecting a DVM to the two leads coming out of it.
If you feel like your boat’s fuel gauge is giving inaccurate readings, or you run out of fuel unexpectedly, you might have a problem with your fuel level sender.
The Owner of Titan Explorer: Captain Sig Hansen
You may want to see also
Explore related products
How to test a marine fuel sender
A marine fuel level sender and fuel gauge work as a unit, but the fuel level sender can be tested independently. The fuel level sender, also referred to as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire.
To test a marine fuel sender, you will need to clean the centre terminal with a brass or stainless steel brush and then clean the ground reference terminal in the same way. This will ensure your DVM is getting a good clean contact and no mistaken readings are made.
To test the conversion electric capsule, simply connect the DVM to the two leads coming out of it. Polarity is not important here.
You can also put an ohm meter across the two terminals on the sender and see what you get. To see the range without removing the sender, you can check it on an empty tank, and then monitor it as you fill the tank.
Waves Interacting with Boats: Exploring the Complex Hydrodynamics
You may want to see also
Explore related products
How to replace a fuel level sender
A fuel level sender, also known as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire. The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows.
To replace a fuel level sender, you should first check the fuel gauge to see the level. Document the location of the needle or percentage of the fuel level. Then, drive the vehicle until the fuel low light comes on and check the fuel gauge again. The fuel light should come on when the fuel gauge reads E. Monitor the dash for the fuel level and for any engine light to appear. If the engine light comes on after replacing the fuel gauge sender, there may be an electrical issue within the fuel system.
Next, if the breather valve on the fuel tank is non-serviceable, use a pump to check its condition. If the valve has failed, replace the fuel tank. Clean any dirt and debris around the fuel pump and sender mounting area. Remove the mounting bolts to the fuel pump and sender, then pull out the fuel pump and sender from the fuel tank and remove the rubber seal from the fuel tank. You may have to rotate the fuel sender to get the float out of the fuel tank.
Finally, install a new rubber gasket to the fuel tank and the fuel pump with the new sender into the fuel tank. Install the mounting bolts to the fuel pump and sender. Tighten the bolts hand tight then an additional 1/8 turn. Reconnect the fuel pipe and electric wires, refill the tank and check for leaks.
The Perfect Power Boat: Features and Factors
You may want to see also
Explore related products
How to install a fuel level sender
A fuel level sender, also referred to as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire. The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows.
To install a fuel level sender, follow these steps:
- Make sure all power is turned off and all devices are unplugged.
- Using a 5/16” HEX head screwdriver, unscrew the five screws from the SAE 5-hole mount in a star-shaped pattern.
- Position the new level sending unit above the tank, aligning the screw hole pattern in the mounting plate with the hole pattern at the top of the tank.
- Align the sender lead hole with the tank lead hole.
- Install the level sending unit (with the aligned gasket) by inserting the down tube into the tank. Make sure to empty the tanks of fuel and fumes before installation.
- Secure the level sending unit to the tank by tightening the mounting screws into place using a star-shaped pattern. Do not over-tighten, as this will weaken the seal.
- Once the level sending unit is installed, connect it to a gauge.
- Connect the ground (pink) wire from the sending unit to a common grounding hook-up.
- Connect the black wire from the sending unit to the gauge hook-up. If your gauge has colour-coded hook-ups, maintain this coding as you connect the sender and ground wires.
- Turn on the power to the level sending unit and gauge. Adjust the float and pay attention to the gauge. If the gauge has a reading that correlates to the position on the float, the level sending unit and gauge are functioning properly.
Charging Boat Batteries: On-Lake Strategies for Power
You may want to see also
Frequently asked questions
A fuel level sender, also referred to as a fuel level sensor or sending unit, is connected to the fuel gauge by a sender wire.
The gauge gives voltage to one side and reads the voltage that is returned to it. As the fuel level drops, the float drops with it and the resistance follows.
You can put an ohm meter across the two terminals on the sender to check the fuel level.
Yes, you can check the range on an empty tank, and then monitor it as you fill the tank.
You might have a problem with your fuel level sender. You can diagnose and replace it if needed.
