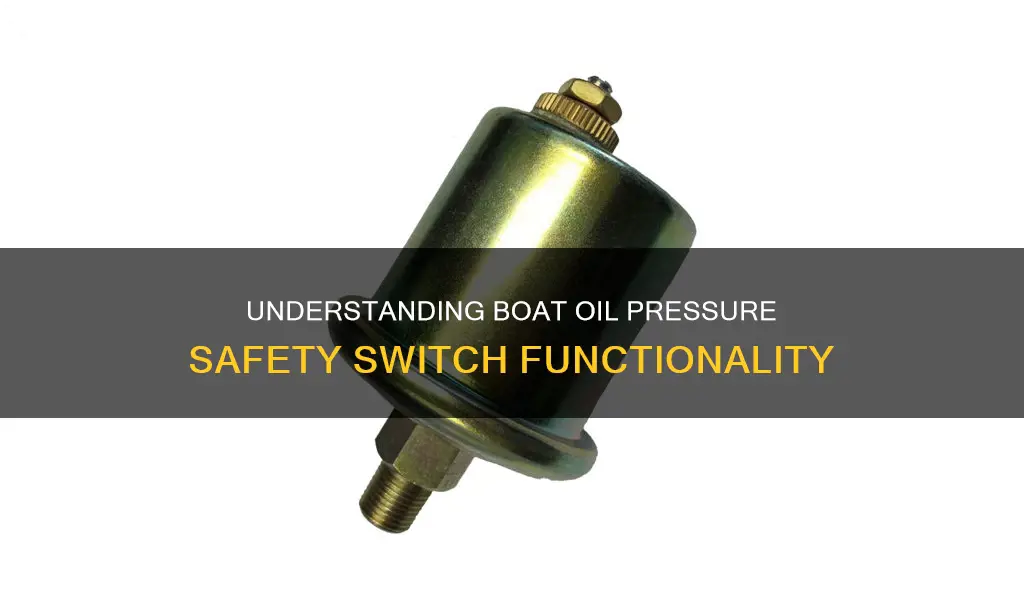

An oil pressure safety switch is an important component of a boat's engine. It is wired to the engine's oil pressure system and is designed to prevent the engine from running if there is insufficient oil pressure. When the oil pressure drops to a predetermined low level, the switch completes an electrical circuit, triggering a warning light or alarm. This can help to prevent damage to the engine and ensure the safety of the boat's occupants. In this article, we will explore how a boat oil pressure safety switch works, including the wiring process and the different types of switches available.
| Characteristics | Values |
|---|---|
| Location | Near the oil filter or engine block |
| Connection | Wired to the engine's oil pressure system |
| Activation | Diaphragm mechanism activated by changes in oil pressure |
| Function | Completes an electrical circuit when oil pressure reaches a predetermined low level, triggering a warning light or alarm |
| Wiring | Two terminals and wires in series with ignition "Ign" voltage |
| Operation | When the engine starts and oil pressure rises, the safety switch closes and provides power to the injectors |
Explore related products
$15.98
What You'll Learn
- The oil pressure safety switch is wired to the engine's oil pressure system
- The switch consists of a diaphragm mechanism that is activated by changes in oil pressure
- When the oil pressure reaches a predetermined low level, the switch completes an electrical circuit?
- The switch is interlocked with a time delay relay in the motor controller
- The wiring diagram for the switch
The oil pressure safety switch is wired to the engine's oil pressure system
The oil pressure safety switch has two terminals and wires in series with ignition voltage. The purple ignition wire goes to one side of the pressure switch, then turns to purple/yellow. This connects to a wire that runs from the starter solenoid to the fuel injector. When the engine is cranking, the fuel injectors receive power to fire off the engine initially. As the engine starts and oil pressure rises, the safety switch closes, providing power to the injectors from the purple ignition wire.
The oil pressure safety switch is designed to prevent engine damage due to low oil pressure. When the oil pressure drops to a predetermined low level, the switch completes an electrical circuit, triggering a warning light or alarm. This alerts the operator to the low oil pressure condition, allowing them to take appropriate action, such as shutting down the engine or checking the oil level.
In some systems, the oil pressure safety switch is interlocked with a time delay relay in the motor controller. This permits a short operating period (10 to 15 seconds) at start-up, even if the oil pressure is below the minimum required level. This feature helps to ensure that the engine can still start and run temporarily, even if the oil pressure is slightly low, providing a margin of safety and preventing unnecessary shutdowns.
Wiring diagrams and instructions for oil pressure safety switches can vary depending on the specific switch and engine configuration. It is important to refer to the manufacturer's instructions and diagrams to ensure proper installation and operation of the safety switch.
