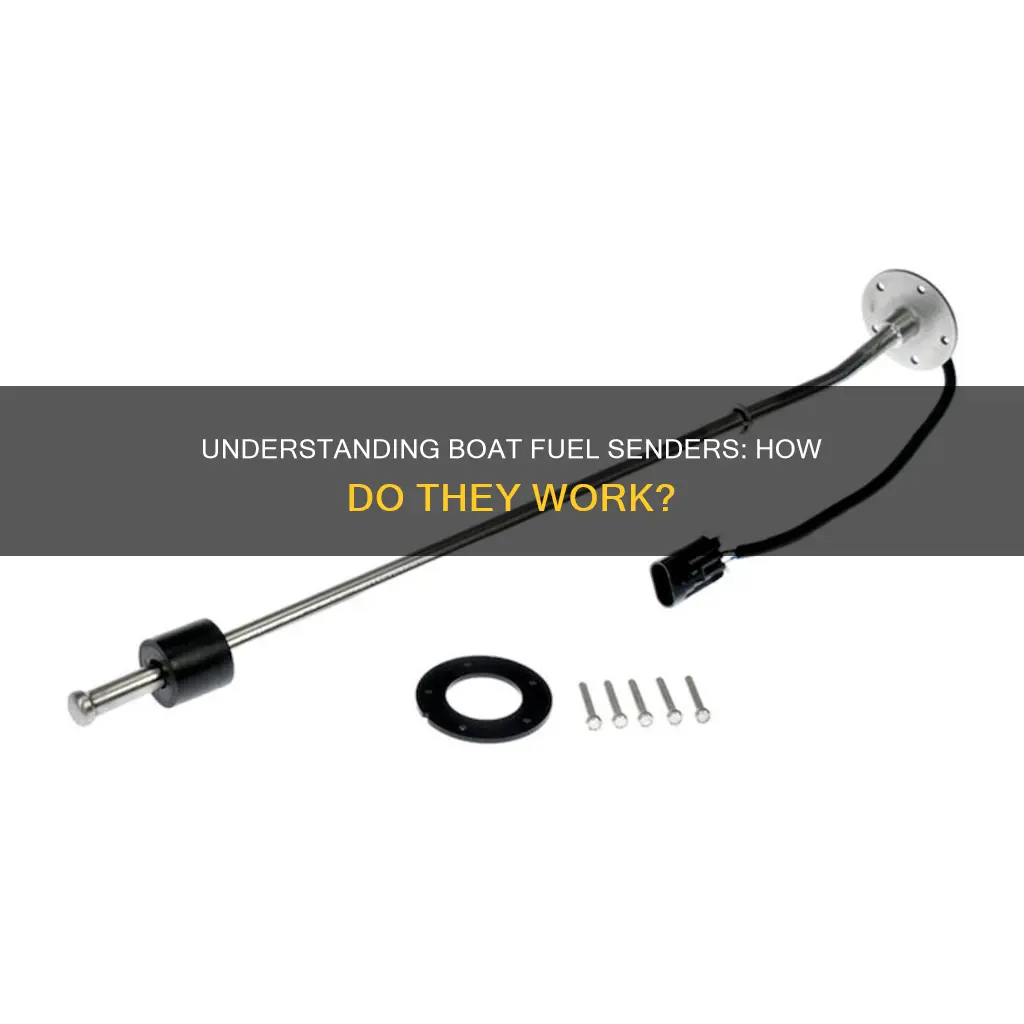

Understanding The Boat Fuel Sender: A Comprehensive Guide

A boat fuel sender is a crucial component in the fuel system of a vessel, responsible for accurately measuring and communicating the fuel level to the engine. It operates by utilizing a float or a magnetic sensor to detect the fuel's position in the tank. This sensor then sends a signal to the engine's fuel gauge, indicating the current fuel level. Understanding how this system works is essential for maintaining the boat's performance and ensuring that the engine receives the correct amount of fuel for optimal operation.

Fuel Level Sensing: The sender detects the boat's fuel level by measuring the float's position

The fuel sender, an essential component in a boat's fuel system, plays a critical role in ensuring accurate fuel level monitoring. This device operates by utilizing a simple yet effective mechanism: the measurement of a float's position. Here's a detailed explanation of how it works:

When a boat is fueled, the sender is typically installed in the fuel tank, often near the bottom to ensure accurate readings. Inside the sender, a small float is attached to a rod or arm. This float is designed to be buoyant and is made of a material that allows it to rise and fall with the fuel level. The float's movement is directly linked to the fuel's surface tension and density. As the boat's fuel level changes, the float moves accordingly.

The key to this system's functionality is the connection between the float's position and the fuel level. When the fuel level is low, the float descends, and when it's full, the float rises. This movement is then translated into a fuel level reading. The sender is equipped with a sensor or switch that is activated by the float's position. This sensor can be a simple mechanical switch or an electronic one, depending on the design. When the float is at a certain position, it triggers the sensor, sending a signal to the boat's dashboard or gauge.

The process is straightforward: as the fuel level rises or falls, the float moves, and this movement is detected by the sensor. This sensor then provides an electrical output proportional to the fuel level. For instance, when the float is at the bottom, the sensor might send a low fuel signal, and when it's at the top, it could indicate a full tank. This real-time data is crucial for boaters to manage their fuel efficiently and safely.

In summary, the fuel sender's mechanism is a simple yet ingenious way to monitor fuel levels. By utilizing a float and its position, the sender provides essential information for safe boating, ensuring that boaters are always aware of their fuel status. This system's reliability and accuracy make it a vital component in any boat's fuel management system.

Float Mechanism: A buoyant float rises and falls with the fuel level, triggering electrical signals

The float mechanism is a critical component of a boat's fuel sender system, ensuring accurate fuel level monitoring and management. This mechanism relies on a simple yet ingenious design: a buoyant float that rises and falls in response to the fuel level in the tank. Here's how it works:

The fuel sender assembly typically consists of a float, a sender unit, and an electrical circuit. The float is designed to be lightweight and buoyant, often made from materials like plastic or foam. It is strategically positioned inside the fuel tank, where it is fully submerged when the tank is full. As the fuel level decreases, the float rises due to the principle of buoyancy, where the buoyant force equals the weight of the displaced fuel. This float is connected to the sender unit, which is responsible for converting the mechanical movement of the float into electrical signals.

When the float rises, it pulls a wire or rod connected to the sender unit. This movement triggers a series of electrical contacts or a potentiometer within the sender unit. The sender unit then sends an electrical signal to the boat's engine control unit (ECU) or gauge, indicating the current fuel level. This signal is typically a voltage or current that varies with the float's position, providing a direct representation of the fuel level.

The electrical circuit ensures that the fuel sender operates reliably and accurately. It includes components like resistors, diodes, and sensors to convert the float's mechanical movement into a usable electrical output. This output is then interpreted by the ECU or gauge, allowing the boat's operator to monitor the fuel level and make informed decisions about refueling or adjusting engine performance.

This float mechanism is a cost-effective and reliable method for measuring fuel levels in boats, ensuring that the engine receives the correct amount of fuel for optimal performance and fuel efficiency. It is a simple yet effective solution that has been used in various marine applications for decades.

Electrical Connections: Wires transmit sensor data to the boat's fuel gauge

The electrical connections within a boat's fuel system are crucial for accurate fuel level monitoring and display. When a boat's fuel sender operates, it sends electrical signals that correspond to the fuel level in the tank. These signals are then transmitted through a network of wires to the boat's fuel gauge, which displays the current fuel level to the operator.

The wiring harness is a critical component in this setup. It bundles the wires that connect the fuel sender, the gauge, and any additional sensors or control units. The harness ensures that the wires are securely routed and protected from damage, as they can be exposed to harsh marine environments. Each wire in the harness is typically color-coded to correspond to a specific function, such as power, ground, and sensor output.

The fuel sender itself has a small electrical circuit that processes the fuel level data. This circuit includes a sensor element that changes its electrical properties based on the fuel level. When the fuel level rises, the sensor element moves, causing a change in the electrical signal. This signal is then transmitted through the wires to the gauge.

At the gauge, the electrical signal is interpreted and translated into a visual representation of the fuel level. Modern boat fuel gauges often feature digital displays, which provide a precise reading of the fuel amount. The gauge's internal circuitry processes the incoming signal, ensuring that the displayed fuel level accurately reflects the actual fuel quantity.

Proper wiring is essential to ensure the reliability and accuracy of the fuel gauge reading. Any damage or disconnection in the wiring can lead to incorrect fuel level indications, potentially causing the boat to run out of fuel unexpectedly. Regular maintenance and inspection of the wiring harness are recommended to prevent such issues.

Calibration: Calibration ensures accurate fuel level readings by adjusting sensor sensitivity

Calibration is a critical process in ensuring the accuracy and reliability of fuel level readings in boats. It involves fine-tuning the sensor's sensitivity to provide precise measurements of the fuel tank's contents. This process is essential because it compensates for any variations in the fuel sender's performance, ensuring that the fuel gauge reads the correct level.

The fuel sender, also known as a float or sender assembly, is a crucial component in the fuel management system of a boat. It is responsible for detecting the fuel level and sending this information to the fuel gauge, allowing the operator to monitor the fuel status. However, without proper calibration, the sensor's readings can become inaccurate, leading to potential issues.

Calibration involves adjusting the sensor's sensitivity to match the specific characteristics of the fuel sender and the boat's fuel system. This adjustment ensures that the sensor responds appropriately to changes in fuel levels. For instance, if the sensor is too sensitive, it might trigger a fuel level warning even when the tank is nearly full, causing unnecessary alerts. Conversely, a less sensitive sensor might fail to detect a low fuel level, leading to a potential fuel-related emergency.

The process typically requires specialized equipment and knowledge of the boat's fuel system. Technicians use tools like a fuel pump tester or a fuel pressure gauge to measure the sensor's output at different fuel levels. By comparing these readings with the actual fuel levels, they can identify any discrepancies and make the necessary adjustments to the sensor's calibration. This ensures that the sensor provides accurate and reliable fuel level data.

Regular calibration is particularly important for boats that operate in varying environmental conditions or those with unique fuel systems. Over time, factors like temperature changes, fuel type, and system wear can impact the sensor's performance, requiring recalibration to maintain accuracy. Proper calibration not only ensures the boat's safe operation but also helps extend the lifespan of the fuel sender and the overall fuel management system.

Fuel Gauge Display: The gauge interprets sensor data, showing the boat's fuel level

The fuel gauge display on a boat is a crucial component that provides an accurate representation of the vessel's fuel level. It works in conjunction with a fuel sender, which is a device that measures the amount of fuel in the tank and sends this information to the gauge. This process ensures that the boat's operator has real-time knowledge of the fuel status, allowing for better decision-making regarding navigation and refueling.

When a boat's engine is started, the fuel sender begins its operation. It consists of a float that rises and falls with the fuel level inside the tank. This float is connected to a mechanical or electronic sensor, which then sends a signal to the fuel gauge. The sensor's role is to convert the physical movement of the float into an electrical signal, which is proportional to the fuel level. This conversion is a critical step in providing accurate fuel readings.

The fuel gauge display is designed to interpret these sensor signals and present the information in a user-friendly manner. It typically features a needle or digital display that moves or changes to indicate the current fuel level. For example, a needle gauge might move from a full tank position to an empty one, with various stages in between to represent different fuel levels. Digital displays often show the fuel level as a percentage or a bar graph, making it easy for the operator to quickly assess the remaining fuel.

Modern boats often utilize electronic fuel gauges, which offer enhanced accuracy and convenience. These gauges can provide more detailed information, such as the total fuel capacity and even calculate the remaining range based on the boat's speed and fuel consumption rate. Some advanced systems may also include warnings for low fuel levels, ensuring the operator is alerted when it's time to refuel.

In summary, the fuel gauge display is an essential tool for boat owners and operators, providing a clear and immediate indication of the vessel's fuel status. By accurately interpreting the data from the fuel sender, the gauge ensures that boat users can make informed decisions, maintain safe navigation, and efficiently manage their fuel resources. This system is a vital component of boat safety and operational efficiency.
