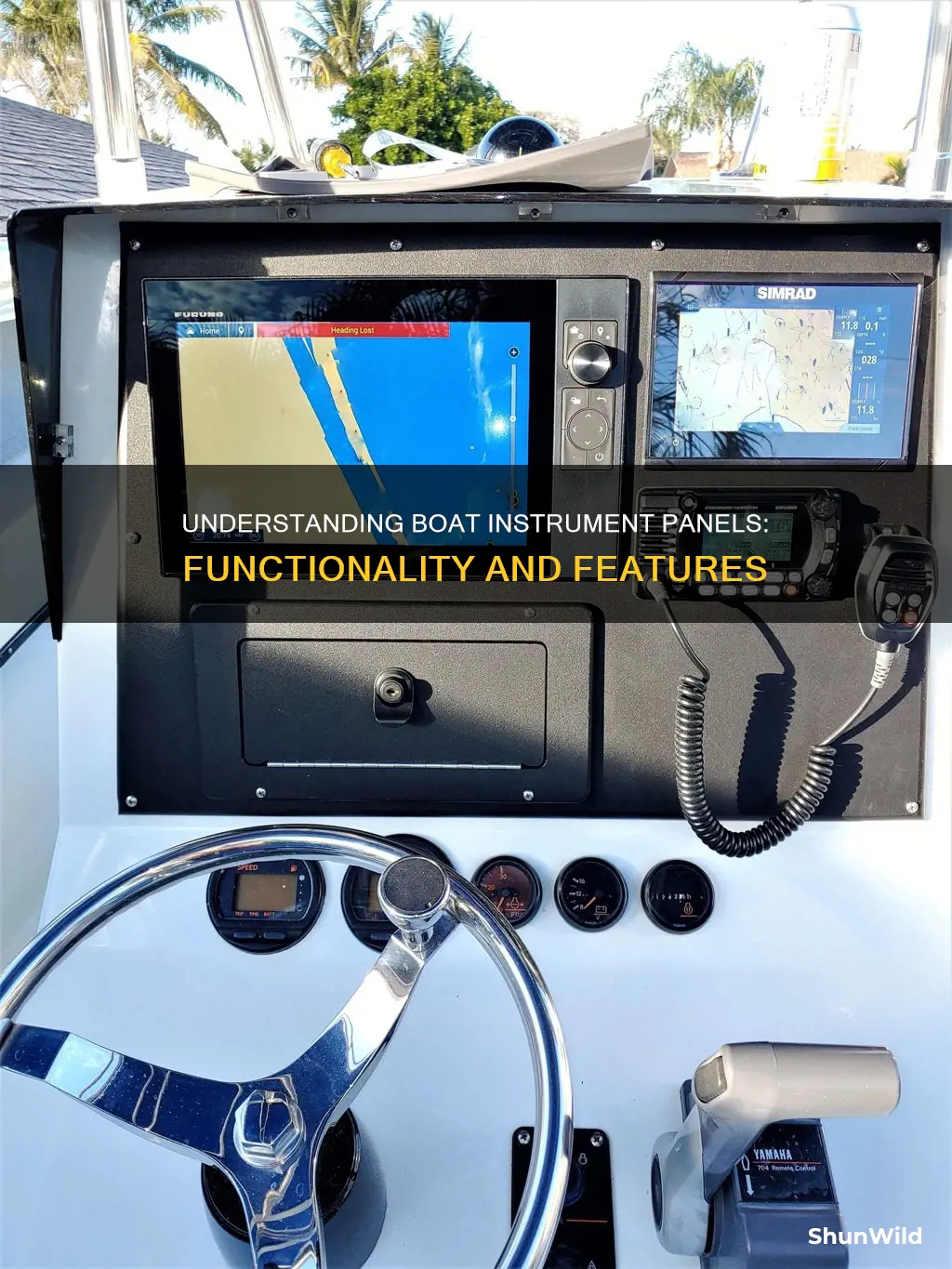

Understanding Boat Instrument Panels: Functionality And Features

Boat instrument panels are an essential component of any vessel, providing vital information to the captain during navigation. These panels are usually made from materials like aluminium, stainless steel, or wood and house a variety of instruments and controls. The instruments found on these panels can include tachometers, fuel level gauges, water temperature meters, oil pressure gauges, voltmeters, and engine warning lights. They are designed to be functional and provide key data at a glance, often with backlighting for low-light conditions. Boat instrument panels are highly customisable, with options for different colours, finishes, and even engravings. They are also available in various sizes to accommodate different boat models and can be purchased as ready-to-install replacements or custom-made to unique specifications.

Refurbishing old boat instrument panels

Refurbishing an old boat instrument panel can be a complex task, but with the right tools, knowledge, and patience, it is possible to achieve a great result. Here is a detailed guide to help you through the process:

Step 1: Assess the Condition

Before starting the refurbishment, it is important to assess the overall condition of the instrument panel. Identify any issues such as cracks, holes, or damaged components. Take note of the types of materials used, as different materials will require different repair techniques.

Step 2: Disassemble and Clean

Remove the instrument panel from the boat, taking care not to damage any surrounding areas. Disassemble the panel by removing the instruments, controls, and any other components attached to it. Clean all the individual parts, including the panel itself, to remove any dirt, grease, or corrosion. This will ensure a better adhesion for any repairs or new components.

Step 3: Repair Structural Damage

If there are any cracks or holes in the panel, use a suitable repair kit to fix them. For example, if the panel is made of ABS plastic, a product like Polyvance's PlastiFix repair kit can be used to fill and reinforce the damaged areas. Follow the instructions provided with the chosen repair kit for best results.

Step 4: Refinishing the Panel

If the panel is made of wood, such as walnut, you may need to refinish it to restore its original beauty. Start by sanding the panel to remove any roughness or imperfections. Apply a suitable varnish or finish, following the manufacturer's instructions, and sand it again if needed to achieve a smooth, glassy finish.

Step 5: Plan and Cut Apertures

Before installing new instruments, plan out their placement on the panel. Draw a template or use a measuring tape to mark the centres of the instrument holes. Using a pillar drill with a hole saw, carefully cut out the apertures for the instruments, engine warning lights, and switches. Take your time with this step to ensure accuracy and avoid any slippage.

Step 6: Seal and Protect

To protect the panel from moisture damage, seal the edges of the cut-outs with epoxy resin. This will prevent water from seeping underneath the veneer and causing damage over time. Allow the resin to dry completely before proceeding.

Step 7: Install New Instruments

Now comes the satisfying part of fitting the new instruments and switches into the panel. Carefully connect the wiring, ensuring that everything is securely attached and insulated. Test each instrument to ensure it is functioning correctly.

Step 8: Final Touches

With all the instruments in place, take a step back and admire your work. You may choose to add a frame around the edges of the panel to enhance its appearance. Install any remaining components, such as a chartplotter or chain counter, and ensure they are securely mounted.

Step 9: Testing and Calibration

Once the panel is reassembled, test all the instruments and systems to ensure they are functioning correctly. Calibrate the instruments as needed, following the manufacturer's instructions or seeking professional guidance if necessary.

Step 10: Final Inspection

Finally, give the instrument panel a thorough inspection to ensure it meets your standards and is safe to use. Check for any loose connections, test the instruments' accuracy, and ensure the panel is securely mounted in the boat.

Remember that costs for refurbishment can vary depending on the condition of the gauge and the extent of the restoration required. It is always recommended to seek professional assistance if you are unsure about any part of the process.

The variety of materials used for boat instrument panels

Boat instrument panels are made from a variety of materials, each with its own unique characteristics and benefits. One of the most common materials used is aluminium, which offers a lightweight and durable solution for instrument panels. Aluminium panels can be made in varying thicknesses, typically ranging from 3mm to 5mm, and can be finished in a number of ways, including powder coating, anodizing, and oven painting. This allows for customisation and design flexibility.

Another material that is often used for boat instrument panels is stainless steel, which is known for its strength and corrosion resistance. Stainless steel instrument panels are ideal for marine environments due to their ability to withstand harsh conditions and provide long-lasting performance. Like aluminium, stainless steel panels can also be customised to fit specific requirements.

In some cases, boat instrument panels may be made from moulded resin. This material can be a good option for a perfect fit, as it can be easily shaped and moulded to match the contours of the boat. Resin instrument panels can be reinforced with epoxy and bi-axial cloth to increase their strength and durability.

For a more luxurious look and feel, real burr walnut wood can be used for boat instrument panels. This natural material provides a rich and elegant finish that is often sought after by boat owners. To protect the wood and ensure a durable surface, it is typically coated with multiple layers of polyurethane varnish, which is then lightly sanded to create a smooth, glassy finish.

Finally, boat instrument panels can also be made from ABS (Acrylonitrile Butadiene Styrene) plastic. ABS sheets are available in standard sizes and can be cut and shaped to fit specific instrument panel requirements. This material is known for its impact resistance and durability, making it a suitable option for marine applications.

The standard features of boat instrument panels

Boat instrument panels are an important feature of any vessel, providing vital information to the operator. While the specific features of a boat instrument panel can vary depending on the type and age of the boat, there are several standard features that are typically included.

One of the most important functions of a boat instrument panel is to provide information about the boat's engine. This includes gauges for engine speed, oil level and pressure, water temperature, and voltage. These gauges allow the operator to monitor the engine's performance and ensure that it is functioning within normal parameters.

Another key feature of boat instrument panels is fuel management. Instrument panels typically include a fuel level gauge, allowing operators to monitor their fuel usage and plan refuelling stops accordingly. This is especially important for longer journeys or trips to remote locations where fuel may not be readily available.

In addition to engine and fuel information, boat instrument panels also provide essential data about the boat's surroundings. This includes a speedometer, which displays the boat's current speed, and a depth finder or fish finder, which provides information about the depth of the water beneath the boat. This is crucial for navigation and ensuring the safety of the vessel.

Boat instrument panels also often include a variety of switches and controls that allow the operator to control various functions of the boat. These can include switches for lighting, bilge pumps, and other electrical systems. Instrument panels may also house circuit breakers and main switches, providing easy access to these important components.

The design and construction of boat instrument panels can vary, but they are typically made from durable materials such as stainless steel, aluminium, or wood. They are designed to be functional and easy to use, with clear displays and well-organised controls. While the basic functions of boat instrument panels remain consistent, owners often customise their panels to suit their specific needs and preferences, making each panel unique to its vessel.

How to install a boat instrument panel

Installing a boat instrument panel is a complex process that requires careful planning and execution. Here is a step-by-step guide on how to install a boat instrument panel:

Step 1: Remove Old Components

Start by removing the existing half-bulkhead, instruments, controls, and panels. If there are any electrics housed in the heads compartment, be sure to disconnect and remove them as well. Once everything is cleared away, you will have a blank canvas to work with.

Step 2: Prepare the Surface

Replace any side panels and infill holes in the main panel with epoxy-coated ply infill panels, bonding them with epoxy and bi-axial cloth. Cut away any unwanted sections of the panel with a multi-tool and a bi-metal blade. Build a locker to house the circuit breaker board and main switches. Sand the surface until you achieve a smooth finish, then apply an epoxy primer.

Step 3: Refurbish the Original Instrument Panel (Optional)

If the original instrument panel is in good condition and fits well, you can choose to refurbish it. Roughen the back surface and apply a layer of bi-axial cloth and epoxy to close off the original holes. Reinforce any damaged areas in the same way, then turn it over and fill the holes with epoxy fine filler.

Step 4: Apply a Veneer Finish (Optional)

For a more luxurious look, you can apply a veneer finish to the panel. Purchase a sheet of real burr walnut and bond it to the panel using a strong contact adhesive. Apply multiple coats of polyurethane varnish, sanding between coats to achieve a smooth, glassy finish.

Step 5: Plan and Cut Apertures

Decide on the layout of your instruments and switches, and draw a plan for cutting the apertures. Use a crosshead screwdriver to mark the centres of the instrument holes, then use a pillar drill with a hole saw to cut the holes, being careful to avoid slipping. Cut the apertures for engine warning lights, switches, and instrument units using a multi-tool. Seal the edges of the cut-outs with epoxy resin to prevent moisture infiltration.

Step 6: Install New Instruments and Switches

With the panel prepared, you can now install your chosen instruments and switches. Follow the manufacturer's instructions for each component, ensuring a secure and correct fit.

Step 7: Finish and Install the Panel

Apply a finish to the helm position, such as three coats of Jotun Megagloss. Install the refurbished or new instrument panel, securing it in place. You can add a stainless steel frame to cover the edges and enhance the overall appearance. Finally, install any additional instruments, such as a chartplotter and chain counter.

Additional Tips:

• Always refer to the owner's manual or device labels for power requirements and wiring instructions to avoid damaging your electronic devices.
• Take care when connecting cables to avoid bending pins, which can lead to short circuits.
• Do not interrupt data transmission between devices and a computer. Always let the upload or download finish before disconnecting.
