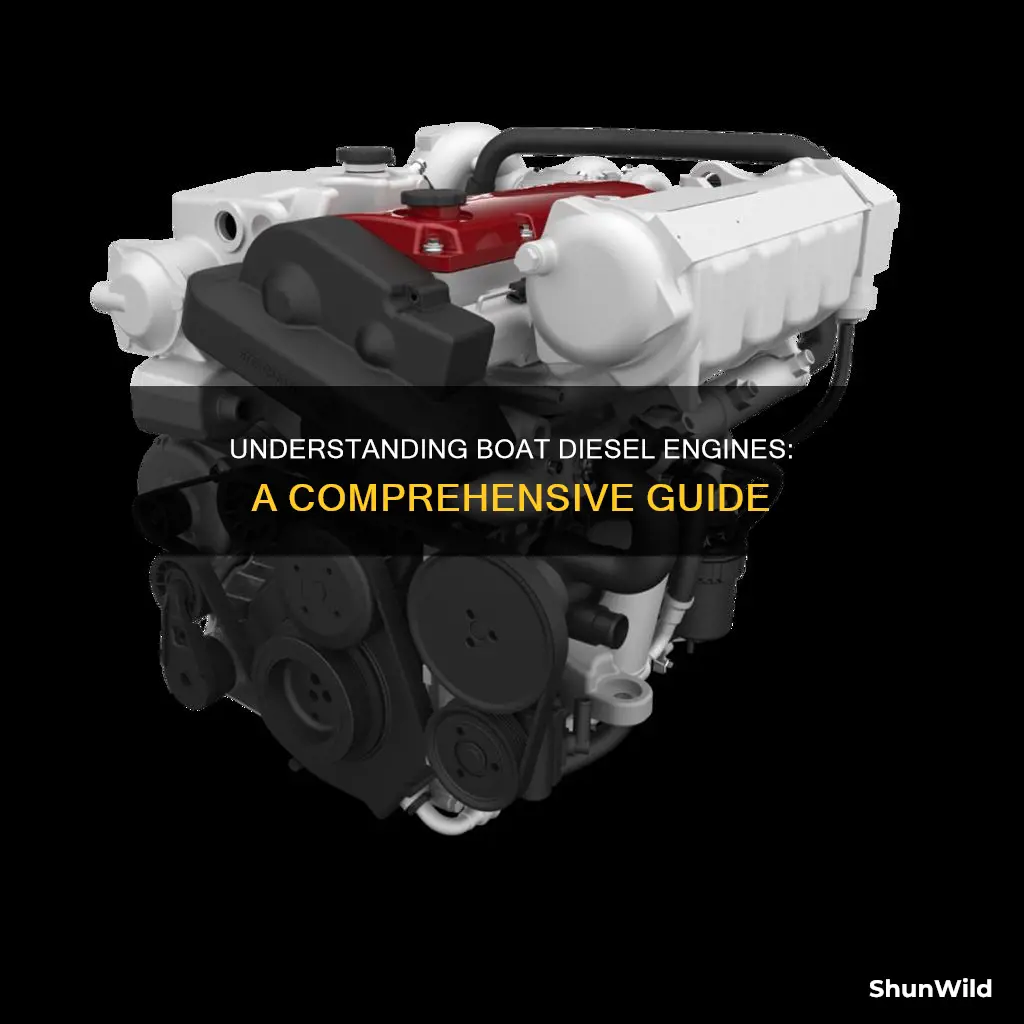

Understanding Boat Diesel Engines: A Comprehensive Guide

The diesel engine has been a workhorse of industry since its invention in 1892-3 by Rudolf Diesel. Within a century, the world went from sailing ships to steam power, and then to the marine diesel engine. Today, most modern vessels are powered by marine diesel fuel.

The first marine diesel engines were built in 1903, but the MS Selandia was the first fully diesel-powered ship, launched in 1912, just in time for World War I. Marine diesel vessels were far more efficient, able to travel further, and required less maintenance and space than steam-powered ships.

A diesel engine works by trapping air in an enclosed cylinder with a piston, which then rises and compresses the air. As the air is compressed into a small space, it heats up to a very high temperature, and diesel fuel is injected under high pressure. The fuel ignites when it comes into contact with the hot compressed air, and the resulting expansion of gases pushes the piston back down to the bottom of the cylinder, creating a powerful force that drives a crankshaft. This is known as the four-stroke cycle.

Marine diesel engines don't need spark plugs or ignition systems

Marine diesel engines, like all diesel engines, do not require spark plugs or ignition systems. This is because diesel engines use a different combustion process to ignite the fuel.

During the suction process, only air enters the engine cylinder. This air is then compressed to an extremely high temperature and pressure, causing it to spontaneously ignite the atomized diesel fuel injected into the combustion chamber. This process is known as compression ignition, and it eliminates the need for spark plugs or ignition systems.

The absence of spark plugs and ignition systems simplifies the design and maintenance of the engine and reduces the risk of ignition failure or misfire. It also allows for higher compression ratios and leaner air-fuel mixtures, resulting in improved fuel efficiency and engine performance.

However, this method of combustion requires higher-quality fuel than gasoline engines. Diesel fuel must have a high cetane number, which measures its ability to ignite under compression. If the cetane number is too low, the fuel may not ignite properly or may cause knocking or detonation, which can damage the engine.

Overall, the unique combustion process of diesel engines, including marine diesel engines, eliminates the need for spark plugs and ignition systems, offering advantages such as increased fuel efficiency, simplified maintenance, and reduced risks of ignition failure.

Diesel engines work via a four-stroke cycle

The four strokes of the piston are induction, compression, power and exhaust. In the first stroke, a piston traps air in an enclosed cylinder, then rises up the cylinder and compresses the air. This compression causes the air to heat up to a very high temperature of about 600ºC.

In the second stroke, diesel fuel is injected under high pressure into the small space. The third stroke occurs when the fuel ignites upon contact with the hot compressed air, causing an expansion of gases that pushes the piston back down to the bottom of the cylinder. This creates a powerful force that drives a crankshaft.

Finally, in the fourth stroke, the piston is pushed back up the cylinder and the exhaust gases escape through an exhaust valve. The cycle then begins again with the induction stroke.

The four-stroke cycle is a key principle of diesel engines, and understanding it can help boat owners diagnose problems and make decisions about maintenance and repairs.

Diesel engines are heavier than petrol engines

Marine propulsion is the mechanism or system used to generate thrust to move a watercraft through water. In modern times, most ships use a reciprocating diesel engine as their prime mover due to their operating simplicity, robustness, and fuel economy compared to most other prime mover mechanisms.

The higher compression ratio in diesel engines also results in a higher power-to-weight ratio compared to petrol engines. Additionally, diesel engines have higher thermal efficiency, produce high torque, and have lower operating speeds.

The basic principle of a diesel engine is less complex than that of a petrol engine. A piston traps air in an enclosed cylinder, rises up, and compresses the air. This compression of air increases its temperature to about 600ºC. Diesel fuel is then injected under high pressure, igniting upon contact with the hot compressed air. The resulting expansion of gases pushes the piston back down, creating a powerful force that drives a crankshaft. This is known as the four-stroke cycle, consisting of induction, compression, power, and exhaust.

The simplicity of the diesel engine results in fewer faults and lower maintenance costs than petrol engines. This makes diesel engines a popular choice for marine propulsion, especially in larger merchant ships, which often use slow-speed, two-stroke, crosshead diesel engines, or medium-speed, four-stroke, trunk engines.

Turbocharged diesel engines are lighter

A turbocharged diesel engine uses compressed air before fuel injection, which is what sets it apart from a naturally aspirated gasoline engine. The engine's waste exhaust gases are used to drive the turbine wheel connected to the compressor wheel. The compressor then takes in air through air filters and passes it along to the engine. The exhaust gases exit the vehicle through a catalytic converter, which removes carbon monoxide, nitrous oxides, and other pollutants before venting.

The use of a turbocharger results in several advantages, including improved fuel efficiency, performance, and torque output. Turbochargers also allow for higher towing capabilities and are more environmentally friendly.

Marine diesel engines are more efficient than steam engines

A diesel engine works as follows: A piston traps a quantity of air in an enclosed cylinder, then rises up the cylinder and compresses the air. As the air is compressed into a small space, it heats up to a very high temperature of about 600ºC. Diesel fuel is then injected under high pressure into the small space. The fuel ignites when it comes into contact with the very hot compressed air. The resulting expansion of gases pushes the piston back down to the bottom of the cylinder, creating a powerful force that is used to drive a crankshaft.

The first advanced mechanical means of marine propulsion was the marine steam engine, introduced in the early 19th century. During the 20th century, it was replaced by two-stroke or four-stroke diesel engines, outboard motors, and gas turbine engines on faster ships. Marine diesel engines offer greater efficiency than steam turbine engines, but for many years had an inferior power-to-space ratio. The advent of turbocharging, however, hastened the adoption of diesel engines by permitting greater power densities.

The size of the engine is an important factor in selecting what will be installed in a new ship. Slow-speed two-stroke diesel engines are much taller, but the footprint required is smaller than that needed for equivalently rated four-stroke medium-speed diesel engines. As space above the waterline is at a premium in passenger ships and ferries, these ships tend to use multiple medium-speed engines, resulting in a longer, lower engine room.

The more space taken up by equipment in the engine room, the less space is available for transporting goods. This is why diesel electric plants are popular, along with a few other key aspects. Diesel engines can be up and running in a few minutes, whereas steam turbines take much longer – sometimes hours. Additionally, scaling diesel engines is just a matter of adding cylinders, which is not as easy to do with a turbine.
