Understanding Boat Electrical Panels: A Guide To Their Functionality

A boat's electrical panel is a crucial component, controlling and protecting the power flow to various devices and circuits on the boat. Known as a distribution panel, it serves as a centralised hub, ensuring the safe and efficient distribution of electrical power. The panel usually consists of individual breakers or switches that correspond to specific circuits or devices, allowing for easy control and troubleshooting. This article will explore the functionality, components, wiring and safety features of boat electrical panels, as well as customisation options and the process of selecting and installing the right panel for your vessel's needs.

Choosing a switch panel

• Size of the panel: The size of the panel should be proportional to the size of your boat and the number of systems it has. It's always good to choose a panel with several additional switches to allow for future accessories.
• Waterproof and marine-rated: Ensure that the switch panel is rated for marine use and is waterproof, especially if it will be exposed to the elements.
• Switch styles: You can choose from various switch styles, including rocker switches, toggle switches, and push-buttons. Rocker switches are multifunctional and commonly used for the main power supply, while toggle switches are simple and convenient. Push-button switches are modern and have built-in circuit protection.
• Illumination: Most switch panels are illuminated, which is helpful to see which switches are activated. You can also choose the backlight colour, with blue, white, and red being common options.
• Breakers or fuses: You can opt for a switch panel with breakers or fuses. Breaker panels are more convenient as they allow for easy resetting, but they have a set number of amps. Fuse panels offer more flexibility in amp sizes but need to be replaced when blown.
• Multi-position switches: Consider how many multi-position switches you need. For example, if you want your running and anchor lights on a single three-position switch, you'll need a three-position switch on the panel.
• Cost: Finally, consider the cost of the panel. Different types of switches can significantly impact the overall price of the panel.

When installing a new switch panel, always follow the manufacturer's recommendations and adhere to the American Boat and Yacht Council (ABYC) standards for safety.

Wiring and safety features

Wiring a boat switch panel is a critical process that ensures the proper functioning and safety of the boat's electrical systems. Here are some detailed instructions and safety features to consider:

Wiring Process:

• It is important to start by disconnecting the boat's battery to ensure safety. Wear protective gear, such as gloves and eyewear, and prepare a suitable workspace.
• Connect the positive wires by running a positive wire from the battery to the switch panel. It is recommended to add a fuse or breaker in between to protect against potential overloads. Marine-grade wires are ideal as they resist corrosion.
• Ground the negative wires by attaching them to a common grounding point, typically a bus bar or grounding terminal, for safe electrical flow distribution.
• Connect each switch on the panel to the corresponding device on the boat by linking the positive terminal of each device to its switch. Follow a wiring diagram to ensure accuracy and double-check your work.
• Once all connections are secure, reconnect the battery and test each device to confirm their functionality. If any issues arise, recheck the connections and ensure all components are secure.

Safety Features and Best Practices:

• Always use marine-grade wires and connectors to prevent corrosion and ensure durability. Regular automotive-grade components are not designed to withstand the moisture and salt exposure in marine environments.
• Label your wires to save time during future troubleshooting. Use heat-shrink labels or a permanent marker for clear identification.
• Follow a wiring diagram for your specific boat model to avoid guesswork and ensure correct connections. Generic boat wiring diagrams can also be found online if needed.
• Keep wires organized using cable ties or conduits to create neat bundles, reducing the risk of errors and making the system easier to manage.
• Regular maintenance is vital. Check connections for corrosion, test boat switches and indicators, and inspect wiring and fuses for any signs of wear or damage, replacing parts as necessary.
• Choose the right size fuse or breaker for your boat switch panel based on the current load of connected devices and the wire gauge used. As a rule of thumb, select a fuse or breaker that matches the maximum current rating of your wiring or slightly exceeds the expected load to prevent frequent tripping.
• Do not connect bare wire ends directly to terminals. Always use ring or spade connectors attached to accessory wire ends, and ensure they are crimped for a secure connection.
• Protect connections with waterproof heat-shrink tubing to safeguard against corrosion and vibration-induced damage.

Functionality and components

A boat switch panel is the control centre for a boat's electrical systems. It is where you manage everything from navigation lights to bilge pumps, making it crucial for safety and functionality on the water. The boat switch panel allows you to control the electrical circuits on your boat. It typically includes a series of switches or buttons, each linked to a specific device or function. These might include:

• Navigation and deck lighting: Ensuring visibility in low light conditions.
• Bilge pumps: Keeping water out of the boat to prevent sinking.
• Electronics: Powering devices like GPS units, fish finders, or entertainment systems.
• Auxiliary power: For additional equipment like refrigerators or special lighting.

Each switch on the panel is connected to an electrical circuit that can be activated or deactivated independently, allowing for precise control over the various systems.

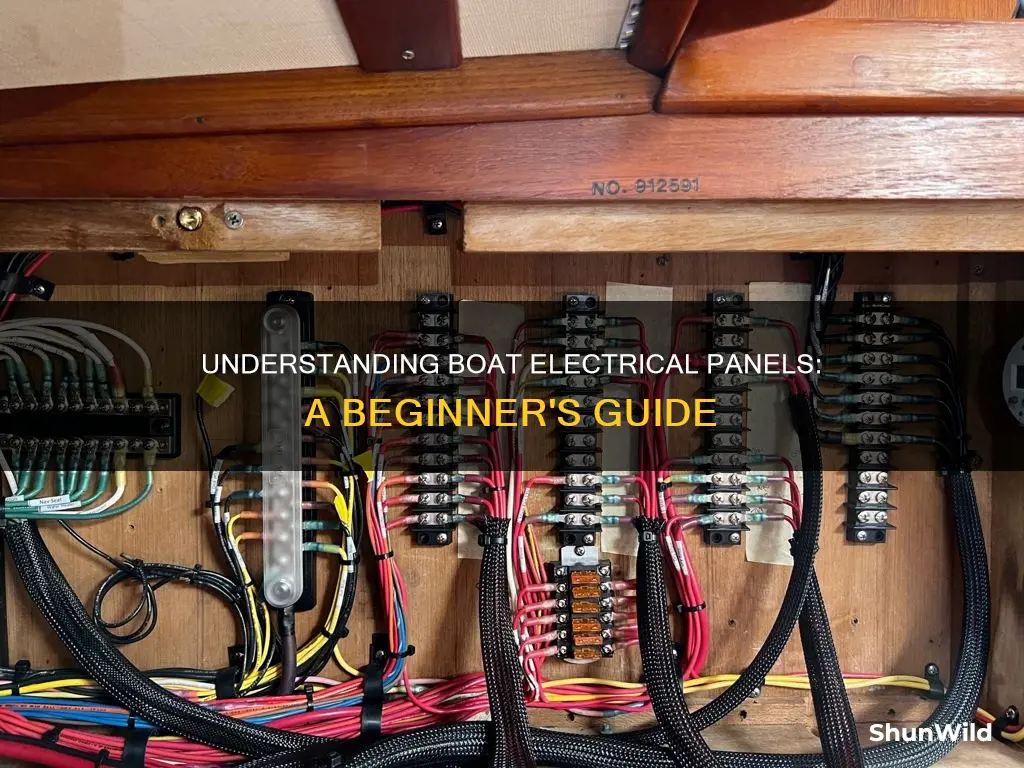

The wiring behind the panel is organised into a harness that connects to the boat's power supply (usually batteries) and then branches out to individual components. Fuses or circuit breakers are integrated into the wiring to protect against overloads, and correct grounding is essential to prevent electrical shocks and ensure safe current flow.

Boat switch panels are designed to withstand harsh marine environments. They are typically waterproof, corrosion-resistant, and made from durable materials like reinforced plastics or metals.

Getting power to the panel

Step 1: Understand the Basics

Before you begin, it's important to know that the boat switch panel is the control centre for your boat's electrical systems. It allows you to manage everything from navigation lights to bilge pumps, making it essential for safety and functionality on the water. The panel typically includes switches or buttons, each linked to a specific device or function.

Step 2: Disconnect the Battery

Safety should always be the top priority when working with electrical components. Make sure you have the necessary safety gear, including gloves and protective eyewear, and ensure your workspace is clear and well-organised. Start by disconnecting the boat's battery to prevent any accidents.

Step 3: Connect the Positive Wires

Take a positive wire from the battery and run it to the switch panel. It is recommended to add a fuse or breaker in between to protect your system from potential overloads. Marine-grade wires are ideal as they resist corrosion much better.

Step 4: Ground the Negative Wires

Every boat's electrical system requires proper grounding. Attach the negative wires to a common grounding point, typically a bus bar or a grounding terminal, which safely distributes the electrical flow.

Step 5: Connect Individual Devices

Each switch on your panel will control a different device on your boat. Connect the positive terminal of each device to its corresponding switch. It is advisable to follow a wiring diagram for this step to ensure everything is connected correctly. Take your time and double-check your work.

Step 6: Reconnect the Battery and Test

Once all the connections are secure, reconnect the battery and test your system. Switch on each device one by one to confirm they are functioning as intended. If you encounter any issues, recheck your connections and ensure all components are secure.

Step 7: Maintain and Inspect Regularly

Regular maintenance is vital to keep your boat switch panel in good working order. This includes checking connections for corrosion, testing boat switches and indicators, and inspecting wiring and fuses for any signs of wear or damage. Replace any faulty components as necessary.

By following these steps, you can ensure that your boat's electrical panel receives the power it needs to operate your boat's systems efficiently and safely.

Troubleshooting and maintenance

Troubleshooting Steps:

• Check the switches: Ensure that the proper switches are turned on, including the battery switch, the electrical panel for main DC power, and the appropriate circuit.
• Check battery voltage: Ensure the battery bank registers at least 12.0 volts. If it's below this threshold, charge the batteries.
• Test for power: Disconnect the non-functioning item from the wire and use a multimeter to check if power is reaching it.
• Inspect fuses: If there is no power reaching the item, check for a blown fuse in the wire and replace it if necessary. Refer to the documentation for the recommended fuse size to avoid using a fuse that's too small.
• Examine connections: Look for loose connections, broken or chafed wires, and corrosion on connections. Repair or clean the connections as needed.
• Test power again: After making any necessary repairs, test again to see if power is reaching the end of the wire.
• Check for blown fuses: If a breaker or inline fuse trips repeatedly, check the wiring size, amp draw, and distance from the batteries to the item. Ensure the wiring size is appropriate using a chart or calculator.
• Check for insufficient voltage: If power is reaching the item but it's still not working, check for a blown fuse in the item itself and replace it if necessary.
• Inspect for internal issues: A switch, wire, or connection inside the item may be broken or corroded. You may need to replace or repair these components.
• Verify voltage: If the item still doesn't work, the problem may lie with insufficient voltage. Check for a low-voltage trouble light or refer to the owner's manual to determine if the item has a voltage sensor.

Maintenance Tips:

• Regular maintenance: Perform regular maintenance on your boat's electrical system, including battery checks, wiring inspections, and service by qualified technicians.
• Prevent corrosion: Saltwater and moisture can cause corrosion, leading to electrical failures. Clean electrical connections regularly, apply anti-corrosion sprays or dielectric grease, and seal connections with heat shrink tubing or waterproofing compounds.
• Address wiring issues: Inspect wiring for fraying or damage, and replace with high-quality marine-grade wiring as needed. Ensure proper sizing, insulation, and secure connections.
• Maintain alternator and charger: Check connections, test voltage output, inspect belts and wiring, and monitor temperature to ensure proper functioning of these vital components.
• Resolve grounding issues: Conduct thorough inspections of electrical connections, tightening loose terminals and cleaning off any corrosion. Inspect wiring for damage and replace with marine-grade wire if needed. Ensure proper bonding of metallic components to provide a designated path for stray currents.
• Prioritize safety: When working on your boat's electrical system, always prioritize safety. Wear insulated gloves and eye protection, ensure power is disconnected, use marine-specific tools, and be cautious of electric shock hazards.
