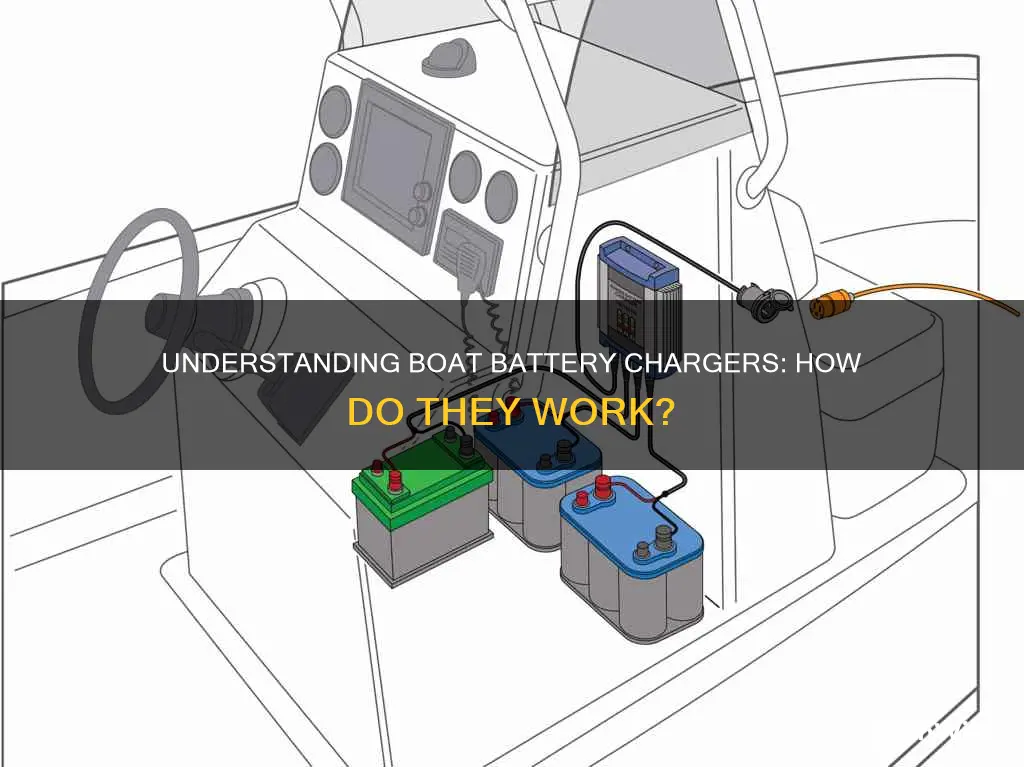

Understanding Boat Battery Chargers: A Guide To Their Functionality

Boat battery chargers are essential for maintaining the health and longevity of your boat's batteries. There are two main types: portable and onboard chargers. Onboard chargers are permanently installed on the boat and are connected directly to the boat's electrical system, allowing for automatic charging. They are typically more technologically advanced, offering multi-stage charging capabilities to prolong battery life. Portable chargers, on the other hand, are mobile and versatile but require manual connection and disconnection for each charge. The choice between the two depends on factors such as boating habits, frequency of use, and budget. This guide will explore the workings of boat battery chargers, including the charging process, battery compatibility, and important features to consider when selecting a charger.

Onboard vs. Portable Chargers

Onboard and portable chargers are the two types of boat battery chargers. The choice between the two depends on factors such as boating habits, frequency of use, and budget. Here is a detailed comparison between onboard and portable chargers:

Onboard Chargers

Onboard marine chargers are permanently installed on the boat and connected directly to the electrical system. They offer automatic charging by continuously monitoring the battery's condition and adjusting the charging rate. Onboard chargers are ideal for boaters who frequently use their boats near shore power sources or marinas as they eliminate the need to carry and connect a portable charger each time. Onboard chargers can also be left plugged in indefinitely without overcharging the battery, thanks to their float or maintenance mode feature. When selecting an onboard charger, ensure it is waterproof, corrosion-resistant, and mountable in damp locations.

Portable Chargers

Portable marine chargers are compact and versatile, allowing them to be carried on board or used on land when docked. They come in various models, including manual, automatic, and smart chargers, catering to different battery types. Portable chargers offer flexibility and mobility, making them a preferred choice for boaters who frequently venture far from shore power or marinas. They are also cost-effective compared to installing onboard systems. However, they require more setup each time you need to charge your batteries.

In summary, onboard chargers provide convenience and automatic charging, while portable chargers offer versatility and are ideal for various boating scenarios. The choice between the two ultimately depends on individual needs and boating habits.

Charging Multiple Batteries

Battery Switches:

The traditional method involves using a battery switch to select one or both batteries for charging. This is a simple and cost-effective approach but relies on the user remembering to switch between batteries. It's important to switch back to the house battery when the engine is turned off to avoid draining the starting battery.

Split-Charge Diodes:

Split-charge diodes allow current to flow in only one direction, isolating the batteries from each other. This method provides a 'fit and forget' way to charge multiple batteries independently. However, diodes cause a voltage drop, resulting in the batteries not receiving the alternator's full charge. Using a battery-sensed alternator can mitigate this issue and ensure the batteries charge fully.

Twin Alternators:

Installing an additional alternator provides a totally independent means of charging each battery. This setup offers built-in redundancy in case of a battery or alternator failure. It also ensures that the battery banks are completely isolated, preventing accidental discharge of the starting battery. However, this method requires sufficient engine power to handle the extra load.

Voltage-Sensitive Relays (VSRs):

VSRs, also known as ACRs or automatic charging relays, use a high-current relay to connect multiple battery banks when charge is available. They keep the batteries isolated when not charging. Some VSRs combine the batteries immediately upon detecting a charging voltage, while others wait until a preset voltage is reached. VSRs are particularly useful for small engines with combined starter motor and alternator wires, as they allow for both charging and starting with a single set of wiring. However, if one battery is in poor condition or has a faulty cell, it may affect the charging of the other battery.

Onboard Chargers:

Onboard chargers consist of multiple separate battery chargers (known as "banks") housed in a single casing. They allow you to charge multiple batteries simultaneously and eliminate the need for manual switching between batteries. Onboard chargers often include protection against overcharging, such as a float or maintenance mode, which automatically switches the charger off once the battery reaches its ideal state of charge. When selecting an onboard charger, ensure it is waterproof, corrosion-resistant, and compatible with the chemistry and voltage of your boat's batteries.

Alternating Current (AC) Conversion

Onboard boat battery chargers are a crucial component for any boat owner, as they help maintain the health and longevity of your boat's batteries. These chargers are designed to convert alternating current (AC) from an external power source, such as shore power at a dock, into direct current (DC) to charge your boat's batteries. This process is essential for powering various components on your boat, from trolling motors to navigation lights.

The AC conversion process in onboard battery chargers typically follows a multi-stage charging procedure. This procedure ensures that your boat's batteries are charged efficiently and safely. The first stage of this process is the bulk charging stage, where the charger delivers its maximum current to quickly replenish the battery's charge. This stage accounts for about 75-80% of the total recharge.

The second stage is the absorption stage, where the charger reduces the current while maintaining a steady voltage. This stage "tops off" the battery, providing the remaining 20-25% of the charge. This careful adjustment in the absorption stage ensures that the battery reaches its full charge without overheating or suffering any damage.

The final stage is the float stage, also known as the maintenance mode. In this stage, the charger delivers a minimal amount of current to keep the battery fully charged and prevent it from discharging. This stage can be maintained for an indefinite period, ensuring that your batteries are always ready for use when you need them.

It's important to note that onboard chargers are designed to be permanently installed on your boat and connected directly to the boat's electrical system. This provides the advantage of automatic charging, as the charger continuously monitors the battery's condition and adjusts the charging rate accordingly. Additionally, these chargers are usually more technologically advanced and can accommodate different battery types, making them a convenient and reliable choice for boat owners.

When choosing an onboard charger, it's essential to consider factors such as battery compatibility, the number of charging banks, and the charger's ability to handle the specific voltage and amperage requirements of your boat's batteries. By selecting the right charger and following the recommended charging guidelines, you can maximise the lifespan and performance of your marine batteries.

Battery Type Compatibility

When selecting a boat battery charger, it is crucial to ensure compatibility with the specific battery types on your boat. Different batteries have distinct voltage and amperage requirements, and choosing a suitable charger is essential for effective charging and maintaining battery health.

Firstly, identify the voltage of your boat batteries. Most marine batteries operate at 12 volts, but this may vary, and it is important to select a charger that matches this voltage. For instance, if you have two 12-volt batteries connected in series, the total voltage becomes 24 volts, requiring a compatible 24-volt charger.

In addition to voltage, consider the battery's capacity, measured in ampere-hours (Ah). The charger's amperage output should ideally fall between 10-20% of the battery's capacity. For instance, a 100Ah battery would be well-suited to a charger with an output of 10-20 amps.

It is also important to consider the type of batteries you are using. Modern onboard chargers are typically compatible with lead-acid batteries (both flooded and sealed), absorbed glass mat (AGM) batteries, and lithium-ion batteries. These battery types have specific voltage and current requirements, and some chargers automatically adjust their settings to cater to the specific battery type.

If your boat has multiple batteries, such as separate batteries for the motor and onboard electronics, it is beneficial to opt for a charger with multiple outputs or banks. This feature allows you to charge all batteries simultaneously without the hassle of swapping cables.

Additionally, if your boat uses different types of batteries, such as a flooded lead-acid battery and an AGM deep cycle battery, you may require a charger with separate banks specifically designed for each battery type. This ensures that each battery receives the appropriate charging conditions.

Charger Features

When choosing a boat battery charger, there are several features to consider to ensure it meets your specific needs. Here are some key aspects to look for:

• Number of Outputs: If your boat has multiple batteries, look for a charger with multiple outputs or banks. This allows you to charge all batteries simultaneously without the hassle of swapping cables. For example, a single bank charger is designed for one 12-volt battery, while a double bank charger is designed for two 12-volt batteries, and so on.
• Waterproofing: Given the marine environment, it is crucial to select a charger that can withstand splashes, humidity, and saltwater exposure. Look for chargers with an IP68 rating or higher to ensure excellent waterproofing.
• Automatic Battery Detection: High-quality chargers feature automatic battery detection, which means they can identify the type and size of the battery. This optimises the charging process and minimises the risk of user error.
• Energy Efficiency: Energy-efficient chargers reduce power consumption, saving you money and benefiting the environment. Look for models with ENERGY STAR certifications.
• Temperature Compensation: Chargers with temperature compensation adjust their performance based on the ambient temperature. This feature helps prevent issues like overheating or undercharging due to extreme temperatures.
• Multi-Stage Charging: Smart chargers, also known as multi-stage chargers, are highly recommended for boat batteries. They employ a bulk, absorption, and float charging process, optimising the charging for longer battery life and better performance.
• Compatibility: Ensure that your charger is compatible with the specific battery types on your boat, such as lead-acid, AGM, or lithium-ion batteries. Many modern chargers can automatically adjust their settings to match the battery type.
• Protection Against Overcharging: Overcharging can damage batteries and reduce their lifespan. Look for chargers with a float or maintenance mode that automatically switches off when the battery is fully charged.
