Understanding Boat Primer Solenoids: How They Work

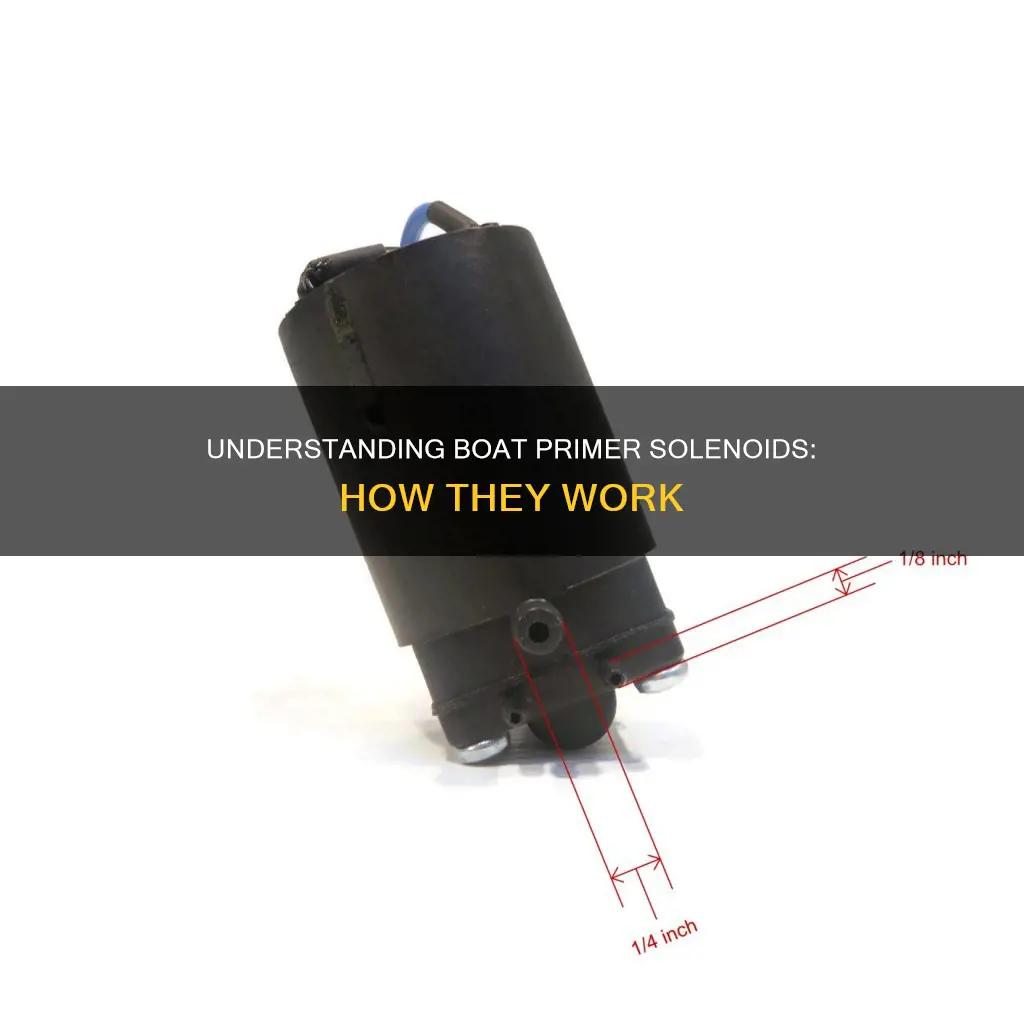

how a boat primer solenoid works

A primer solenoid is an electromagnet with a steel rod in the centre. When voltage is applied to the electromagnet, the rod opens a valve that allows pressurised fuel to pass through and be injected into the intake manifold, bypassing the carburettor. This enriches the fuel-air mix, making it easier to start a cold engine. The primer solenoid is not a pump, but a valve; the pressure comes from either a primer bulb or a fuel pump.

Characteristics Values
Function Allows pressurised fuel to pass through and be injected directly into the intake manifold, bypassing the carburetor
Mechanism An electromagnet with a steel rod in the centre; when voltage is applied, the rod opens a valve
Fuel source The pressure comes from either the primer bulb or the fuel pump
Use case Used to start a cold engine
Adjustment May need to be adjusted if the engine is running sluggishly after starting
Troubleshooting Check for voltage at the solenoid and fuel flow when disconnected from the carburettor

shunwild

The primer solenoid is an electromagnet with a steel rod in the centre

The primer solenoid is a crucial component in the starting system of a boat, particularly in older models with carburetors. It is an electromagnet with a steel rod at its centre. When voltage is applied to the electromagnet, the steel rod is attracted to the electromagnet, and this action opens a valve. This allows pressurized fuel to pass through and be injected directly into the intake manifold, bypassing the carburetor. This process is often referred to as 'priming' the engine, and it helps to ensure a smooth start, especially for cold engines.

The primer solenoid is not a pump but rather a valve; the pressure that pushes the fuel through comes from either a primer bulb or the fuel pump. When the engine is cranked, the fuel pump is activated by the movement of the pistons, creating the necessary pressure. However, if the engine is not running, the fuel pump does nothing as it relies solely on the pistons' movement. Therefore, the primer bulb is essential for creating the required pressure to get the fuel moving when starting the engine.

The primer solenoid is activated by pushing or turning the ignition key to the 'RUN' position. This action sends voltage to the solenoid, which then opens the valve. Depending on the specific boat, you may need to hold the key in this position for a few seconds to ensure enough fuel is released for starting. Once the engine is running, no more fuel will flow through the valve unless the bulb is pumped or the solenoid is activated again.

It is important to note that the primer solenoid should not be relied upon to keep the engine running smoothly. If this is the case, it indicates an issue with the fuel flow through the carburetor, which could be due to various factors such as a clogged jet or an incorrect float setting. A properly functioning primer solenoid should only be necessary for the initial fuel priming during the starting process.

shunwild

It opens a valve, allowing fuel to pass through

A primer solenoid is an electromagnet with a steel rod in the centre. When voltage is applied to the electromagnet, the rod opens a valve, allowing fuel to pass through and be injected directly into the intake manifold, bypassing the carburettor. This enriches the fuel-air mix, making it easier to start a cold engine.

The primer solenoid is just a valve; the pressure comes from either the primer bulb or the fuel pump. The bulb creates pressure in the fuel lines and fills the carburettor bowls. When the electric primer solenoid is activated, it opens a passage and fuel goes into the intake area. As the line pressure is lost, the fuel stops flowing.

If the primer solenoid is faulty, the engine may not start. To check if it is working, a voltage test can be carried out. If the solenoid suddenly stops clicking, check the jumper wire terminal for the proper voltage. If the full voltage is present, replace the solenoid.

The Ultimate Tunnel Hull Bass Boat Guide

You may want to see also

shunwild

The primer solenoid is not a pump

The pressure that the primer solenoid uses comes from either the primer bulb or the fuel pump. The fuel pump is inactive when the engine is not running because it relies on the movement of the pistons. The primer solenoid is a valve that opens a passage for fuel to flow into the intake area. When the line pressure is lost, the fuel stops flowing.

The primer solenoid is associated with "choking" the engine. In earlier engine models, choke plates, activated by solenoids, would close the carburettor throat to block airflow and force the pistons to pull more gasoline into the intake. This enriched the fuel-air mix, making it easier to start a cold engine.

The primer solenoid can be activated by pushing the key in a few times or holding it for longer periods. However, the engine can be flooded if the battery is weak, and the motor needs to turn 300 RPM with the starter to start.

shunwild

It can be manually overridden

The primer solenoid can be manually overridden by flipping the red lever up. This action bypasses the solenoid and allows fuel to pass through, enabling the engine to start. This manual override is useful when the solenoid is not functioning due to electrical issues or other malfunctions. However, it is important to note that the engine may run flooded for a short period after using the manual override.

The manual override is a useful feature when the primer solenoid is not working properly. In such cases, flipping the red lever up can help get the motor running. However, it is important to investigate and address the underlying issue causing the solenoid to malfunction. Troubleshooting steps may include checking voltage, testing connections, and verifying fuel line integrity.

It is worth noting that the manual override should be used with caution. While it can help start the engine, it may not always be necessary. In some cases, simply bumping the keyswitch primer button a few times after the engine fires up can help it settle into a smooth idle. Additionally, ensuring regular maintenance and addressing issues like varnish build-up and fuel starvation can help prevent the need for manual overrides.

The primer solenoid plays a crucial role in starting a boat's engine by allowing pressurized fuel to pass through to the intake manifold. When the solenoid malfunctions, it can lead to starting issues. Therefore, it is important to regularly inspect and maintain the solenoid, as well as the entire fuel system, to ensure reliable engine operation.

Jon Boat Insurance: Is It Necessary?

You may want to see also

shunwild

A faulty solenoid can cause engine issues

A faulty solenoid can cause a range of engine issues, from a simple fix like adjusting the idle to a more complex problem like a clogged jet. In some cases, a faulty solenoid may even result in engine damage.

One of the most common symptoms of a faulty solenoid is a clicking sound when trying to start the engine. This indicates that the solenoid is getting power from the battery but is unable to start the engine. If the starter solenoid is faulty, there may also be no sound or movement when turning the key, suggesting that the solenoid is not engaging at all. Intermittent starting issues, where the engine starts sometimes and not others, can also point to a faulty solenoid.

In the case of a boat primer solenoid, a faulty solenoid can cause engine surging or "cutting out" at any speed. This could be due to a faulty solenoid valve not allowing enough fuel to flow through the carburetor, resulting in an insufficient fuel-air mix. Adjusting the idle or cleaning the carburetor may help alleviate this issue.

Additionally, a faulty solenoid can cause flooding in the engine, especially if the battery is weak. This can lead to a sluggish engine performance and a decrease in speed.

To diagnose a faulty solenoid, it is recommended to check for power delivery, listen for clicking sounds, inspect electrical connections for corrosion or damage, and test with a multimeter. If the solenoid is found to be faulty, it is best to replace it. This typically involves disconnecting the battery, removing the starter assembly, and then replacing the solenoid before reassembling and testing the ignition.

Frequently asked questions

A boat primer solenoid is an electromagnet with a steel rod in the centre. When voltage is applied to the electromagnet, the steel rod opens the valve, allowing pressurised fuel to pass through and be injected directly into the intake manifold, bypassing the carburettor.

If you can hear the solenoid clicking when you push the key in and out, it is likely functioning correctly. You can also test the solenoid by running a jumper from the positive battery terminal to the power connection on the solenoid. If you hear a click, the solenoid is working.

If your primer solenoid is not working, you can try taking it apart and cleaning the internal filter. If that does not work, you will need to replace the solenoid.
