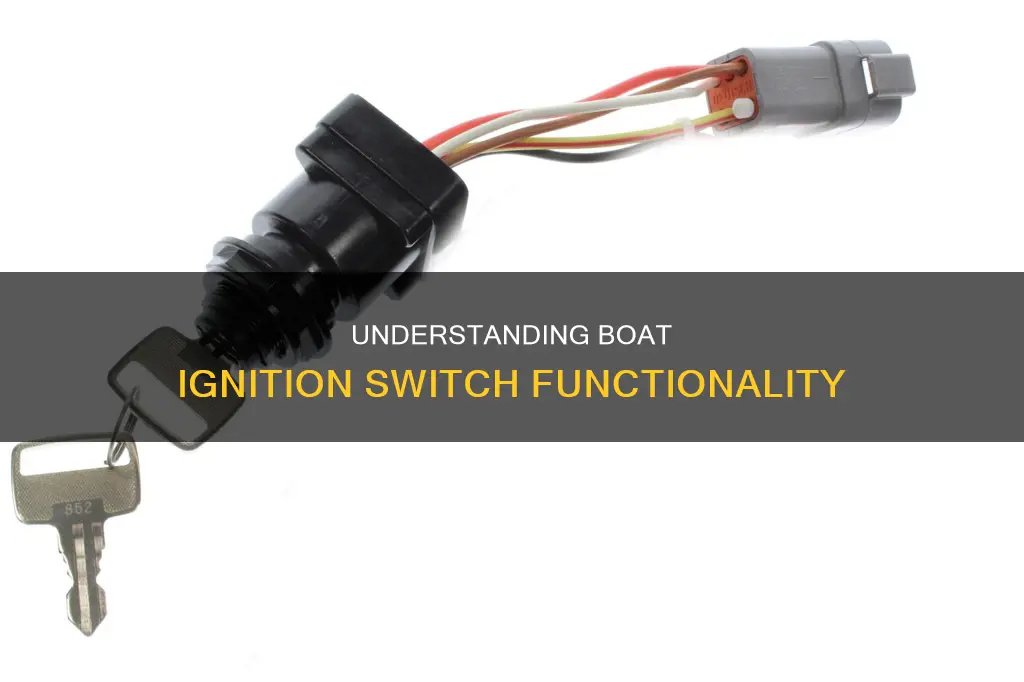

Ignition switches are an essential component of a boat's ignition system. They regulate the timing and intensity of the spark sent to the outboard motor's spark plugs, ensuring the engine runs smoothly and efficiently. Ignition switches are wired to a power source, such as a battery or distribution board, and when in the off position, no power is distributed from the switch. The wiring for ignition switches can vary, with some boats using a key-style ignition switch, while others may have a push-button or choke/primer setup. Understanding how a boat's ignition switch works is crucial for maintaining the health of the boat's motor and ensuring a seamless maritime experience.
| Characteristics | Values |
|---|---|
| Power source | Battery/distribution board |
| Power distribution | When in the off position, no power is distributed from the switch |
| Ignition pack | Regulates the timing and intensity of the spark sent to the outboard motor's spark plugs |
| Magneto systems | Use a switch to ground to kill the spark |
| Battery type ignition | Provide power to the coil and pulse the negative side of the coil to make a spark |
| Stator | Sends signals to the ignition pack to determine the optimal timing for spark generation |
| Start process | Hold the start and choke/primer buttons |
| Starter | Powers up the starter, spinning it up to start the engine |
Explore related products
What You'll Learn
The ignition pack, also known as the switchbox, regulates the timing and intensity of the spark sent to the outboard motor's spark plugs
The ignition pack, also known as the switchbox, is a crucial component of a boat's ignition system. It regulates the timing and intensity of the spark sent to the outboard motor's spark plugs, ensuring the engine runs smoothly and efficiently. The ignition pack is positioned within the outboard ignition system and receives signals from the engine's stator, which are then used to determine the optimal timing for spark generation.
The stator plays an essential role in the seamless operation of the boat's ignition system. It consistently performs to send signals to the ignition pack, which then regulates the spark sent to the outboard motor's spark plugs. This process ensures that the engine runs efficiently and smoothly.
The ignition pack's role in regulating the timing and intensity of the spark is critical to the overall performance of the boat's engine. By receiving signals from the stator and adjusting the spark accordingly, the ignition pack helps to optimise the engine's performance. This ensures that the engine runs reliably and efficiently, providing power and stability during maritime adventures.
Maintaining the ignition pack is essential for the long-term health and performance of the boat's motor. Regular maintenance and proper care can help ensure that the ignition pack functions optimally, contributing to the overall reliability and efficiency of the boat's ignition system.
Missouri Boat Driving: What You Need to Know
You may want to see also
Explore related products
The wiring for the ignition switch
The ignition pack, also known as the switchbox, regulates the timing and intensity of the spark sent to the outboard motor's spark plugs. This component ensures the engine runs smoothly and efficiently. It is positioned within the outboard ignition system and receives signals from the engine's stator, which are then used to determine the optimal timing for spark generation.
During the start process, you will need to hold both the start and choke/primer buttons. The original key setup is far simpler and more secure. There is no difference in wiring the system. It is simply that all three switches are built into the key-style ignition switch. Positive goes to one terminal on two of the three switches. The other terminal goes to whatever that switch controls: the starter solenoid, choke/primer, and magneto. The magneto switch has no power on it and connects to the other magneto wire.
Easy Steps to Start the Boat Granny 2
You may want to see also
Explore related products
The choke/primer button
The choke plate restricts air, enriching the fuel mixture. The primer system has a primer solenoid connected to a fuel supply outside the carburettor, which lets fuel into the throat of the carburettor or reed block. A primer bulb introduces fuel into the carburettor, and is used on small engines without a choke. To check if your primer bulb is working, first make sure there is fresh fuel in the tank. Then, press and release the primer button several times until you see fuel squirting from the carburettor vents or intake manifold.
Boat Registration: Check Expiry and Renewal
You may want to see also
Explore related products
The magneto switch
Magneto ignition systems use a switch to ground to kill the spark, which means simply turning the motor over will make them run. In contrast, battery-type ignition systems provide power to the coil and pulse the negative side of the coil to make a spark.
When wiring a magneto ignition switch, you must short the two magneto wires together for the engine to stop. Of the sea-dog line, you can use 420369, 420385 or 420386. All these are push-to-choke switches, and if you have a water choke, it will be left unconnected. One magneto line connects to the 'M' terminal, and the other one connects to the other 'M' terminal (which is incorrectly marked as going to ground on the schematics).
The Importance of Naming Your Boat: A Watercraft Owner's Guide
You may want to see also
Explore related products
The stator's consistent performance
The stator plays a crucial role in the seamless operation of a boat's ignition system. The ignition pack, or switchbox, regulates the timing and intensity of the spark sent to the outboard motor's spark plugs. This ensures the engine runs smoothly and efficiently. The ignition pack is positioned within the outboard ignition system and receives signals from the engine's stator, which are then used to determine the optimal timing for spark generation. Maintaining the ignition pack is essential for the health of the motor.
Repairing Metal Flake on Your Boat: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A heavy wire comes from a power source (battery/distribution board) to the ignition switch. When in the off position, no power is distributed from the switch.
The ignition pack, also known as the switchbox, regulates the timing and intensity of the spark sent to the outboard motor's spark plugs.
The fuel gauge will work when the Perko master power switch is turned on, but it will drive back to zero when the ignition switch is moved to "ON".
