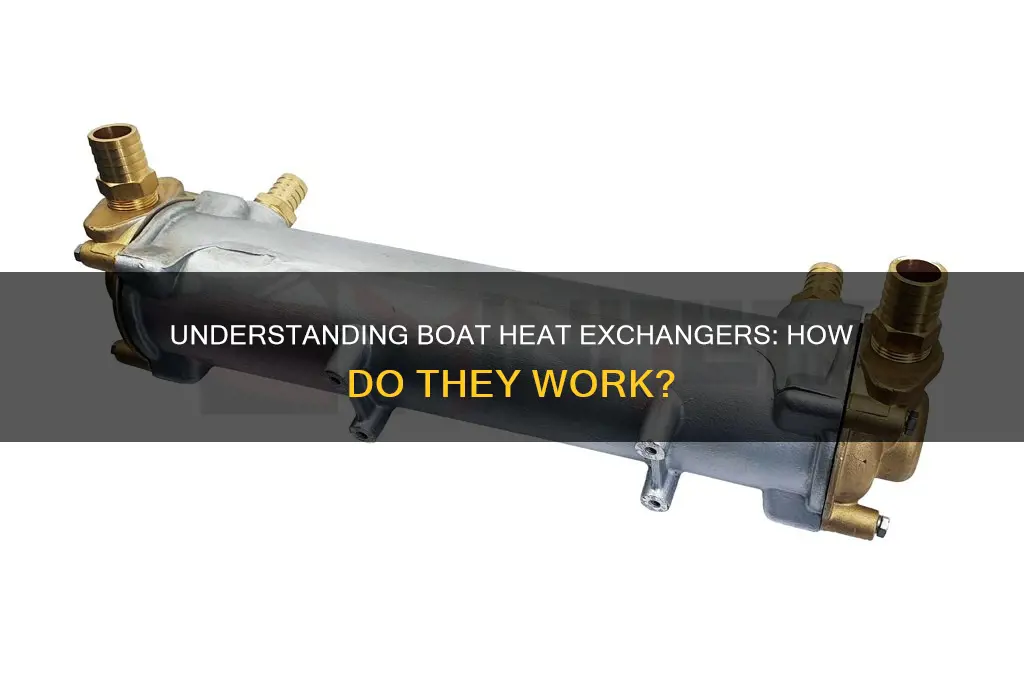

Understanding Boat Heat Exchangers: How They Work

A heat exchanger is an essential part of a boat's cooling system, regulating the engine's temperature. It works by transferring heat from one fluid to another without the fluids coming into direct contact. Seawater is pumped from outside the boat into the heat exchanger, which is made up of a bundle of tubes, often copper, immersed in the engine's coolant. As the seawater flows through the tubes, it absorbs heat from the coolant, preventing the engine from overheating. The heated seawater is then expelled from the exchanger and discharged back into the sea.

Coolant Circulation

In a boat's engine, the coolant absorbs and transfers heat away from the engine, ensuring optimal performance and preventing overheating. The coolant circulates through the engine block, coming into direct contact with the heat-generating components. By doing so, it absorbs the heat produced during combustion, which is then transferred elsewhere through a heat exchanger.

The coolant used in boat engines is usually a mixture of water and antifreeze. This combination provides effective heat absorption and helps maintain engine performance. The antifreeze not only lowers the freezing point of the coolant but also raises its boiling point, making it ideal for marine environments.

It is important to regularly check the coolant levels and condition. Over time, the coolant can break down, reducing its effectiveness. Additionally, leaks in the cooling system can lead to coolant loss, which can result in engine overheating. Therefore, regular maintenance and inspections are crucial to ensure the coolant is circulating effectively and the engine is adequately cooled.

The coolant circulation system in a boat is designed to optimise heat transfer while minimising flow resistance. This ensures efficient cooling of the engine, preventing overheating and maintaining optimal performance. By continuously circulating the coolant, the engine's temperature is regulated, and any excess heat is dissipated into the surrounding seawater.

Heat Transfer Tubes

Heat exchangers are an essential component of a boat's cooling system, helping to regulate the engine's temperature. Heat transfer tubes are a crucial part of this process, and they work by facilitating the transfer of heat from one fluid to another without allowing the fluids to come into direct contact.

The heat exchanger consists of a bundle of tubes, often made of copper or other heat-conductive materials. These tubes are immersed in the engine's coolant, which is usually a mixture of water and antifreeze. Seawater, or raw water, is pumped from outside the boat and into the heat exchanger. This raw water is at a lower temperature than the engine coolant.

As the raw water flows through the heat exchanger tubes, it absorbs heat from the hot engine coolant through the tube walls. This process warms the raw water and cools the coolant. The now-heated raw water is then expelled from the heat exchanger and discharged back into the sea.

Over time, these tubes can become clogged with debris, restricting water flow and causing the engine to overheat. Regular maintenance is therefore crucial, including removing the tubes for cleaning and inspecting for any corrosion or leaks.

The heat transfer tubes play a vital role in the overall functioning of the heat exchanger, ensuring the efficient transfer of heat and preventing the boat's engine from overheating.

Raw Water Flow

The raw water side of the heat exchanger is prone to fouling, which occurs when calcium and magnesium compounds precipitate out of seawater. To prevent this, the tubes should be cleaned mechanically or by circulating acid through them. Regular maintenance of the heat exchanger is crucial to ensure efficient and safe engine performance. Over time, the tubes can become clogged with debris, restricting water flow and causing the engine to overheat. Therefore, it is recommended to remove and clean the heat exchanger core regularly with acid.

Additionally, raw water flow can contribute to corrosion issues within the heat exchanger. The mixture of hot coolant and cold seawater creates a stressful environment for the metal components. To mitigate this, heat exchangers are often equipped with sacrificial anodes, which corrode sacrificially to protect other metal parts. These anodes should be inspected and replaced regularly, as their consumption rate varies with water temperature, salinity, and use conditions.

By understanding the role of raw water flow in the heat exchanger system and maintaining it through regular cleaning and anode replacement, boat owners can ensure the efficient cooling of their engines and prevent overheating.

Heat Exchange

In a boat's engine, a coolant (a mixture of water and antifreeze) circulates through the engine block and absorbs heat generated during combustion. This coolant then passes through a series of tubes in the heat exchanger, which are often made of copper or other heat-conductive materials. Meanwhile, seawater or raw water is pumped from outside the boat into the heat exchanger. As the raw water flows through the tubes, it absorbs heat from the hot engine coolant through the tube walls, thereby cooling the engine. This process of heat exchange ensures the engine operates at the correct temperature, preventing overheating and ensuring efficient performance.

There are different types of heat exchangers used in boats, with the most common being the tube bundle variety. This type of heat exchanger consists of a bundle of tubes within an external shell. The coolant surrounds the tubes, while seawater passes through them, absorbing heat. This design allows engines to be filled with coolant rather than seawater, reducing corrosion and increasing efficiency.

Cooling

Marine heat exchangers are crucial for regulating a boat's engine temperature. They work by transferring heat from one fluid to another without the two fluids coming into direct contact.

In a boat's engine, a coolant (usually a mixture of water and antifreeze) circulates through the engine block and absorbs the heat generated during combustion. This coolant is then pumped through the heat exchanger, which is made up of a bundle of tubes often made of copper or other heat-conductive materials.

Seawater, or raw water, is pumped from outside the boat into the heat exchanger. As it flows through the tubes, it absorbs heat from the hot engine coolant through the tube walls. This process warms the seawater and cools the engine coolant, preventing the engine from overheating. The now-heated raw water is then expelled from the heat exchanger and discharged back into the sea.

The flow of coolant is regulated by a thermostat in the engine's cooling system, which adjusts the flow to maintain the desired operating temperature. If the engine is too hot, the thermostat opens to allow more coolant flow, and if it's too cool, the thermostat restricts the flow.

This continuous transfer of heat from the engine coolant to the raw water helps maintain the engine at the correct operating temperature, ensuring efficient and safe engine performance.

Heat exchangers are also used in other systems on board ships, such as the propulsion plant, auxiliary power generation system, starting air system, fuel injection system, refrigeration system, fresh water system, and steam turbine unit.

There are different types of heat exchangers, but the most common type found on ocean-going vessels is the shell and tube type, which consists of a tube bundle placed inside a larger shell. Plate-type heat exchangers are also used and have the advantage of a smaller footprint.

Regular maintenance of marine heat exchangers is important to prevent fouling and corrosion, and to ensure maximum efficiency. Sacrificial anodes, typically made of zinc, are used in the cooling systems to prevent galvanic corrosion and need to be replaced regularly.
