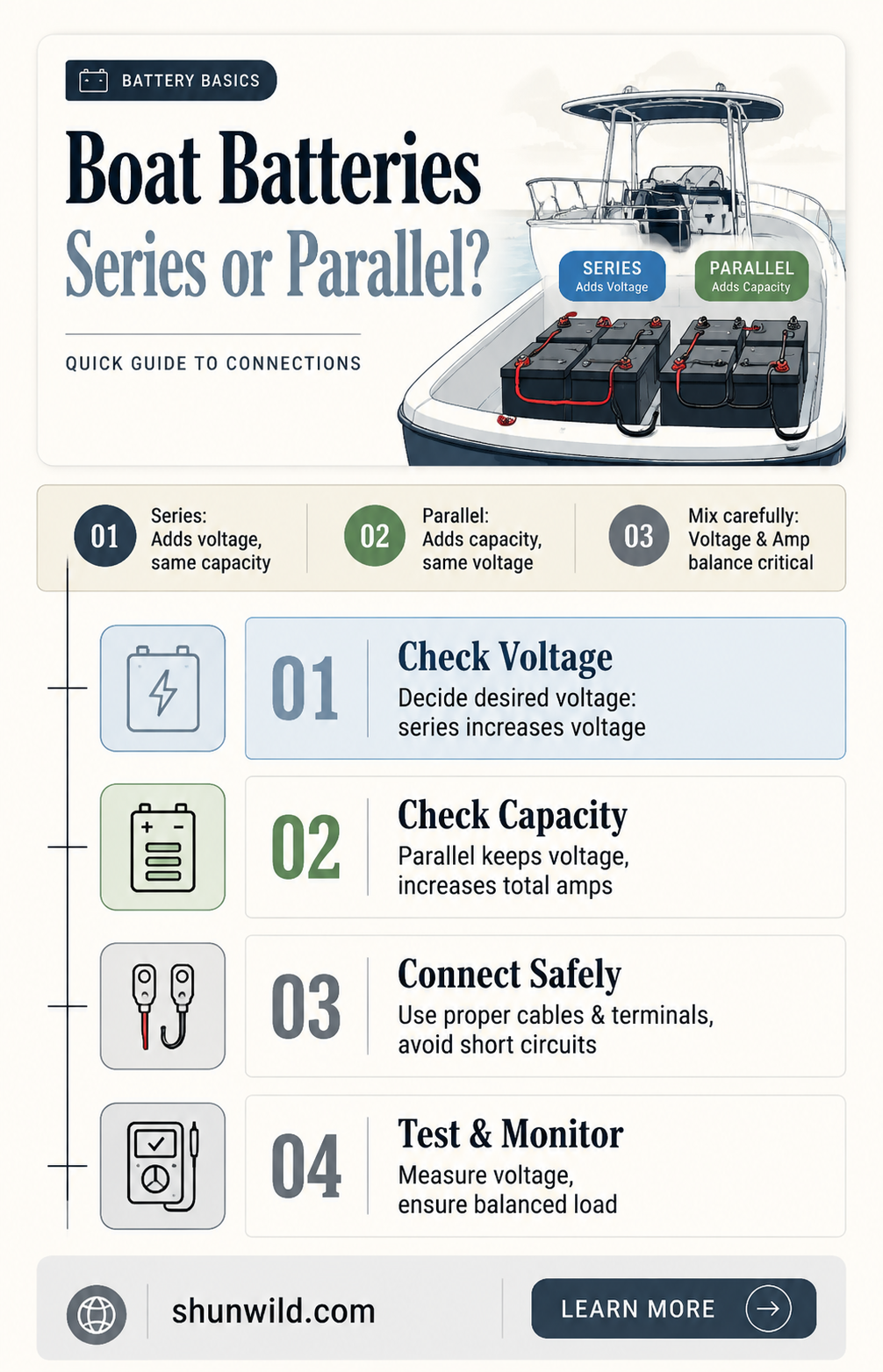

Boat Batteries: Series Or Parallel Connections?

Understanding how to wire batteries correctly is crucial for boat owners to ensure their boat motor, trolling motor, and electronic devices are adequately powered. There are two main ways to connect batteries: in series or in parallel. This article will discuss the pros and cons of each method and provide guidance on choosing the most suitable option for your boat.

Advantages of two separate battery packs

When it comes to boats, having two separate battery packs offers several advantages, especially when it comes to customising your power needs and ensuring reliability.

Firstly, by having two battery packs, you can designate one as the primary power source for engine starting, and the other for running electronics, lights, and stereos. This setup provides redundancy, so if one battery fails or drains, you have a backup to rely on. This is especially useful if you're out on the water and need to ensure you can start your engine in an emergency.

Secondly, with two battery packs, you can choose different types of batteries that are better suited to your specific needs. For instance, you could have a starting battery, similar to an automotive battery, which provides a lot of current for a short period to start the engine. Alongside this, you could have a deep-cycle battery, which can be repeatedly discharged and recharged without damage and is ideal for powering equipment over longer periods.

Additionally, with two separate battery packs, you can increase your overall battery capacity and amp-hours. This means you can run your boat's electronics for longer periods without needing to recharge, which is ideal for longer trips or when using power-hungry equipment.

Finally, having two battery packs allows for more flexibility in terms of voltage and capacity. You can connect the batteries in series to increase voltage, which is useful if your boat's electrical system requires a higher voltage, or in parallel to increase capacity, depending on your specific needs.

In summary, having two separate battery packs in a boat offers advantages in terms of reliability, customisation, and increased capacity, ensuring you have the power you need when out on the water.

Series wiring setup

Series wiring is a great way to increase the voltage available to your boat's electrical system. This setup can be beneficial for large boats or those with large inverters that demand high power.

To wire a series setup, you will need multiple batteries, typically between two and four, that are similar in age, size, type, and manufacturer. It is crucial that the batteries have the same voltage and capacity rating. Mixing and matching batteries in a series setup is dangerous and may damage your equipment.

• Connect the negative terminal of one battery to the positive terminal of the next battery.
• Continue connecting the batteries in this manner until all the batteries are linked in a line, forming the series.
• Wire the positive terminal of the first battery in the series to the positive terminal on your application.
• Connect the negative terminal of the last battery in the series to the negative terminal on your application.

It is important to use a charger that matches the total combined voltage of all the batteries in the series. Additionally, charging each battery individually can help avoid battery imbalance.

24 Volt: Use two 12-volt deep cycle batteries in series.

36 Volt: Use three 12-volt deep cycle batteries in series.

48 Volt: Use four 12-volt deep cycle batteries in series.

By following these steps and considerations, you can effectively set up a series wiring configuration for your boat's electrical system, ensuring you have the necessary power to operate your boat and its equipment.

Parallel wiring setup

A parallel wiring setup for boat batteries is advantageous as it increases the overall amp-hour capacity while maintaining the same voltage. This setup is ideal for running multiple devices simultaneously without quickly depleting battery power, making it perfect for extended trips on the water.

To achieve a parallel setup, connect the positive terminals of all batteries together, as well as the negative terminals. This configuration ensures a consistent voltage while boosting total amperage capacity. For instance, connecting two 12V 100Ah batteries in parallel results in a total of 12V at 200Ah.

When connecting boat batteries in parallel, it is crucial to use batteries of the same type, age, and capacity to avoid imbalances. Secure all connections tightly and insulate them to prevent short circuits. Regularly monitor the charge levels of each battery to maintain balance.

The main advantage of a parallel setup is the increased capacity. For example, two 100Ah batteries connected in parallel provide a total capacity of 200Ah. Additionally, if one battery fails, the others can continue to supply power, enhancing reliability. The parallel configuration also simplifies wiring, making installation and maintenance more accessible.

However, there are some disadvantages to consider. Different batteries may charge or discharge at varying rates, requiring regular monitoring to maintain balance. Furthermore, adding more batteries increases weight and space requirements on your boat, which could impact performance. Lastly, additional batteries also increase initial investment and maintenance costs.

Dual battery setup

A dual battery setup is a great way to ensure you have enough power on your boat. It's an easy project that gives you peace of mind. If you inadvertently drain one battery, you can use the other to start the engine and then switch to the low battery to charge it while you're running.

There are a few things to consider when setting up a dual battery system on your boat:

• Battery Type: Marine batteries come in different types, such as starting batteries, deep-cycle batteries, and dual-purpose batteries. Starting batteries are similar to automotive batteries and provide a lot of current for a short period. Deep-cycle batteries are better for repeated deep discharging and recharging without damage and are a good option for boats with larger DC power requirements. Dual-purpose batteries are a compromise, tolerating deep discharges while also providing cranking power.
• Battery Size and Number: Consider the size of your batteries and whether you need two identical batteries for starting and house electrical loads or a larger "house" bank to run bigger DC loads for longer.
• Battery Location: Batteries need to be in a comfortable temperature range, so if the proposed location is too hot for you, it's too hot for your battery. Battery installations should also have short cable runs to the engine's starter or alternator to prevent voltage loss.
• Battery Ventilation: Batteries, especially flooded-type batteries, give off explosive hydrogen gas when charging, so they must be vented from the top directly outside the boat. If there's insufficient natural ventilation, you may need a sparkproof exhaust fan.
• Battery Connections: You can connect two batteries in parallel to make one larger battery bank. This increases the amp-hours while maintaining the same voltage. Connecting batteries in series increases the voltage but keeps the amp-hours the same.
• Battery Switch: Use a dual battery switch, sometimes called a marine battery switch or marine dual battery selector switch, to choose between batteries, combine them, or disconnect them. Blue Sea Systems and Perko are two companies that offer these switches.
• Battery Cables and Terminals: Use high-quality marine-grade cables and terminals, ensuring they are the correct size and properly crimped, soldered, and waterproofed. Positive and negative terminals often have different diameters, so use the right size terminals.
• Safety: Batteries contain a lot of stored energy, so always remove positive battery cables from terminals when working on the electrical system to prevent short circuits and electrocution. Wear safety glasses and have a water hose available to flush battery acid if needed.

Battery selection factors

When selecting batteries for your boat, there are several factors to consider to ensure you meet your vessel's specific needs.

Firstly, it's crucial to understand your boat's power requirements. Different boats have different needs, and choosing the wrong battery can lead to performance issues and even damage your electrical system. Consider the type of boat you have, its size, and the power demands of the equipment you'll be using. For example, fishing boats typically require a battery for fish finders, GPS units, and trolling motors, while cruisers need a more robust system for engines, navigation lights, and onboard amenities.

Next, you need to select the right type of battery. There are three main types: starting (cranking) batteries, marine deep-cycle batteries, and dual-purpose batteries. Starting batteries deliver quick bursts of energy to start the engine, while deep-cycle batteries provide consistent power over a long period, ideal for electronics and appliances. Dual-purpose batteries combine both functions but may be less efficient for specialized roles.

Another important factor is battery capacity, which is measured in amp-hours (Ah). This indicates how much electricity a battery can store and deliver over time. Choose a battery with sufficient capacity to meet the power demands of your equipment and the duration you plan to use them.

Additionally, pay attention to the battery size. Ensure the battery fits securely in the designated space on your boat, preventing movement and potential damage.

Lastly, consider the voltage requirements of your boat's electrical system. Most small boats use 12-volt batteries, while larger boats may require 24-volt or 36-volt systems, which can be achieved by connecting multiple 12-volt batteries in series.

Remember, proper charging practices and maintenance are also essential for extending the life of your marine battery.
