Optimal Placement Of Transom Tie-Down Eyes On Boats

Transom tie-down eyes are an essential component of boat trailers, ensuring the boat is securely fastened to the trailer during transportation. The placement of these tie-down eyes is a crucial aspect of their functionality and safety. Improper positioning can lead to issues such as bouncing or even potential detachment of the boat from the trailer. The optimal location for transom tie-down eyes depends on various factors, including the design of the boat and trailer, with some boats requiring custom solutions such as welding additional tabs or brackets. The type of tie-down straps used, whether traditional ratchet straps or retractable straps, can also influence the ideal placement of the transom tie-down eyes.

Bow eye U-bolt tie-down installation

The Mxeol Boat Stern Bow Eye U-Bolt Tie Down is a great choice for securing the front of your boat to a trailer. It is made from marine-grade stainless steel and has a max safe load of 3,500 lbs, making it a sturdy and reliable option. The product comes with all the necessary hardware for a lasting and easy installation.

To install the U-bolt, follow these steps:

• Identify the correct location for the U-bolt on the front of your boat.
• Using the provided hardware, secure the U-bolt in place by attaching the backing plates and nuts. Ensure that the U-bolt is securely fastened to the boat.
• Repeat this process for the second U-bolt, placing it in the corresponding position on the other side of the boat.
• Once both U-bolts are installed, you can use tie-down straps to secure your boat to the trailer.

It is important to ensure that the U-bolts are properly installed and secured to safely tow your boat.

If you are looking for an alternative installation method that does not require drilling into your trailer, you can consider using channel iron. This method involves sandwiching two pieces of channel iron around your trailer at the desired locations and securing them with stainless U-bolts. This provides a sturdy anchor for your tie-down straps without drilling into the trailer itself.

Additionally, when choosing the location for your transom tie-down eyes, consider the balance and weight distribution of your boat. Placing the tie-down eyes in the correct position will ensure that your boat sits level on the trailer during transport.

Remember to consider the specific make and model of your boat, as well as the design of your trailer, when installing transom tie-down eyes. This will ensure a safe and secure towing experience for your boat.

Transom tie-down placement for optimal safety

Transom tie-downs are essential for safely securing a boat to a trailer, but careful placement is critical to ensure optimal safety and avoid damage to the boat. Here are some guidelines and considerations for transom tie-down placement:

Number of Tie-Downs

It is recommended to use at least two transom tie-downs for adequate security. Some boaters even suggest using four tie-downs for larger or heavier boats. Using an even number of tie-downs allows for a more balanced distribution of tension and reduces the risk of placing excessive force on a single point.

Placement on the Boat

The placement of transom tie-down eyes on the boat should be centred and positioned below the swim platform or transom. This ensures that the force is distributed evenly and reduces the risk of damage to the boat's structure. It is crucial to avoid placing tie-down eyes too close to the edge of the transom, as this can result in stress concentration and potential cracking or failure.

Placement on the Trailer

When attaching the transom tie-downs to the trailer, consider using purpose-built eye hooks or U-bolts. These can be safely attached to the trailer's I-beam without drilling into it, which could compromise the trailer's structure. Ensure that the tie-down points on the trailer are aligned with the tie-down eyes on the boat to avoid unnecessary strain on the boat's transom.

Material Considerations

The material of the tie-down eyes and attachments is essential for safety and longevity. Stainless steel, such as AISI 316 stainless steel, offers maximum corrosion resistance and durability, making it ideal for marine applications. If the trailer is made of aluminium, ensure that the tie-down hardware is electrically isolated from the trailer frame, especially if used in saltwater environments.

Additional Safety Measures

In addition to transom tie-downs, consider using a bow tie-down to secure the front of the boat to the trailer. This prevents the boat from bouncing during transport and provides additional security. A safety chain is also recommended as a backup measure in case the winch strap or cable fails.

Transom eye rusting issues

Transom eye rusting is a common issue for boat owners, and it can be challenging to address. The problem often stems from crevice corrosion, where a small amount of seawater enters the transom eyes and, due to stagnant conditions, oxygen depletion, and an increase in metallic and chloride ions, the environment becomes highly acidic, leading to corrosion. This can result in the failure of the stern eyes, potentially during trailering, posing a safety hazard.

To prevent and address transom eye rusting, several measures can be taken:

• Proper bedding of the transom eyes: Some boat owners have noticed that their transom eyes were not installed with any bedding compound, which can contribute to crevice corrosion. It is essential to use a suitable bedding compound during installation to create a watertight seal and prevent water ingress.
• Regular cleaning and maintenance: Washing the boat with saltwater-specific cleaners, such as Saltaway, can help remove rust stains and slow down their reappearance. However, it is important to note that this does not address the root cause of the problem.
• Use of sacrificial anodes: Installing sacrificial anodes, such as zinc anodes, can help protect the transom eyes from corrosion. These anodes are designed to attract corrosion, sacrificing themselves to protect other metal components.
• Selection of appropriate hardware: Choosing high-quality, marine-grade stainless steel transom eyes, such as those made from AISI 316 stainless steel, can provide maximum corrosion resistance and durability in marine environments.
• Attention to water ingress points: It is crucial to address any sources of water ingress into the transom, such as damaged drain fittings, perished sealant, leaking steering pin seals, and unsealed mounting holes. By preventing water from entering the transom, you can reduce the likelihood of corrosion.

In some cases, it may be necessary to remove and re-bed the transom eyes to address crevice corrosion adequately. This can be a challenging task, as access to the stern eyes may be limited, and it may require cutting into the boat. Seeking advice from a shipwright or boat builder is recommended before attempting any significant repairs.

Retractable transom tie-downs vs. load binder style

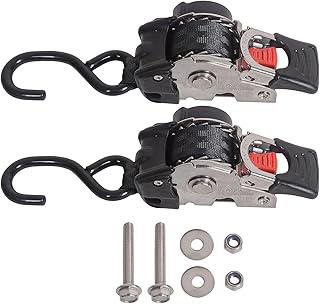

Retractable transom tie-downs are a convenient and secure way to keep your boat tied to its trailer. They feature self-retracting straps that prevent webbing from tangling and flapping during transport. This also means there are no loose belts to tangle with when you're launching your boat.

The self-contained design of retractable tie-downs means they can be permanently mounted to your trailer with a single bolt, so you never have to worry about losing them. They are also easy to use: simply hook, ratchet and go. Many feature a quick-release button that automatically retracts the strap.

When choosing retractable tie-downs, it's important to select a product that is resistant to water and UV damage. Polyester is a good choice of material as it won't stretch, mould or rot, and it resists damage caused by UV rays, water, gas and oils. If you're launching your boat in saltwater, opt for a stainless steel model to prevent corrosion and rust.

Load binder-style straps are an alternative to retractable tie-downs. They are a more conventional method of securing a boat to a trailer and are considered by some to be more reliable. However, they do not offer the same convenience as retractable tie-downs, as they can be more time-consuming to use and store.

Transom tie-down strap recommendations

When it comes to transom tie-down straps, there are a variety of options available to suit different needs and preferences. Here are some recommendations:

Rhino USA Boat Trailer Straps

Rhino USA offers heavy-duty transom tie-down straps that are designed for securely transporting boats or watercraft. The straps feature a ratchet mechanism for easy tightening and a strategic release lever for smooth unloading. They are made with exclusive poly/silk webbing for strength and resistance to wear and tear. The steel buckle and chromoly s-hooks have a lab-tested working load limit of 402 lbs and a maximum break strength of 1,206 lbs. The straps are also adjustable in length, making them suitable for boats of various sizes. Additionally, they come with a heavy-duty drawstring storage bag.

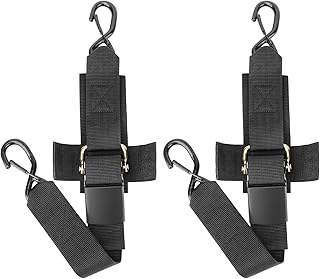

MEILI Heavy Duty Boat Trailer Transom Strap

The MEILI Heavy Duty Boat Trailer Transom Strap is a great option for those seeking an adjustable and secure tie-down solution. These straps feature a quick-release buckle and anti-scratch hooks, ensuring both convenience and protection for your boat. With a break strength of 1,200 lbs, these straps provide reliable support for your vessel during transportation.

BoatBuckle G2 Transom Boat Tie Down Straps

For a bolt-on option, the BoatBuckle G2 Transom Boat Tie Down Straps offer a retractable ratchet design with a 2,500-pound break strength. This set includes two straps, each measuring 2 x 43 inches, providing ample length for securing your boat to the trailer. The bolt-on feature ensures a secure attachment, giving you peace of mind during transit.

Mxeol Boat Stern Bow Eye U Bolt Tie Down

If you're looking for a more permanent solution, the Mxeol Boat Stern Bow Eye U Bolt Tie Down might be ideal. This set includes two U-bolts made of marine-grade stainless steel. They are designed to be mounted on the transom of your boat, providing a secure attachment point for tie-down straps. The U-bolts have a maximum safe load of 3,500 lbs, ensuring they can withstand significant weight.

Camco Retractable Transom Tie Down Strap

The Camco Retractable Transom Tie Down Strap is a durable and corrosion-resistant option for securing your boat. It has a bolt-on design and a 1,500-pound break strength, ensuring the safety of your vessel during transportation. This strap is designed to withstand the harsh marine environment, providing long-lasting performance.
