Electrical circuits on boats are prone to a range of issues, from vibration and pounding to salty air and engine heat. This makes it crucial to have dependable, well-protected circuits to prevent serious electrical problems like fires. Circuit breakers and fuses are essential safety measures, protecting wires from short circuits and overloads.
When it comes to boats, circuit breakers are often located near the power source, typically within 7 inches of wire length as per the American Boat and Yacht Council guidelines. They are usually placed on the positive side of DC circuits, with the exception of some European boat builders who install them on the negative side.
It is important to note that circuit breakers should be sized below the amp rating of the wires they protect. This ensures that wires are not exposed to excessive current, which can lead to insulation melting and potential fires.
While circuit breakers are a common safety feature, it is also worth noting that some boats use fuses, which are designed to melt and separate in the event of excessive current.
To ensure the safety of your boat, it is recommended to consult a professional electrician or refer to resources specific to your boat's electrical system.
Characteristics | Values |
---|---|
Breakers should be placed | Within 7 inches of the battery |
Breakers should be | Fit for purpose and bought from a well-known manufacturer |
Breakers can be used as | Switches |
Single pole breakers | Break one conductor or cable |
Double pole breakers | Break the phase and neutral wires |
RCD (Residual Current Device) | Monitors the difference between the phase and neutral wires |
GFCI (Ground Fault Current Interrupter) | Used in US-built boats, especially in areas where water and electricity are likely to meet |
What You'll Learn
- Breakers should be placed close to the power source
- Breakers should be marked 'ignition protected' if there's exposure to gasoline vapour or propane
- Breakers should be sized below the amp rating of the wires they protect
- Breakers should be reset, not replaced
- Breakers should be fit for purpose and bought from a well-known manufacturer
Breakers should be placed close to the power source
On boats, the ultimate power source is the battery. However, the practical source of power is the connection point of the circuit to the electrical system. This could be at the battery, the battery switch, the distribution panel, a subsidiary panel, or some other connecting point. It is important to place breakers at the source of power for each circuit.
In the case of direct current (DC) circuits, the breaker is always placed on the positive side of the circuit. This is because an unbroken connection to the DC negative must be maintained at all times to protect against stray-current corrosion.
There are some exceptions to the rule of placing breakers close to the power source. For example, if there is limited space, breakers may need to be placed further away. Additionally, breakers should not be installed in battery compartments due to the risk of corrosion and the potential presence of explosive gases.
When installing breakers, it is important to use high-quality products from well-known manufacturers to ensure they are fit for purpose and comply with relevant standards and regulations.
Transferring Boat Ownership in Alabama: A Step-by-Step Guide
You may want to see also

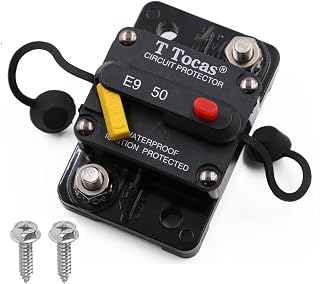

Breakers should be marked 'ignition protected' if there's exposure to gasoline vapour or propane
Breakers, fuses, and circuit breakers are essential safety features on boats, preventing electrical fires and other hazards. However, their importance is often overlooked, and many boats have unprotected circuits, which can lead to dangerous situations.
Breakers should be marked as ignition-protected if there is exposure to gasoline vapour or propane. This is because circuit breakers, starters, alternators, and distributors are all potential ignition sources, and if they come into contact with gasoline vapour or propane, they could cause an explosion. Ignition protection ensures that these electrical components cannot reach a high enough temperature or generate enough of a spark to ignite an air-fuel mixture.
The United States Coast Guard has strict regulations in place regarding ignition protection, and it is important to adhere to these standards to ensure safety. The American Boat and Yacht Council (ABYC) also provides clear guidelines on ignition protection and where ignition-protected devices are required on board.
To ensure safety, it is crucial to understand the fuel and ignition sources on your boat. Gasoline for outboard motors, propane bottles, gasoline tanks, and fuel joints and fittings can all be fuel sources. Circuit breakers, starters, alternators, and distributors are common ignition sources, but even household GFCI outlets and power-tool motors can be hazardous.
By following these guidelines and understanding the potential hazards, boat owners can help prevent accidents and keep themselves and their passengers safe.
Glasply Boats: Worthy Watercraft or Not?
You may want to see also
Breakers should be sized below the amp rating of the wires they protect
When installing extra breakers on your boat, it is important to understand the purpose of overcurrent protection devices. These devices, such as fuses and circuit breakers, are designed to prevent wiring in a circuit from melting down in the event of a short circuit, thereby protecting your boat from fire hazards. Therefore, it is crucial to size breakers according to the wiring and not the current rating of the equipment in the circuit.
When sizing breakers, it is essential to consider the ampacity of the wires they protect. The ampacity of a wire refers to its current-carrying capacity and is determined by factors such as the wire's gauge or diameter and the material it is made of. For example, a wire with a larger gauge will have a smaller diameter and a lower ampacity, while a wire made of copper will have a higher ampacity than one made of aluminum.
To ensure that breakers are sized correctly, they should be rated slightly higher than the ampacity of the wires they protect. This is because wires can safely carry less power than their rated capacity without any issues, but if they carry more power, they could overheat and pose a safety risk. Therefore, it is recommended to size breakers below the amp rating of the wires they protect. For instance, a 30-amp wire should be paired with a breaker rated slightly above 30 amps, ensuring the wire does not carry more current than it can handle.
Additionally, it is worth noting that the National Electrical Code (NEC) provides specific guidelines for breakers and wire sizes. While there are exceptions, such as for air conditioning and heat pump equipment, it is generally recommended to follow these guidelines to ensure the safety of your electrical system.
In summary, when installing extra breakers on your boat, it is crucial to size them based on the ampacity of the wires they protect. By doing so, you can prevent overheating and potential fire hazards. Remember to consult a certified electrician and refer to local electrical codes for specific guidance on breaker and wire sizing for your boat.
Staying Safe: Boat and Diver Distance Rules
You may want to see also
Breakers should be reset, not replaced
Breakers are an essential safety feature of any electrical system, including those on boats. They protect against faults and overloads by interrupting the flow of electricity. When a breaker trips, it can be extremely frustrating, but it is important to remember that this is a safety mechanism to prevent electrical fires and protect your property and safety.
There are several reasons why a breaker trips and will not reset. The most common reason is an overloaded circuit, where too many appliances or devices are drawing power from the same circuit. To reset the breaker, you must first reduce the load on the circuit by unplugging devices and distributing power demand across multiple circuits.
Another cause of a tripped breaker is a short circuit, where a hot wire comes into contact with a neutral or ground wire, causing a dangerous surge in current. In this case, it is important to seek professional help to identify and rectify the issue.
Ground faults are another potential cause, where a live wire touches a ground wire or grounded metal box, often in damp areas. In this case, you should reset the GFCI (Ground Fault Circuit Interrupter) outlets and, if the circuit still doesn't reset, seek professional help.
Breakers themselves also have a limited lifespan and may need to be replaced, especially in older electrical panels that are no longer able to handle the increasing number of electronic devices in modern homes.
In summary, breakers play a critical role in protecting your electrical systems, and when they trip, it is important to identify and address the underlying cause rather than simply replacing them. By resetting the breakers and taking steps to prevent overloading circuits, you can keep your electrical systems safe and reliable.
Total Boat Loss: What Are the Factors Involved?
You may want to see also
Breakers should be fit for purpose and bought from a well-known manufacturer
Breakers are an essential safety feature on boats, protecting circuits from electrical faults and fires. When selecting breakers, it is crucial to ensure they are fit for purpose and sourced from reputable manufacturers.
Firstly, breakers must be fit for purpose, which means they need to be appropriately sized for the circuits they protect. A common misconception is that breakers should be sized according to the current rating of the equipment in a circuit. However, the purpose of a breaker is to safeguard the wiring in the circuit from melting down during a short circuit. As such, the breaker size should be based on the smallest conductor in the circuit to prevent overheating and potential fires.
Additionally, it is imperative to purchase breakers from well-known and reputable manufacturers. Off-brand breakers that do not meet exacting standards can cause various problems. These issues include improper fitment, failure to work, and, most dangerously, not tripping when they should. Investing in high-quality breakers from trusted manufacturers is crucial for safety and ensures that they function correctly and protect your boat's electrical systems.
Breakers are an essential component of any boat's electrical system, and it is vital to select the right ones. By choosing fit-for-purpose breakers from well-known manufacturers, you can ensure the safety and proper functioning of your boat's electrical circuits.
When installing or replacing breakers, it is important to consult a professional or a boat electrics guide to ensure the correct procedures are followed. This will help prevent electrical issues and keep your boat and its occupants safe.
Deadliest Catch: Naming the Johnathan Hillstrand's Fishing Vessel
You may want to see also
Frequently asked questions
Fuses and circuit breakers are essential safety devices that protect your boat's electrical system from short circuits and overloads. They are designed to prevent wires from being exposed to excessive current, which can lead to insulation melting and potential fires.
Fuses and circuit breakers should be placed as close to the power source as possible, ideally within 7 inches of wire length. This ensures that the entire length of wire between the power source and the fuse/breaker is protected in case of a short circuit.
Chafed insulation is a leading cause of boat fires. Vibration, hull flexing, and moving components can result in wire chafing, which can lead to crossed wires, short circuits, and other electrical hazards. It's important to regularly inspect and maintain your boat's electrical system to mitigate these risks.
If you find yourself frequently dealing with tripped breakers, it may be a sign that your electrical system is overloaded and requires additional breakers to handle the demand. Consult with a qualified marine electrician to assess your boat's specific needs.
Always ensure that fuses, circuit breakers, and other electrical components are properly marked as "ignition protected" when used in areas where exposure to gasoline vapors or propane is possible. This includes engine compartments, propane lockers, and areas where portable gasoline tanks are stored.
