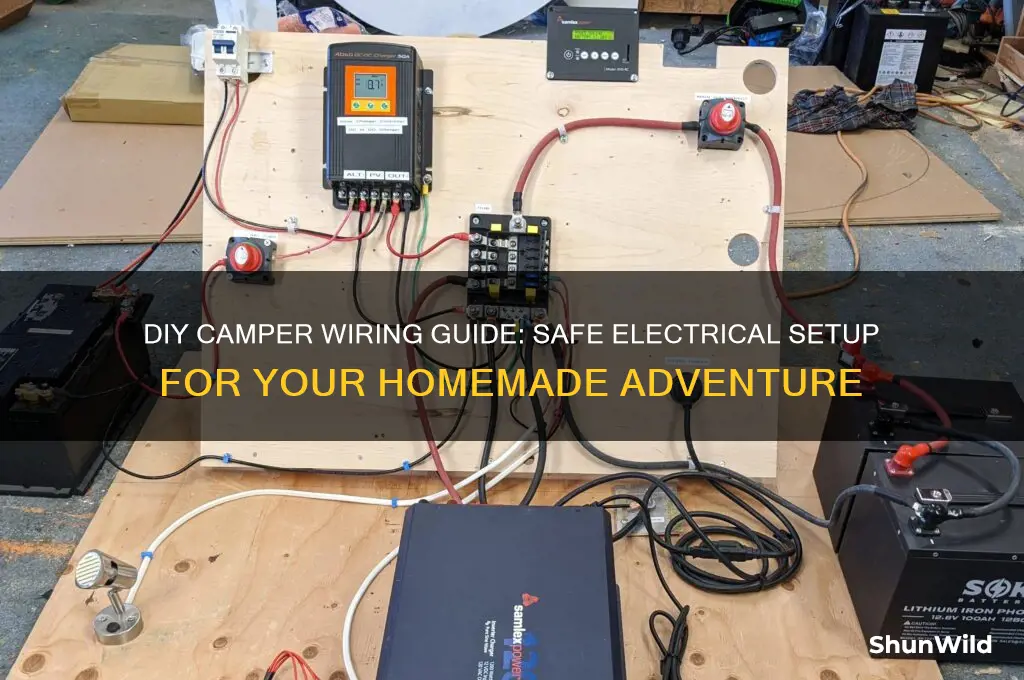

Wiring a homemade camper is a rewarding yet intricate project that requires careful planning and attention to detail to ensure safety and functionality. From designing the electrical system to selecting the right components, such as batteries, inverters, and wiring, each step plays a crucial role in creating a reliable power setup. Understanding the basics of electrical systems, including voltage, amperage, and circuit protection, is essential to avoid overloads or hazards. Additionally, incorporating renewable energy sources like solar panels can enhance sustainability and off-grid capabilities. With the right tools, knowledge, and adherence to safety standards, wiring your homemade camper can transform it into a fully functional and comfortable mobile living space.
Explore related products
What You'll Learn
Planning Electrical Layout
Effective electrical layout planning begins with a clear understanding of your camper’s energy needs. Start by listing all appliances, lights, and devices you intend to power—solar panels, batteries, inverters, and chargers included. Estimate their wattage and daily usage to determine your total energy requirement. For instance, a 12V LED light might consume 2 watts, while a small fridge could draw 60 watts per hour. This inventory ensures you don’t overload your system and helps in sizing components like battery banks and inverters appropriately.
Next, map out the physical layout of your camper, considering both functionality and safety. Place outlets and switches in accessible locations, avoiding areas prone to moisture or high traffic. For example, install USB charging ports near sleeping areas and 120V outlets in the kitchen zone. Use marine-grade wiring and waterproof connectors in areas exposed to humidity, such as the bathroom or exterior lights. Sketching a rough diagram of your camper’s interior will help visualize cable routes and prevent unnecessary wire lengths, reducing voltage drop.
A critical aspect of planning is deciding between a 12V DC system and a 120V AC system—or a hybrid of both. Most campers rely on 12V for lighting and low-power devices, while 120V is reserved for high-draw appliances like air conditioners or microwaves. If you opt for both, ensure your inverter can handle peak loads and that your battery bank can sustain the demand. For instance, a 2000-watt inverter paired with a 200Ah lithium battery bank provides a balance of power and efficiency for moderate usage.
Finally, incorporate safety measures into your design. Install circuit breakers or fuses on every circuit to prevent overloads, and use ground fault circuit interrupters (GFCIs) for 120V outlets in wet areas. Label all wires and circuits clearly to simplify troubleshooting and future modifications. Test your system thoroughly before hitting the road, checking for loose connections, proper grounding, and correct voltage at each outlet. A well-planned electrical layout not only powers your adventures but also ensures peace of mind.
Boot Camp vs. Childhood: Discipline, Freedom, and Growth Contrasted
You may want to see also
Explore related products
Choosing Correct Wire Gauge
Wire gauge is not a one-size-fits-all decision. The American Wire Gauge (AWG) system categorizes wires by diameter, with lower numbers indicating thicker wires. For instance, a 10-gauge wire is significantly thicker than a 16-gauge wire. Thicker wires have lower resistance, allowing more current to flow safely. In a camper, where space is limited and safety is paramount, selecting the right gauge ensures efficiency and prevents overheating.
Consider the amperage requirements of your camper’s electrical system. A 12-volt DC circuit drawing 20 amps requires a different gauge than one drawing 5 amps. Use the formula *Wire Gauge = (Amperage × Wire Length × 0.005) / Allowable Voltage Drop* to calculate the appropriate gauge. For example, a 10-foot run carrying 15 amps should use 10-gauge wire to minimize voltage drop. Always round down to the next thickest gauge if calculations fall between sizes.
Material matters as well. Copper wire is more conductive than aluminum, allowing for smaller gauges in similar applications. However, copper is heavier and more expensive. If using aluminum, opt for a larger gauge to compensate for its lower conductivity. Additionally, consider the wire’s insulation rating. RV-rated wires with high-temperature insulation (e.g., TXL or GPT) are ideal for tight, enclosed spaces where heat buildup is a concern.
Practical tip: Label wires by gauge and purpose during installation. This simplifies troubleshooting and future upgrades. For instance, mark 12-gauge wires for high-draw appliances like refrigerators and 16-gauge wires for LED lights. Use color-coded tape or tags for clarity. Remember, overloading a wire gauge can lead to melted insulation, fires, or appliance damage—a risk not worth taking in a confined space like a camper.
Finally, consult your camper’s electrical diagram or create one if starting from scratch. Identify peak power usage scenarios (e.g., running a heater, microwave, and lights simultaneously) and size wires accordingly. While it’s tempting to save costs with thinner wires, the long-term safety and efficiency benefits of proper gauge selection far outweigh initial expenses. Always err on the side of caution—a well-wired camper is a safe, functional camper.
Discover the Unique Flavor and Benefits of Campos Vegetable
You may want to see also
Explore related products
Installing Solar Panels
Solar panels are a game-changer for homemade campers, offering energy independence and sustainability. To start, assess your power needs by listing all appliances and their wattage. A small fridge might consume 100W, LED lights 10W each, and a laptop charger 60W. Total daily usage, factoring in hours of operation, will determine the panel size. For instance, a 200W solar panel can generate about 1 kWh per day in optimal conditions, sufficient for basic needs.
Choosing the right solar panel involves balancing efficiency, size, and cost. Monocrystalline panels are more efficient but pricier, while polycrystalline panels are budget-friendly but bulkier. Flexible panels are ideal for curved camper roofs, though less efficient. Ensure the panel’s voltage matches your battery system—typically 12V or 24V. Mounting panels securely is critical; use aluminum brackets and silicone sealant to prevent leaks. Tilt brackets can optimize sun exposure, especially in fixed locations.
Wiring solar panels requires precision. Connect panels in parallel to maintain voltage while increasing amperage, or in series to boost voltage. Use solar-rated cables and MC4 connectors for durability. Install a charge controller between panels and batteries to prevent overcharging. MPPT controllers are more efficient than PWM, especially in low-light conditions. Fuse the system at the battery and panel ends for safety, using a 10-15 amp fuse for a 200W setup.
Maintenance is minimal but essential. Clean panels every few months to remove dust or debris, as dirt can reduce efficiency by 20%. Inspect wiring for wear and ensure connections are tight. Monitor battery levels to avoid deep discharge, which shortens lifespan. In winter, angle panels toward the sun to maximize exposure. With proper installation and care, solar panels can power your camper for years, reducing reliance on generators or hookups.
Finally, integrate solar power seamlessly into your camper’s design. Position panels where they won’t be shaded by vents or antennas. Use a battery monitor to track energy usage and production. Pair panels with a deep-cycle battery, like a 100Ah AGM, for reliable storage. For off-grid adventures, consider adding a small inverter to run AC devices. Solar power isn’t just practical—it transforms your camper into a self-sustaining mobile home, blending freedom with responsibility.
Where Do Marines from Bourbonnais, IL Train for Boot Camp?
You may want to see also
Explore related products
Connecting Battery Systems
A well-designed battery system is the heart of any off-grid camper, providing reliable power for lighting, appliances, and devices. Connecting batteries in a homemade camper requires careful planning to ensure safety, efficiency, and longevity. Start by determining your power needs—calculate the total watt-hours required daily and choose a battery bank capacity that meets or exceeds this demand. For instance, a 100Ah lithium battery can deliver 1200Wh (100Ah × 12V), sufficient for basic lighting and small electronics but inadequate for high-draw appliances like refrigerators.
When connecting batteries, the configuration matters. Series connections increase voltage (e.g., two 12V batteries in series yield 24V), while parallel connections increase capacity (e.g., two 100Ah batteries in parallel provide 200Ah at 12V). Most campers use parallel connections to maintain a standard 12V system while boosting capacity. Use heavy-duty cables (4 AWG or thicker) to minimize voltage drop, especially for runs longer than 6 feet. Secure connections with marine-grade terminals and waterproof seals to prevent corrosion and ensure reliability in harsh conditions.
Safety is paramount when wiring battery systems. Always install a fuse or circuit breaker between the battery and the distribution panel to protect against short circuits. A 100A fuse is suitable for a 200Ah battery bank, but consult the battery manufacturer’s guidelines for precise ratings. Incorporate a battery disconnect switch to isolate the system during maintenance or storage, reducing fire risk and preserving battery life. Lithium batteries, while superior in energy density, require a Battery Management System (BMS) to prevent overcharging or overdischarging, which can cause permanent damage or safety hazards.
For advanced setups, consider integrating a DC-to-DC charger or solar charge controller to maintain battery health. A 30A MPPT solar charge controller, paired with a 200W solar panel, can efficiently replenish a 200Ah battery bank in moderate sunlight. Monitor the system with a battery monitor or voltmeter to track state of charge and identify issues early. Regularly inspect connections for looseness or corrosion, and clean terminals with a baking soda solution (2 tablespoons baking soda in 1 cup water) to ensure optimal conductivity.
In conclusion, connecting battery systems in a homemade camper involves balancing capacity, configuration, and safety. Tailor the setup to your power needs, prioritize robust wiring and protection devices, and leverage technology like solar charging and battery monitoring for long-term reliability. A well-executed battery system not only powers your adventures but also ensures peace of mind in remote locations.
Matvey Gredinger's Imprisonment: Uncovering His Concentration Camp Experience
You may want to see also
Explore related products
Grounding and Safety Tips
Proper grounding is the unsung hero of camper electrical systems, often overlooked until it’s too late. Without a reliable ground connection, your wiring becomes a ticking time bomb, risking electrical fires, shocks, or equipment damage. The ground acts as a safety valve, redirecting fault currents away from your camper and into the earth. For homemade builds, this means using a dedicated grounding rod—at least 8 feet long and driven into the soil—connected to your electrical panel with #6 AWG stranded copper wire. Skip this step, and you’re gambling with your safety.
Consider the scenario where a live wire touches the metal frame of your camper. Without a ground, the frame becomes electrified, turning every touch into a potential shock hazard. To prevent this, bond the grounding system to the camper’s chassis using a heavy-duty ground lug and the same #6 wire. This creates a low-resistance path for fault currents, ensuring they bypass you and your belongings. Double-check connections with a multimeter to confirm continuity between the rod, chassis, and electrical panel—a small effort that pays off in peace of mind.
Grounding isn’t just about burying a rod; it’s about integrating it seamlessly into your system. For instance, if your camper has a metal exterior, ensure all electrical components are bonded to the chassis ground. This includes the converter, inverter, and any shore power connections. For added safety, install a ground fault circuit interrupter (GFCI) in your electrical panel. GFCIs monitor current flow and trip within milliseconds if a leak is detected, making them essential for wet environments like kitchens or bathrooms.
One common mistake in DIY builds is confusing the neutral and ground wires. While both may be white or bare, they serve different purposes. The neutral carries return current under normal operation, while the ground is strictly for fault protection. Never connect them together at the subpanel or outlet level—this defeats the grounding system’s purpose. Instead, keep them separate, with the ground wire running directly to the grounding rod or chassis.
Finally, test your grounding system regularly, especially after moving your camper to a new location. Soil conditions vary, and a ground that worked perfectly in sandy soil may fail in rocky terrain. Use a clamp meter to measure ground resistance; ideally, it should be under 25 ohms. If resistance is high, add a second grounding rod spaced at least 6 feet away from the first, connected in parallel to improve conductivity. Grounding is more than a safety measure—it’s the foundation of a reliable electrical system.
Reusing Camping Stove Canisters: Safety Tips and Best Practices
You may want to see also
Frequently asked questions
Use 12- or 14-gauge stranded copper wire for most camper applications. Ensure it’s rated for automotive or marine use to handle vibrations and temperature changes.
Start by listing all appliances and their power needs. Map out the locations of outlets, lights, and the battery. Use a fuse box to protect circuits and plan for a central distribution panel.
Choose a deep-cycle battery (12V) with a capacity (Ah) that matches your daily power usage. A 100Ah battery is common for basic setups, but calculate your needs based on appliance wattage and usage hours.
Use a solar charge controller to regulate power from the panels to the battery. Ensure the panels, wiring, and controller are rated for your system’s voltage and amperage. Secure all connections and protect wires from damage.
