Kristian Ferrell

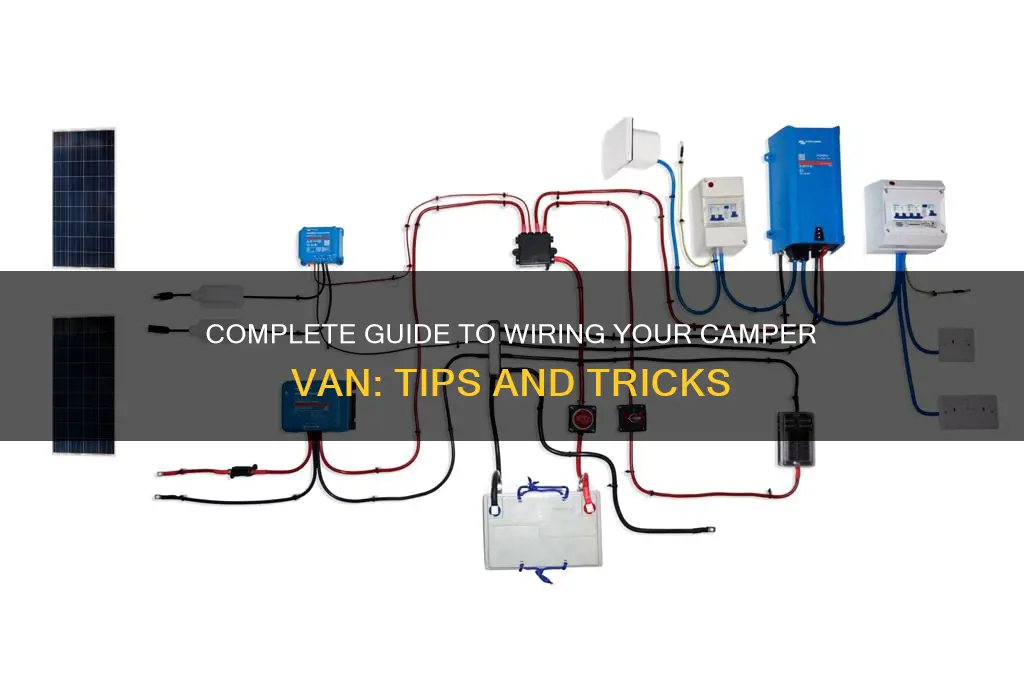

Wiring a camper van is a crucial step in transforming it into a functional and comfortable mobile living space. This process involves planning the electrical system, selecting the right components, and ensuring everything is safely installed to meet your power needs. From choosing the appropriate battery and inverter to running wires for lights, outlets, and appliances, each step requires careful consideration to avoid overloading the system or creating safety hazards. Proper wiring not only ensures your van is reliable but also allows you to enjoy modern conveniences like charging devices, running a fridge, or powering a water pump while on the road. Whether you're a DIY enthusiast or hiring a professional, understanding the basics of camper van wiring is essential for a successful build.
Explore related products
What You'll Learn
- Electrical System Planning: Determine power needs, battery size, and wiring layout for efficient energy distribution
- Battery Installation: Choose and install deep-cycle batteries, ensuring secure mounting and proper ventilation
- Solar Panel Setup: Mount solar panels, connect charge controller, and integrate with battery system
- Inverter Installation: Install inverter for AC power, matching wattage to appliance requirements and wiring safely
- Lighting and Outlets: Wire LED lights, USB ports, and 12V/110V outlets using appropriate gauges and fuses
Electrical System Planning: Determine power needs, battery size, and wiring layout for efficient energy distribution
Before diving into the wiring process, understanding your camper van’s power requirements is critical. Start by listing all electrical devices you plan to use—lights, fridge, water pump, heater, charging ports, and entertainment systems. Estimate their wattage and daily usage hours. For instance, a 12V LED light strip might consume 5 watts, while a portable fridge could draw 60 watts for 8 hours daily. Summing these values gives you the total daily watt-hours needed. This calculation ensures you don’t overspend on unnecessary capacity or fall short during extended trips.
Battery size is directly tied to your power needs and desired autonomy. A common rule of thumb is to choose a deep-cycle battery with a capacity 2–3 times your daily watt-hour requirement to account for inefficiencies and reserve power. For example, if your daily consumption is 200 watt-hours, a 400–600 watt-hour (or 33–50 amp-hour at 12V) battery would suffice. Lithium batteries, though pricier, offer higher efficiency, longer lifespan, and lighter weight compared to lead-acid alternatives. Always factor in the battery’s depth of discharge (DoD)—lithium batteries can typically handle 80–100% DoD, while lead-acid should stay below 50% to preserve longevity.
Efficient wiring layout minimizes energy loss and simplifies troubleshooting. Begin by mapping out the van’s electrical zones—kitchen, sleeping area, living space, and exterior. Use a central distribution block to connect all circuits, ensuring each device has a dedicated fuse for safety. Route wires along the van’s frame or walls, avoiding sharp edges and high-heat areas. Opt for marine-grade, tinned copper wire to resist corrosion and temperature fluctuations. Label all wires and fuses clearly to avoid confusion later. A well-organized layout not only saves energy but also reduces the risk of short circuits or overheating.
Balancing power generation and consumption is key to long-term efficiency. If you plan to rely on solar panels, calculate their required wattage based on your daily needs and average sunlight hours. A 200-watt solar panel, for instance, can generate around 1 kWh on a sunny day. Pair this with a charge controller to regulate battery charging and prevent overvoltage. Alternatively, consider a portable generator or shore power hookup for backup. Monitor your system’s performance using a battery monitor or app to adjust usage and avoid depletion. Thoughtful planning ensures your electrical system remains reliable, whether you’re parked in a forest or by the coast.
Discover Camp ACEN: Anime, Cosplay, and Epic Nerd Adventures Explained
You may want to see also
Explore related products
Battery Installation: Choose and install deep-cycle batteries, ensuring secure mounting and proper ventilation
Deep-cycle batteries are the backbone of any camper van electrical system, designed to provide sustained power over long periods rather than short bursts. Unlike car batteries, which prioritize high current for starting engines, deep-cycle batteries are optimized for consistent energy delivery, making them ideal for running lights, refrigerators, and other appliances. When selecting batteries, consider your power needs, available space, and budget. Lithium-ion batteries offer higher energy density, longer lifespan, and faster charging but come at a premium, while lead-acid batteries are more affordable but bulkier and require more maintenance.
Secure mounting is critical to prevent battery movement during travel, which can lead to damage or disconnection. Use heavy-duty brackets or cradles made of corrosion-resistant materials like stainless steel or aluminum. Ensure the mounting location is stable, away from high-heat areas, and easily accessible for maintenance. For added safety, install a battery hold-down kit, which includes straps or clamps to secure the battery in place. If your van’s floor is uneven, use rubber padding or vibration-dampening material to create a level surface and reduce stress on the battery terminals.
Proper ventilation is essential to dissipate hydrogen gas emitted during charging, which can be explosive in confined spaces. Install your batteries in a well-vented area, such as a battery box with vents or a dedicated compartment with airflow. Avoid sealing batteries in airtight enclosures. If using lead-acid batteries, ensure the ventilation system directs gas outside the van, away from living areas and potential ignition sources. For lithium-ion batteries, while less prone to gas emission, ventilation is still important to manage heat buildup during charging and discharging.
When installing batteries, follow a systematic approach: first, disconnect all power sources to prevent short circuits. Connect batteries in parallel for increased capacity or in series for higher voltage, depending on your system’s requirements. Use appropriately sized cables and fuses to handle the expected current draw. Label all connections clearly and test the system before securing the batteries in place. Regularly inspect terminals for corrosion and clean them with a baking soda solution if necessary. By prioritizing secure mounting and proper ventilation, you’ll ensure a safe, reliable power source for your camper van adventures.
Summer Camp Staff Salaries: What to Expect as a Counselor
You may want to see also
Explore related products
Solar Panel Setup: Mount solar panels, connect charge controller, and integrate with battery system
Mounting solar panels on your camper van is the first step toward energy independence, but it’s not as simple as slapping them on the roof. The angle, orientation, and type of mounting hardware matter. For maximum efficiency, position panels at a tilt angle equal to your latitude, or adjustable brackets if you travel across regions. Use aluminum or stainless steel brackets to avoid corrosion, and ensure the panels are secured with vibration-resistant fasteners to handle bumpy roads. A common mistake is neglecting wind resistance—aerodynamic mounts reduce drag and prevent damage at highway speeds.
Connecting the charge controller is where the magic happens, but it’s also where most DIYers stumble. Start by wiring the solar panels in series or parallel, depending on your system voltage (12V, 24V, etc.). Connect the positive and negative leads from the panels to the charge controller’s input terminals, ensuring polarity is correct. Next, link the controller’s output to your battery bank. Use appropriately sized wires—for a 200W system, 10 AWG wire is sufficient, while larger setups may require 8 AWG or thicker. Double-check connections with a multimeter to avoid shorts or inefficiencies.
Integrating the solar system with your battery bank requires a clear understanding of your energy needs. Calculate your daily consumption (e.g., lights, fridge, water pump) and size your battery bank accordingly—a 200Ah lithium battery is a popular choice for mid-sized vans. Connect the charge controller’s output directly to the battery’s positive and negative terminals, and install a fuse or circuit breaker between the controller and battery for safety. If using a lithium battery, pair it with a compatible charge controller to prevent overcharging, which can reduce battery life.
A common oversight is neglecting the role of a battery monitor or shunt. This device tracks energy flow, showing how much power is stored and used. Install it between the battery and the load to get real-time data on your system’s health. For added convenience, consider a Bluetooth-enabled monitor that syncs with your phone, allowing you to check levels remotely. Finally, ground the entire system to the van’s chassis to prevent electrical faults. With these steps, your solar setup will be efficient, safe, and ready to power your off-grid adventures.
Does Camping World Negotiate Prices? Tips for RV Buyers
You may want to see also
Explore related products
Inverter Installation: Install inverter for AC power, matching wattage to appliance requirements and wiring safely
Installing an inverter in your camper van is a game-changer for powering AC appliances, but it’s not as simple as plugging in a toaster. The first step is to assess your power needs. List all AC devices you plan to use—coffee maker, laptop charger, portable fridge—and sum their wattage requirements. Add a 20% buffer to account for startup surges, as appliances like microwaves often draw more power initially. For instance, if your total appliance wattage is 1,000W, opt for a 1,200W inverter. This ensures the inverter isn’t overloaded, prolonging its lifespan and preventing tripped breakers.
Once you’ve selected the right inverter, placement is critical. Mount it in a well-ventilated area, away from flammable materials and direct sunlight, to prevent overheating. Secure it firmly to the van’s structure using brackets and screws, ensuring it won’t shift during travel. Connect the inverter to your battery bank using appropriately sized cables—typically 4-gauge for a 2,000W inverter or smaller. Use a fuse or circuit breaker near the battery to protect against short circuits, and ensure all connections are tight and corrosion-free.
Wiring safety is non-negotiable. Use marine-grade wire for durability in a mobile environment, and label all cables clearly to avoid confusion during troubleshooting. Install a remote switch or panel near the driver’s seat to turn the inverter on/off without accessing the battery compartment. This not only saves energy but also reduces fire risk when the van is stationary. Test the system thoroughly before hitting the road, checking for loose connections, proper voltage output, and correct appliance operation.
Finally, consider the inverter’s efficiency and noise level. Modified sine wave inverters are cheaper but may hum or damage sensitive electronics, while pure sine wave inverters are pricier but quieter and more compatible with all devices. If you’re running medical equipment or high-end electronics, the latter is a must. Pair your inverter with a battery monitor to track power consumption and avoid draining your battery bank. Done right, inverter installation transforms your camper van into a mobile power hub, balancing convenience with safety.
Is Fit Body Boot Camp a Franchise? Exploring the Business Model
You may want to see also
Explore related products
Lighting and Outlets: Wire LED lights, USB ports, and 12V/110V outlets using appropriate gauges and fuses
LED lighting is the backbone of efficient camper van electrical systems, consuming minimal power while providing ample illumination. Choose 12V LED strips or bulbs for interior lighting, as they directly integrate with your van’s battery system. Use 18-gauge wire for most LED setups, ensuring it’s rated for automotive use to handle vibrations and temperature fluctuations. Connect each light circuit to a dedicated fuse (5–10A) on your distribution block to prevent overloading. For accent lighting, like under-cabinet or reading lights, opt for dimmable LEDs with a switch to conserve energy and adjust ambiance.
USB ports are essential for charging devices, and wiring them correctly ensures fast, safe charging. Install dual or quad USB outlets near sleeping areas, seating, and the kitchen. Use 16-gauge wire for USB circuits, as they draw more current than LEDs. Connect each USB outlet to a 5A fuse, and ensure the ports are rated for 2.4A or higher per port for quick charging. Avoid daisy-chaining multiple USB ports on a single circuit to prevent voltage drop, which slows charging.
For 12V outlets, prioritize locations like the dashboard, kitchen, and garage area for powering appliances like fans or portable fridges. Use 14-gauge wire for these circuits, as they handle higher loads. Fuse each 12V outlet with a 10–15A breaker, depending on the appliance. Label outlets clearly to avoid confusion and ensure users don’t exceed the circuit’s capacity. Test each outlet with a multimeter to confirm proper polarity and voltage before use.
110V outlets are crucial for high-power devices like laptops, coffee makers, or blenders when connected to shore power or an inverter. Use 12-gauge wire for these circuits, rated for AC power. Install a 15–20A breaker for each outlet, depending on the expected load. Place outlets near the inverter or power source to minimize voltage drop. Always install a ground wire (green or bare copper) for safety, connecting it to the van’s chassis or a dedicated grounding busbar.
When planning your layout, group outlets and lights by zone to simplify wiring runs and reduce material waste. Use heat-shrink tubing or waterproof connectors for all splices, especially in damp areas like the kitchen or bathroom. Label wires at both ends with their function and destination to avoid confusion during installation and troubleshooting. Finally, test the entire system under load before finalizing the build, checking for voltage drops, overheating, or loose connections. Proper wiring ensures your camper van’s lighting and outlets are reliable, safe, and ready for the road.
Kidventure Camp Cost: Affordable Summer Fun for Your Child
You may want to see also
Frequently asked questions
Use 12-gauge or 14-gauge stranded copper wire for most applications, as it’s flexible and durable. For higher-amp appliances like inverters or air conditioners, opt for thicker 10-gauge or 8-gauge wire. Ensure all wiring is marine-grade or automotive-grade to withstand vibrations and moisture.
Start by listing all electrical components (lights, fridge, water pump, etc.) and their power requirements. Create a diagram of your van’s interior, marking where each component will go. Plan the wiring routes, ensuring they’re away from sharp edges and high-heat areas. Include a fuse box and circuit protection for safety.
Wiring a camper van can be a DIY project if you’re comfortable with basic electrical work and follow safety guidelines. However, if you’re unsure or dealing with high-power systems (e.g., 240V AC), consult a professional to ensure everything is installed correctly and safely. Always use proper tools and adhere to local electrical codes.
