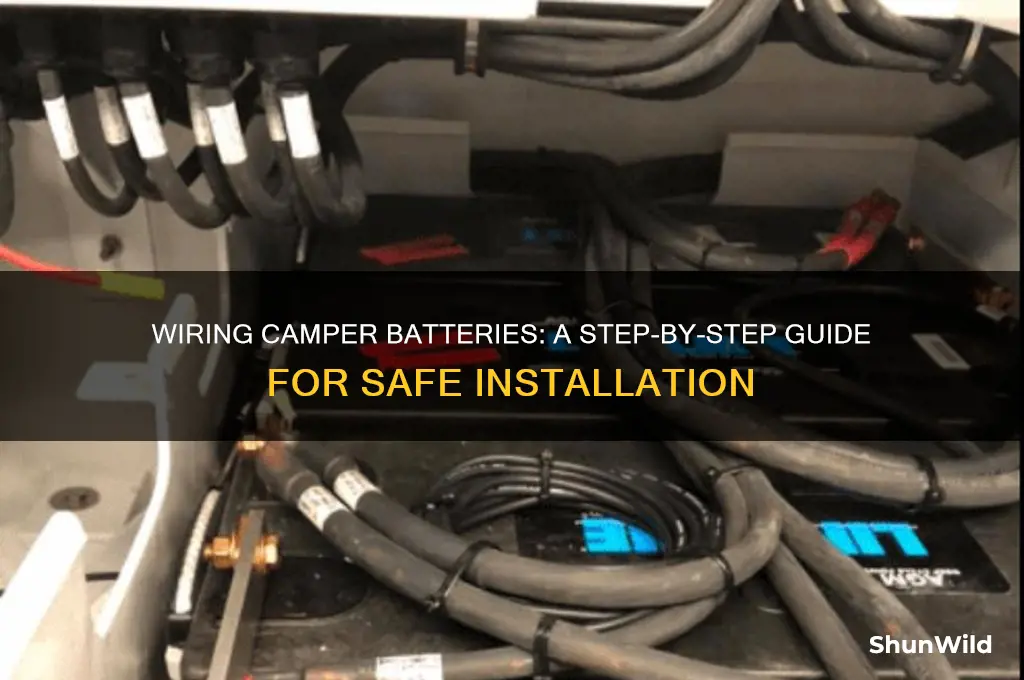

Wiring camper batteries is a crucial task for ensuring a reliable and efficient power supply during your travels. Whether you're setting up a single battery or a dual battery system, understanding the basics of battery types, connections, and safety precautions is essential. This process involves selecting the right batteries, such as deep-cycle or lithium-ion, and configuring them in series or parallel to meet your power needs. Proper wiring includes using appropriate gauge wires, fuses, and disconnect switches to prevent overloading and ensure safety. Additionally, integrating a battery monitor or charge controller can help manage power usage and extend battery life. By following a step-by-step guide and adhering to best practices, you can create a robust and dependable power system for your camper.
| Characteristics | Values |
|---|---|
| Battery Type | Deep Cycle (AGM, Gel, or Flooded Lead-Acid) |
| Voltage | 12V (most common), 6V, or 24V systems |
| Wiring Method | Series, Parallel, or Series-Parallel |
| Series Wiring | Increases voltage (e.g., 2 x 12V = 24V) |
| Parallel Wiring | Increases capacity (e.g., 2 x 100Ah = 200Ah at 12V) |
| Cable Size | 4 AWG or larger for high-current applications |
| Fuse/Breaker | Required for safety (rated for total system amperage) |
| Battery Switch | Recommended for isolating batteries when not in use |
| Battery Monitor | Optional for tracking charge levels and health |
| Charging Source | Solar panels, alternator, shore power, or generator |
| Charge Controller | Required for solar charging (MPPT or PWM) |
| Battery Box | Recommended for protection and organization |
| Maintenance | Regularly check connections, clean terminals, and monitor water levels (for flooded batteries) |
| Safety | Wear protective gear, avoid sparks, and ensure proper ventilation |
| Temperature | Operate within manufacturer’s recommended temperature range |
| Load Management | Avoid exceeding battery capacity to prevent damage |
| Grounding | Ensure proper grounding to prevent electrical hazards |
Explore related products
What You'll Learn
- Battery Types: Choose between lead-acid, AGM, gel, or lithium-ion for camper needs
- Series vs. Parallel: Understand wiring configurations for increased voltage or capacity
- Safety Gear: Use insulated tools, gloves, and goggles to prevent accidents
- Fuse Installation: Protect circuits with properly sized fuses for each battery
- Testing Connections: Verify voltage and continuity to ensure secure wiring
Battery Types: Choose between lead-acid, AGM, gel, or lithium-ion for camper needs
Selecting the right battery type for your camper is a critical decision that hinges on balancing cost, performance, and maintenance. Lead-acid batteries, the traditional choice, are the most affordable but require regular upkeep, including watering and equalizing charges. They are heavy and have a shorter lifespan, typically 3–5 years, making them less ideal for long-term or high-demand use. However, if budget is your primary concern and you’re willing to invest time in maintenance, lead-acid batteries can suffice for occasional weekend trips.
For those seeking a low-maintenance upgrade, AGM (Absorbent Glass Mat) batteries offer a middle ground. They are spill-proof, vibration-resistant, and can handle higher discharge rates than lead-acid batteries. AGM batteries don’t require watering and can last 5–8 years with proper care. Their ability to mount in any position and faster charging make them a practical choice for campers with moderate energy needs. However, they are more expensive than lead-acid and less efficient than lithium-ion, with a lower depth of discharge (DOD) of around 50–80%.
Gel batteries share similarities with AGMs but use a gelled electrolyte, making them even more resistant to extreme temperatures and vibrations. They are ideal for campers operating in harsh climates, such as desert or mountainous regions. However, gel batteries are sensitive to overcharging and require a specific charging profile, which can complicate setup. Their slower charging rate and higher cost compared to AGMs limit their appeal unless temperature resilience is a non-negotiable requirement.
Lithium-ion batteries represent the cutting edge for camper power systems, offering unparalleled energy density, a lifespan of 10+ years, and a DOD of up to 95%. They are lightweight, charge quickly, and require virtually no maintenance, making them perfect for full-time travelers or those with high energy demands. However, their upfront cost is significantly higher than other types, and they require a Battery Management System (BMS) to prevent overcharging or overheating. If your camper has a solar setup or you prioritize efficiency and longevity, lithium-ion is the superior choice despite the investment.
When wiring camper batteries, the type you choose dictates the system’s complexity. Lead-acid and AGM batteries can often be wired in series or parallel without additional equipment, while lithium-ion batteries require a BMS and compatible charger. Always consult the manufacturer’s guidelines for wiring configurations and safety precautions, especially when mixing battery types or expanding your system. The right battery type not only powers your camper but also shapes your overall travel experience, so choose based on your specific needs and long-term goals.
Boot Camp Storage Tips: Where to Keep Your Belongings Safely
You may want to see also
Explore related products
Series vs. Parallel: Understand wiring configurations for increased voltage or capacity
Wiring camper batteries in series or parallel fundamentally alters your electrical system's performance. Series connections double voltage while maintaining amp-hour (Ah) capacity, ideal for powering higher-voltage appliances like air conditioners or inverters. Parallel connections double Ah capacity while keeping voltage constant, perfect for extended runtime on 12V systems. Choose based on your camper's electrical demands, ensuring compatibility with chargers and appliances.
Consider a practical example: two 12V, 100Ah batteries. Wired in series, they produce 24V at 100Ah, suitable for high-wattage devices. Wired in parallel, they deliver 12V at 200Ah, extending runtime for low-voltage lighting or refrigeration. Always match battery types (same voltage, capacity, and chemistry) to avoid imbalances that can damage batteries or reduce efficiency. Use heavy-gauge wiring and proper fuses to handle increased current in parallel setups.
While series wiring boosts voltage, it requires careful management. Most RVs and campers are designed for 12V systems, so upgrading to 24V necessitates compatible appliances and chargers. Parallel wiring, on the other hand, is straightforward for 12V systems but demands attention to cable thickness and connections to minimize voltage drop. For instance, use 4-gauge wire for systems exceeding 200Ah to ensure efficient power delivery.
A persuasive argument for parallel wiring lies in its simplicity and safety. It’s easier to troubleshoot and less likely to overload chargers or inverters, making it beginner-friendly. Series wiring, while powerful, demands precision and knowledge of voltage compatibility. If you’re unsure, start with parallel wiring to maximize capacity without complicating your system. Always consult your camper’s manual or a professional for specific recommendations.
In conclusion, the choice between series and parallel wiring hinges on your camper’s electrical needs. Series wiring elevates voltage for high-power applications, while parallel wiring extends runtime for sustained 12V use. Prioritize safety with matched batteries, proper wiring, and fuses. Assess your appliances’ voltage requirements and runtime demands to make an informed decision, ensuring a reliable and efficient power setup for your adventures.
Unveiling Camp Rock: Music, Dreams, and Teen Adventures Explained
You may want to see also
Explore related products
Safety Gear: Use insulated tools, gloves, and goggles to prevent accidents
Working with camper batteries exposes you to electrical hazards like shocks, sparks, and acid leaks. Insulated tools, gloves, and goggles aren’t optional—they’re your first line of defense. Standard tools conduct electricity, turning a simple wiring task into a potential disaster. Insulated tools, rated for at least 1000V AC, create a barrier between you and live circuits. Similarly, rubber-insulated gloves (Class 00 or higher) protect your hands from shocks, while polycarbonate goggles shield your eyes from battery acid splashes or debris. Skipping this gear is like handling a chainsaw without safety equipment—reckless and avoidable.
Consider the scenario: you’re connecting a 12V deep-cycle battery to your camper’s system. A slipped wrench or frayed wire could send 200+ amps surging through your body, causing burns or cardiac arrest. Insulated tools, designed to withstand high voltages, drastically reduce this risk. Gloves with a minimum thickness of 1mm provide dexterity without compromising safety, allowing you to work confidently even in tight spaces. Goggles, ANSI Z87.1-rated, ensure that accidental acid contact doesn’t lead to permanent eye damage. These aren’t just accessories—they’re critical components of your workflow.
The persuasive case for safety gear is clear: the cost of insulated tools and gloves (typically $50–$150) pales in comparison to medical bills or long-term injuries. Manufacturers like Klein Tools and Milwaukee offer kits tailored for electrical work, ensuring compatibility with camper battery systems. Investing in quality gear also saves time by preventing accidents that halt your project. Think of it as insurance—you hope never to need it, but you’ll be grateful it’s there if something goes wrong.
Comparatively, using non-insulated tools is like driving without a seatbelt. Both choices feel harmless until they’re not. For instance, a metal screwdriver can bridge a live connection, instantly becoming a conductor. Insulated versions, with their VDE-certified handles, prevent this. Gloves, especially those with textured grips, also improve handling in greasy or wet conditions, common in outdoor camper setups. Goggles, while often overlooked, are the difference between a minor spill and a trip to the ER.
In practice, here’s how to implement this: before starting, inspect your gear for cracks, tears, or wear. Replace any compromised items immediately. Position batteries in a well-ventilated area to minimize acid fumes, and always work with the power disconnected. Keep a spill kit nearby for acid leaks, and ensure goggles fit snugly to prevent gaps. Finally, treat safety gear as part of your toolkit—not an afterthought. By prioritizing protection, you’ll complete your wiring project efficiently and, more importantly, safely.
Staying Fit as a Camp Counselor: Balancing Workouts and Camp Life
You may want to see also
Explore related products
Fuse Installation: Protect circuits with properly sized fuses for each battery
Fuses are the unsung heroes of your camper’s electrical system, acting as sacrificial guardians against overcurrent events that could damage wiring or start fires. Each battery in your setup—whether it’s a single house battery or a dual-battery system—requires its own fuse to protect the circuit feeding it. The fuse should be installed as close to the battery’s positive terminal as possible, ensuring that any fault between the battery and the fuse is immediately interrupted. This placement is critical because it minimizes the length of unprotected wiring, reducing the risk of catastrophic failure.
Selecting the correct fuse size is both a science and an art. The fuse rating should match the maximum current the circuit can safely handle, typically 125% of the continuous load or the device’s listed amperage. For example, if your inverter draws 20 amps, a 25-amp fuse is appropriate. However, always refer to the manufacturer’s recommendations for specific components. Using an oversized fuse defeats its purpose, as it won’t trip in time to prevent overheating. Conversely, an undersized fuse will blow prematurely, causing unnecessary downtime.
Installation isn’t just about slapping a fuse inline; it’s about ensuring reliability. Use high-quality marine-grade fuses and holders designed for the amperage and environment. Secure the fuse holder with zip ties or mounting brackets to prevent vibration damage, which can loosen connections over time. If your camper operates in extreme temperatures, consider fuses rated for those conditions to avoid false trips or failures.
A common mistake is neglecting to fuse both the positive and negative sides of a battery bank in certain configurations, such as parallel setups. While the positive side is the primary concern, fusing the negative side adds an extra layer of protection against ground faults. This dual-fuse approach is particularly important in systems with high-draw appliances like air conditioners or electric water heaters, where faults can occur on either side of the circuit.
Finally, test your fuse installation after setup. Use a multimeter to verify continuity and ensure the fuse is correctly interrupting the circuit when blown. Periodically inspect fuses for corrosion, cracks, or signs of overheating, replacing them proactively. Proper fuse installation isn’t just a safety measure—it’s a cornerstone of a reliable, long-lasting camper electrical system.
Essential Tips for Camping in Ontario's Great Outdoors
You may want to see also
Explore related products
Testing Connections: Verify voltage and continuity to ensure secure wiring
A multimeter is your best friend when verifying the integrity of your camper battery wiring. This handheld device measures voltage, current, and resistance, allowing you to pinpoint potential issues before they escalate. To test voltage, set your multimeter to the DC voltage range (typically 20V or higher), connect the red probe to the positive terminal and the black probe to the negative terminal of the battery. A healthy 12V battery should read between 12.6V and 12.8V when fully charged. If the reading is significantly lower, it could indicate a weak battery or a poor connection.
Voltage testing alone doesn’t tell the whole story. Continuity testing ensures that the electrical pathway is unbroken, which is crucial for reliable power delivery. Switch your multimeter to the continuity setting (often represented by a diode symbol or a sound wave). Touch the probes to the ends of a wire or connection point. A continuous circuit will trigger a beep or show a low resistance reading (close to 0 ohms). If there’s no beep or the resistance is high, the connection is compromised—perhaps due to corrosion, loose terminals, or damaged wiring.
Consider this scenario: You’ve wired your camper batteries in parallel to increase capacity, but one battery isn’t charging properly. After testing voltage and finding it low, a continuity check reveals high resistance at the junction between the batteries. This suggests a faulty connection, likely at the terminal or cable. Tightening the terminals and cleaning corrosion with a baking soda solution (2 tablespoons of baking soda mixed with 1 cup of water) often resolves the issue. Always disconnect the battery before cleaning to avoid short circuits.
While testing, pay attention to temperature and load conditions. A battery’s voltage can drop under load, so test both at rest and while powering a small device (like an interior light). If the voltage drops below 10V under load, the wiring or battery may be insufficient for your needs. For dual-battery systems, test each battery individually and then in combination to ensure both are contributing equally. Label each connection point for easy reference during troubleshooting.
The takeaway is clear: regular testing isn’t just a precaution—it’s a necessity. Voltage and continuity checks not only prevent power failures but also mitigate safety risks like overheating or electrical fires. Incorporate these tests into your pre-trip routine, especially after installing new components or following prolonged storage. With a multimeter and a systematic approach, you’ll ensure your camper’s electrical system remains reliable, efficient, and safe.
Accessing Camp BG3: A Step-by-Step Guide for New Players
You may want to see also
Frequently asked questions
For camper batteries, deep-cycle batteries are recommended as they are designed to provide a steady amount of power over an extended period. Common types include flooded lead-acid, AGM (Absorbent Glass Mat), and lithium-ion batteries. Lithium-ion batteries are more expensive but offer longer life and higher efficiency.
To connect multiple batteries, you can wire them in either series or parallel, depending on your voltage and capacity needs. For parallel connections, connect the positive terminals together and the negative terminals together to maintain the same voltage but increase capacity. For series connections, connect the positive terminal of one battery to the negative terminal of the next to increase voltage while keeping the same capacity.
The wire size depends on the current draw and the distance between the battery and the load. As a general rule, use a wire gauge that can handle the maximum current your system will draw. For most camper setups, 4 to 8 AWG wire is common. Always consult a wiring diagram or a professional to ensure safety and efficiency.
