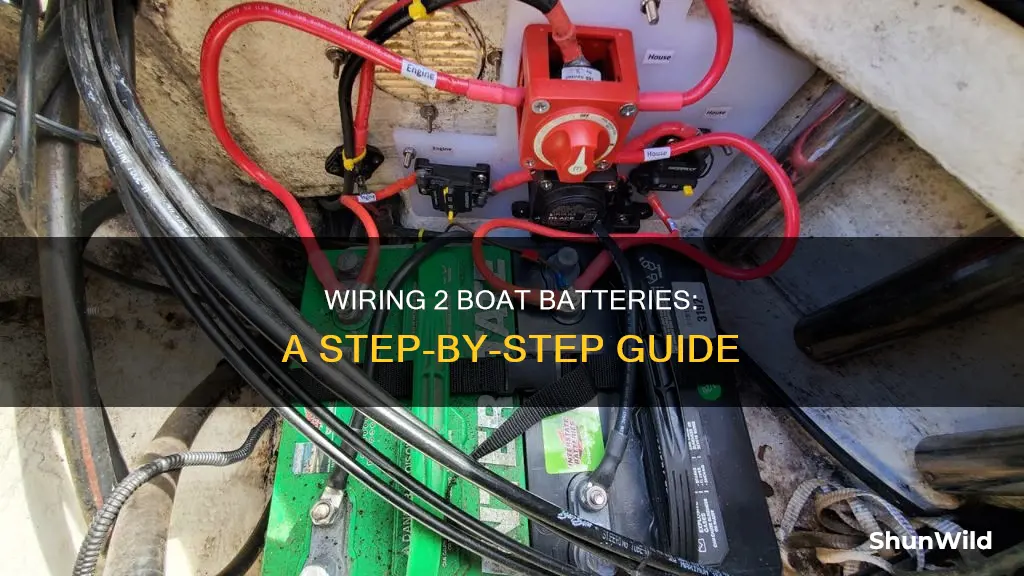

Knowing how to wire two boat batteries is essential for boat owners to understand how their boat motor, trolling motor, and electronic fishing and navigation gadgets are powered. A dual battery setup is ideal for a fishing boat as it allows for separate power sources that can provide the most efficient level of energy needed for starting the boat and operating tools. This setup typically involves a starter battery for the engine and a second battery for tools like fish finders and GPS systems. To wire two boat batteries, you will need tools such as lithium batteries, cables, cable cutters, an adjustable wrench, grease, and a swagging tool. It is also important to decide whether to use series or parallel wiring, depending on the voltage and power requirements of your boat. Series wiring is suitable for high-powered applications and large boats, while parallel wiring increases total battery capacity and longevity.
Explore related products
What You'll Learn
Choosing the right battery type
Battery Purpose
The first step is to determine the purpose of the battery. Will it be used for starting the engine, powering electronics and appliances, or both? Starting batteries deliver quick bursts of energy to start the engine and are not designed for extended use. On the other hand, deep-cycle batteries provide consistent power over a long period, making them ideal for running electronics and appliances. If your boat requires both functions, consider a dual-purpose battery, which combines starting power and deep-cycle capability, although they are less efficient than specialised batteries.
Boat Size and Power Needs
The size and power requirements of your boat will influence your battery choice. A small boat with minimal electronics will have different power needs than a large vessel with sophisticated systems. Consider the number of electronics and appliances you will be running simultaneously, as this will impact the battery's load.
Battery Type and Chemistry
Marine batteries come in different types and chemistries, each with its own advantages and disadvantages. Flooded lead-acid batteries, for example, are commonly used in starting applications and have a no-spill design. Deep-cycle batteries, on the other hand, are designed for steady power output and can be heavily discharged over longer periods. Sealed valve-regulated gelled-electrolyte batteries are maintenance-free, spill-proof, and have a longer lifespan than flooded batteries. Absorbed Glass Mat (AGM) batteries are known for their high power output and long life. Lithium-ion batteries are lightweight, have high energy density, and offer a long life cycle. Consider the performance, durability, and cost of each battery type before making a decision.
Battery Capacity and Reserve
Look for a battery with sufficient capacity and reserve to meet your boat's power demands. Amp-hours (Ah) measure the battery's capacity, indicating how long it can deliver power. Reserve capacity (RC) tells you how long the battery can provide power before needing to be recharged. A higher Ah rating and RC value will ensure your battery can power your systems for extended periods.
Cold Cranking Amps (CCA) and Marine Cranking Amps (MCA)
If you operate your boat in cold temperatures, pay attention to the CCA and MCA ratings. CCA refers to the number of amps a battery can deliver in cold conditions, while MCA measures cranking power in warmer marine environments. A higher CCA rating is essential for reliable engine starting in cold climates.
Installation and Maintenance
Consider the installation requirements and maintenance needs of different battery types. Some batteries, such as wet cell batteries, require periodic maintenance and need to be kept upright. Others, like AGM batteries, may have specific charging requirements. Ensure you follow the manufacturer's recommendations for optimal performance and longevity.
Best Interior Boat Paint: Choose the Perfect Product
You may want to see also
Explore related products
Understanding battery cold cranking amps
CCA is defined as the number of amps a 12-volt battery can support for 30 seconds at -17.8 degrees Celsius (-18°C or 0°F) before the voltage drops to 7.2 volts per cell. CCA ratings are typically displayed on battery labels and range from 100-850 or higher, depending on the vehicle type. For most cars, this translates to between 250 and 600 CCA, while larger vehicles like buses and RVs may require up to 1,000 CCA.
When choosing a battery for your boat, it's important to consider the climate and select one with appropriate CCA and CA (Cranking Amps) ratings. CA measures power at 32°F (0°C), which is the standard for general starting in moderate climates, while CCA evaluates power at freezing temperatures. If you live in an area with harsh winters, opting for a higher CCA rating is recommended to ensure reliable engine starting.
It's worth noting that MCA (Marine Cranking Amps) is another standard used for water-based activities. MCA measures the amps produced at 32°F, the freezing temperature for water. This distinction is made because boats are typically not used when temperatures fall below this point. MCA amps are generally higher than CCA since batteries can produce more current at 32°F compared to 0°F.
In summary, understanding CCA is crucial for boat owners, especially in cold regions. By selecting a battery with the right CCA rating, you can ensure reliable engine starting even in freezing conditions. Additionally, considering the CA and MCA ratings will help you make an informed decision based on your specific climate and usage.
Mississippi Boat Titles: What You Need to Know
You may want to see also
Explore related products
Selecting the right conductor gauge
Voltage Drop and Critical vs. Non-Critical Equipment:
The American Boat and Yacht Council (ABYC) sets standards for voltage drop margins, which refer to the decrease in electric potential along a circuit. For critical equipment, such as bilge blowers, pumps, navigation lights, and communication devices, only a 3% voltage drop is acceptable. On the other hand, non-critical equipment, like livewell pumps, stereos, and courtesy lights, can have up to a 10% voltage drop.
Wire Length:
The length of your wires is crucial. Longer wires result in greater voltage drop. Therefore, for longer wire runs, opt for thicker wires to minimise voltage loss. On smaller boats with shorter wire distances, this may not be as critical, but it's still worth considering.
Current Requirements:
The electrical current your equipment needs plays a role in conductor gauge selection. Higher current equipment requires larger wires to carry the load. For example, a bilge pump with a max current draw of 4.8 amps would typically use 16 or 14-gauge wire. Always refer to equipment specifications to determine current requirements.
Enclosed Engine Compartments and Heat Dissipation:
Heat affects wire performance. In an enclosed engine compartment, heat can increase resistance in wires, reducing their ability to carry current. Therefore, when wires must pass through such compartments, select a wire with an appropriate heat rating to compensate for the higher temperatures.
Wire Bundling:
When bundling wires, heat dissipation is hindered, and the effective current-carrying capacity of each wire is reduced. The ABYC standard for bundled wires is 0.7 on DC circuits. This means a wire that could carry 10 amps individually might only safely carry 7 amps when bundled. Keep this in mind when determining your conductor gauge, especially if you anticipate bundling wires.
Minimum Gauge Requirements:
The ABYC mandates that conductors must be at least 16-gauge, with an exception for 18-gauge wires used in specific conditions. Therefore, 16 or 18-gauge wires are the minimums for boat wiring, depending on the specific application.
Safety and Compatibility:
Pay close attention to the compatibility between your conductor gauge and battery size. Using incompatible gauge and battery sizes can lead to unnecessary safety hazards, as each gauge has maximum amp draws associated with it. Always refer to safety standards and manufacturer guidelines to ensure a safe and effective wiring setup.
When in Doubt, Go Bigger:
When deciding between two wire sizes, it's generally safer to choose the larger size. Larger wires have lower resistance, reducing the risk of heat buildup and potential fires. As long as the circuit is properly protected with an appropriately sized fuse or breaker, a larger wire size will not cause any negative issues.
JFK's Command: A Boat Named PT-109
You may want to see also
Explore related products
Using an overcurrent protection device
When installing OCP devices, it is important to place them as close as possible to the source of power, typically within 7 inches of the positive terminal of the boat's battery bank. This is a minimum requirement set by the American Boat and Yacht Council (ABYC) standards, and it is important to note that these standards are voluntary. To ensure compliance with European standards, the fuse should be placed within 7.9 inches or 200mm of the battery bank.
There are some exceptions to the 7-inch rule outlined by the ABYC:
- Cranking motor conductors are not required to have OCP installed. However, special care must be taken to ensure that the positive cable does not make contact with the engine, except at the starter positive post.
- If the conductor is connected directly to the battery terminal and is enclosed within a sheath, conduit, junction box, or control box, the OCP can be placed up to 72 inches away from the battery.
- For conductors connected to a source of power other than the battery terminal, such as a battery switch or starter post, the OCP can be placed up to 40 inches away, provided the conductor is enclosed.
- Alternators with integral regulators and conductors less than 40 inches in length do not require OCP if connected to a source of power other than the battery and enclosed within a sheath.
- Overcurrent protection is also not required at an alternator if the conductor's ampacity is equal to or greater than the alternator's rated output.
When selecting an OCP device, it is important to choose one that matches the ampacity of the cables being protected. Fuses and circuit breakers should be sized based on the current-carrying capability of the wiring, rather than the amperage of the equipment in the circuit. This is because, in the event of a short circuit, the OCP device prevents the wiring from melting down by interrupting the current flow.
Additionally, it is crucial to consider the Ampere Interrupting Capacity (AIC) of the OCP device. AIC refers to the maximum short-circuit current that the device can safely interrupt without failing. For DC systems, the ABYC requires a minimum AIC rating of 3000 amps in most cases and 5000 amps in certain situations.
When wiring two boat batteries, it is essential to use an overcurrent protection device that complies with safety standards and is appropriately sized for the wiring and battery bank. This will help prevent electrical fires and ensure the safety of those on board.
Exploring England-France: The Nautical Miles by Boat
You may want to see also
Explore related products
Series or parallel wiring
When wiring two boat batteries, you can connect them in series or in parallel. Each method has its advantages and disadvantages, and the best approach depends on your specific needs and application. Here is an overview of both methods:
Series Wiring:
- In series wiring, the positive terminal of one battery is connected to the negative terminal of the next battery, creating a line.
- This configuration increases the voltage of the system but keeps the ampere capacity the same. For example, connecting two 12V 30Ah batteries in series results in a combined voltage of 24V while maintaining a capacity of 30Ah.
- Series wiring is suitable when you need a higher voltage to power your applications.
- It is important to ensure that batteries connected in series have the same voltage and capacity ratings. Mixing and matching batteries in a series configuration can be dangerous and may damage the batteries.
- Charging series-wired batteries requires a charger that matches the total combined voltage of all the batteries.
Parallel Wiring:
- In parallel wiring, the positive terminals of both batteries are connected, and the negative terminals are connected separately.
- This configuration increases the battery bank capacity (amp-hours) while keeping the voltage the same. For instance, two 12V 30Ah batteries in parallel will result in a total capacity of 60Ah while the voltage remains at 12V.
- Parallel wiring is advantageous when you need to run your applications for a longer time, as it increases the capacity without altering the voltage.
- Similar to series wiring, parallel-connected batteries should have the same voltage and capacity to avoid issues that may damage the batteries.
- One drawback of parallel wiring is that it may take longer to charge the batteries due to the increased capacity. Additionally, the lower voltage can result in a higher current draw, requiring thicker cables.
In summary, series wiring increases voltage, while parallel wiring increases capacity or runtime. The method you choose depends on whether you require higher voltage or extended runtime for your boat applications.
Exploring the Reels of Fortune Boat Type
You may want to see also
Frequently asked questions
A second battery acts as a backup, giving you twice the battery capacity. This is useful if you accidentally drain one battery while the engine is off.
A dual battery setup is ideal for fishing boats as it allows for separate power sources. One battery is used to start the engine, and the other powers tools like fish finders and GPS systems.
You will need lithium batteries, cables, cable cutters, an adjustable wrench, grease, a swagging tool, and possibly a soldering gun and solder.
Series wiring is for high-powered applications and uses 2 to 4 similar batteries. Parallel wiring increases total battery capacity and longevity and is suitable for most boats.
Connect the positive terminal of one battery to the positive terminal of the other, and the same for the negative terminals. Then, connect a lead to the positive and negative terminals on one battery.
