Testing a camper battery is essential for ensuring reliable power during your travels, as a weak or failing battery can leave you stranded without electricity. The process involves checking the battery’s voltage, load capacity, and overall health using a multimeter or a dedicated battery tester. Start by ensuring the battery is fully charged and disconnected from the camper’s electrical system. Measure the voltage at rest; a healthy 12-volt battery should read around 12.6 volts. Next, perform a load test by applying a controlled drain and observing the voltage drop; if it falls below 9.6 volts under load, the battery may be compromised. Additionally, inspect the battery for physical signs of damage, such as corrosion or swelling. Regular testing, especially before and after trips, helps identify issues early and extends the battery’s lifespan, ensuring your camper remains powered and functional.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Hydrometer (for flooded lead-acid batteries), Distilled water |
| Battery Types | Lead-acid (flooded, AGM, gel), Lithium-ion |
| Voltage Test (Fully Charged) | 12.6–12.8V (lead-acid), 13.2–13.4V (lithium-ion) |
| Voltage Test (50% Charged) | 12.2V (lead-acid), 13.0V (lithium-ion) |
| Voltage Test (Discharged) | Below 12.0V (lead-acid), Below 12.8V (lithium-ion) |
| Load Test (Lead-Acid) | Apply 10A load for 15 seconds; voltage should not drop below 9.6V |
| Hydrometer Test (Flooded Lead-Acid) | Specific gravity: 1.265 (fully charged), 1.170 (50% charged) |
| Temperature Compensation | Subtract 0.003V per cell (°C above 25°C), add 0.003V per cell (°C below) |
| Visual Inspection | Check for corrosion, leaks, swelling, or damage |
| Charging System Test | Ensure charging voltage is 13.6–14.4V (lead-acid), 14.2–14.6V (lithium) |
| Cycle Testing | Discharge to 50% and recharge to assess capacity retention |
| Safety Precautions | Wear gloves, avoid sparks, test in well-ventilated area |
| Frequency of Testing | Monthly (during use), Every 3–6 months (storage) |
| Replacement Threshold | Replace if voltage drops below 10.5V or capacity falls below 80% |
Explore related products
What You'll Learn
Check Battery Voltage

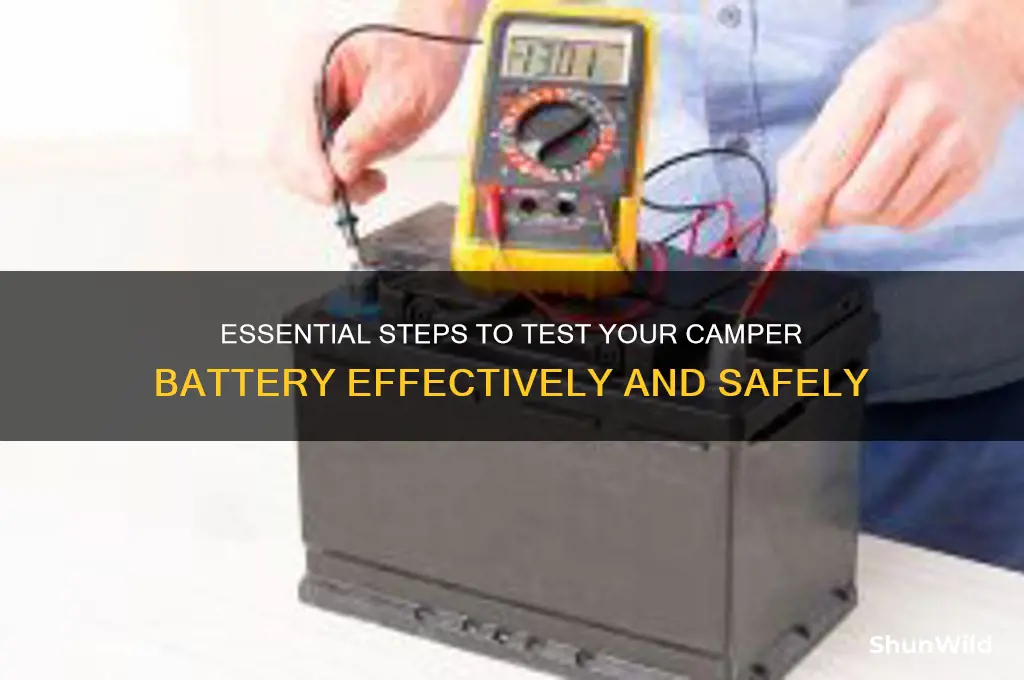

A camper battery's voltage is a critical indicator of its health and capacity. To check it, you'll need a digital multimeter, a tool that measures electrical voltage, current, and resistance. Set the multimeter to the DC voltage setting, typically denoted by a "V" with a straight line above it, and ensure the range is appropriate for a 12-volt battery. With the camper's electrical system turned off, connect the multimeter's positive (red) lead to the battery's positive terminal and the negative (black) lead to the negative terminal. A fully charged 12-volt battery should read between 12.6 and 12.8 volts. If the voltage drops below 12.0 volts, the battery is likely discharged and needs recharging.
Consider the battery's age and usage history when interpreting voltage readings. A new battery will hold a charge more effectively than an older one, even if both show similar voltage levels. For instance, a 5-year-old battery reading 12.5 volts may be nearing the end of its life, while a 1-year-old battery at the same voltage is likely in good condition. Environmental factors, such as temperature, also influence voltage. In colder climates, a battery’s voltage may drop slightly, even if it’s fully charged. Conversely, extreme heat can cause voltage to rise temporarily. Always test the battery at room temperature for the most accurate reading.
Testing voltage under load provides a more realistic assessment of the battery’s condition. Turn on a moderate electrical appliance, like an interior light or water pump, while monitoring the voltage. A healthy battery should maintain a reading above 10 volts under load. If the voltage drops significantly, say below 9.6 volts, the battery may be sulfated or damaged. This test is particularly useful for identifying batteries that appear fully charged at rest but fail to deliver power when needed. Regularly performing this check can help you catch issues before they leave you stranded.
For those without a multimeter, alternative methods exist, though they are less precise. Some campers have built-in battery monitors that display voltage levels. However, these systems can be inaccurate if not calibrated properly. Another option is using a simple voltage tester pen, which lights up to indicate the presence of voltage but doesn’t provide an exact reading. While these tools offer convenience, they lack the diagnostic depth of a multimeter. Investing in a quality multimeter is a small price to pay for reliable battery testing.
In conclusion, checking a camper battery’s voltage is a straightforward yet essential task. It requires minimal tools and provides valuable insights into the battery’s state of charge and overall health. By understanding voltage readings, accounting for external factors, and testing under load, you can ensure your battery is ready for your next adventure. Regular monitoring not only extends battery life but also prevents unexpected power failures, making it a habit worth adopting for any camper owner.
Transforming Lives: How Boot Camp Reshapes Mind, Body, and Spirit
You may want to see also
Explore related products
Test Battery Capacity
A camper battery's capacity is its ability to store and deliver energy, measured in ampere-hours (Ah). Over time, this capacity diminishes due to usage, age, and environmental factors. Testing battery capacity is crucial to ensure your camper’s electrical systems function reliably, especially during extended trips. Unlike a simple voltage check, capacity testing reveals how much usable energy remains in the battery under load, providing a more accurate assessment of its health.
To test battery capacity, you’ll need a battery load tester, which applies a controlled load to the battery while measuring its performance. Start by fully charging the battery and letting it rest for at least an hour to stabilize. Connect the load tester to the battery terminals, ensuring the polarity is correct. Set the tester to draw a current equivalent to 20% to 50% of the battery’s rated capacity (e.g., for a 100Ah battery, use a 20A to 50A load). Monitor the voltage drop over time; a healthy battery should maintain voltage above 10.5V for a lead-acid battery or 12V for a lithium battery under load.
Interpreting the results requires understanding the battery’s specifications. For instance, if a 100Ah battery drops below 10.5V after delivering only 50Ah of charge, it has lost 50% of its capacity. This indicates the battery is nearing the end of its useful life and may need replacement. Keep in mind that temperature affects performance; cold temperatures reduce capacity, while warm temperatures may temporarily inflate it. Always test in a controlled environment for accurate results.
For DIY enthusiasts, an alternative method involves using a multimeter and a known resistive load, such as a 12V bulb. Calculate the load current by dividing the battery voltage by the bulb’s resistance (Ohm’s Law: I = V/R). Monitor the time it takes for the voltage to drop to a critical level, then compare it to the expected runtime based on the battery’s rated capacity. While less precise than a load tester, this method provides a practical estimate of remaining capacity.
Regular capacity testing not only prevents unexpected power failures but also extends battery life by identifying issues early. Pair this test with routine maintenance, such as cleaning terminals and checking electrolyte levels (for lead-acid batteries), to maximize performance. By understanding and monitoring battery capacity, you ensure your camper remains a reliable companion for off-grid adventures.
Camping Costs at Fort Buenaventura: A Budget-Friendly Guide
You may want to see also
Explore related products
Inspect Battery Connections
Loose or corroded battery connections are a leading cause of camper battery issues, often masquerading as a dead battery. Before assuming the worst, a thorough inspection of the battery terminals and cables can save you time, money, and frustration. Start by locating your camper's battery, typically housed in a designated compartment. Most RVs use 12-volt deep-cycle batteries, which have two terminals: positive (+) and negative (-), usually marked in red and black, respectively.
Inspection Process: Begin by turning off all power sources to the camper, including the battery disconnect switch if available. Safety first—always wear eye protection and gloves when working with batteries to avoid contact with corrosive acid. Using a wrench or pliers, loosen the nut on the negative terminal first, followed by the positive. Carefully remove the cables, noting their positions for reassembly. Inspect the terminals for signs of corrosion, which appears as a white, greenish, or bluish powdery substance. Corrosion acts as an insulator, hindering the flow of electricity and reducing battery performance.
Cleaning and Maintenance: If corrosion is present, mix a solution of baking soda and water (1 tablespoon baking soda to 1 cup water) to neutralize the acid. Dip an old toothbrush or battery terminal brush into the solution and scrub the terminals and cable ends until they’re shiny. For stubborn buildup, a battery terminal cleaner or wire brush can be more effective. Rinse with clean water and dry thoroughly. Apply a thin coat of dielectric grease or petroleum jelly to the terminals to prevent future corrosion. Reattach the cables, tightening the nuts securely but not overly tight to avoid damage.
Comparative Insight: While this process may seem straightforward, it’s often overlooked in favor of more complex diagnostics. For instance, a camper owner might jump to testing voltage with a multimeter (which should read 12.6 volts for a fully charged 12-volt battery) without first addressing connection issues. However, even a fully charged battery will underperform if connections are poor. This simple inspection can resolve up to 30% of battery-related problems, making it a critical first step in any battery testing routine.
Practical Takeaway: Regularly inspecting and cleaning battery connections should be part of your camper maintenance checklist, especially after periods of inactivity or exposure to harsh weather. For long-term storage, consider disconnecting the battery entirely to prevent parasitic drain. By prioritizing this often-neglected task, you’ll ensure your camper’s electrical system operates efficiently, extending battery life and avoiding unnecessary replacements.
Undrafted Free Agents' Training Camp Earnings: What to Expect
You may want to see also
Explore related products
Assess Battery Age
A battery's age is a critical factor in its performance and reliability, especially in a camper where power needs are diverse and often essential. Over time, batteries naturally degrade, losing capacity and efficiency, which can lead to unexpected failures. Understanding the age of your camper battery is the first step in assessing its health and determining whether it needs maintenance, recharging, or replacement.
Analytical Approach:
Battery age directly correlates with its internal chemistry and usage patterns. Lead-acid batteries, commonly used in campers, typically last 3–5 years, while lithium-ion batteries can endure 5–10 years. However, factors like temperature extremes, deep discharge cycles, and irregular maintenance accelerate aging. For instance, a battery frequently discharged below 50% of its capacity may lose 20–30% of its lifespan. To assess age, check the manufacturing date stamped on the battery case (usually in a "MM/YYYY" format). If it’s over 3 years old, monitor its performance more closely, as degradation becomes noticeable beyond this point.
Instructive Steps:
To evaluate battery age effectively, follow these steps:
- Locate the Manufacturing Date: Inspect the battery for a stamped or labeled date code. If absent, consult the purchase records or warranty documentation.
- Track Usage History: Note how often the battery has been deeply discharged or exposed to harsh conditions. A log of usage patterns can provide insights into accelerated aging.
- Compare to Lifespan Benchmarks: Match the battery’s age against its expected lifespan. For example, a 4-year-old lead-acid battery nearing the end of its life may show signs of reduced runtime despite full charging.
Practical Tips:
If the battery’s age is unclear, look for physical signs of aging, such as bloating, corrosion around terminals, or a sulfuric odor, which indicate advanced degradation. Additionally, use a battery tester to measure voltage and capacity; a significant drop below the rated specifications (e.g., 12V dropping to 11.5V under load) suggests age-related wear.
Comparative Insight:
Unlike newer batteries, older ones struggle to hold a charge and recover from deep discharges. For example, a 2-year-old battery might retain 90% of its original capacity, while a 5-year-old one could drop to 60%. This comparison highlights why age-based assessments are crucial for predicting performance and planning replacements.
Assessing battery age is a straightforward yet vital practice in camper battery maintenance. By combining date checks, usage analysis, and performance metrics, you can accurately gauge a battery’s remaining lifespan. Proactive monitoring ensures you’re never caught off guard by a failing battery, keeping your camper powered reliably during adventures.
Life After Marine Boot Camp: Challenges, Growth, and New Beginnings
You may want to see also
Explore related products
Perform Load Test
A load test is the most accurate way to determine a camper battery's true health and capacity. Unlike a simple voltage check, which only measures open-circuit voltage, a load test simulates real-world conditions by drawing current from the battery while monitoring its performance. This reveals how well the battery can handle the demands of powering your camper's appliances and systems.
Understanding the Load Test Process
The core principle of a load test is to apply a controlled load to the battery for a specific duration, typically 15 to 30 seconds. This load should be equivalent to about half of the battery's rated capacity (measured in ampere-hours, Ah). For example, a 100Ah battery would require a 50-amp load. During the test, you'll monitor the battery's voltage drop. A healthy battery should maintain a voltage above 9.6 volts for a 12V battery.
Conducting the Test: A Step-by-Step Guide
- Gather Your Tools: You'll need a reliable load tester, which can be purchased or rented from auto parts stores. Ensure it's rated for the voltage and current of your camper battery.
- Prepare the Battery: Ensure the battery is fully charged before testing. Disconnect all loads from the battery, including the camper's electrical system.
- Connect the Load Tester: Follow the tester's instructions for connecting the positive and negative leads to the corresponding battery terminals.
- Apply the Load: Set the tester to the appropriate load current (half the battery's Ah rating) and initiate the test. Observe the voltage reading on the tester.
- Monitor Voltage Drop: A healthy battery will experience a slight voltage drop during the test but should remain above the minimum threshold (9.6V for 12V batteries). If the voltage drops significantly below this level, the battery is likely weak or failing.
Interpreting Results and Taking Action
If the battery passes the load test, it's in good condition and can reliably power your camper. However, if the voltage drops excessively, it indicates a weakened battery that may need replacement or further diagnosis. Factors like age, usage patterns, and maintenance history can contribute to battery degradation.
Safety First: Always prioritize safety when working with batteries. Wear safety goggles and gloves, ensure proper ventilation, and be cautious of potential sparks or acid leaks. If you're unsure about any aspect of the test, consult a qualified technician.
Marine Boot Camp Pay: Understanding Compensation During Recruit Training
You may want to see also
Frequently asked questions
Use a digital multimeter set to the DC voltage setting. Connect the multimeter’s positive (red) lead to the battery’s positive terminal and the negative (black) lead to the negative terminal. A fully charged 12V battery should read around 12.6 to 12.8 volts.
Perform a load test using a battery load tester. Apply a load equivalent to 50% of the battery’s amp-hour rating for 15 seconds. If the voltage drops below 9.6 volts, the battery may be weak or failing.
Yes, you can use a simple visual inspection and basic tools. Check for corrosion on terminals, swelling, or leaks. Turn on interior lights or appliances; dimming or slow operation may indicate a weak battery.
Test your camper battery at least once every 3 months, especially before and after storage or extended trips. Frequent testing helps identify issues early and ensures the battery is reliable.
