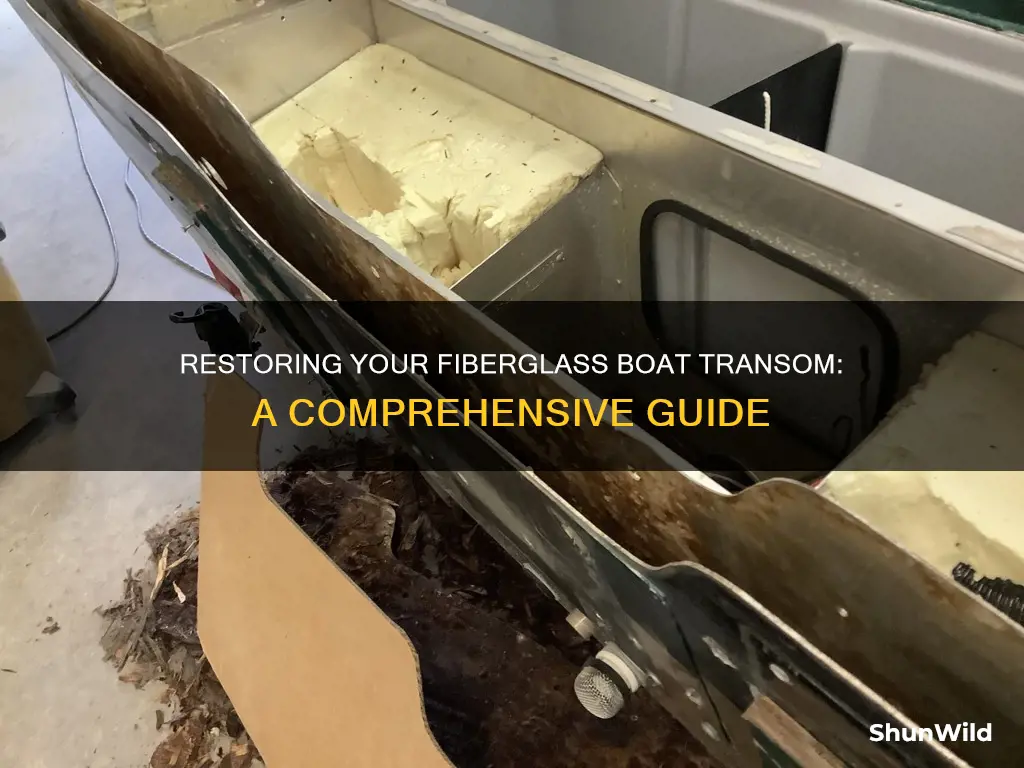

The transom of a boat is one of the most important structural parts, supporting the weight of the motor and maintaining the shape of the boat. It is also one of the first parts of the structure to go rotten. This rot is caused by water saturation, which leads to delamination and eventual destruction of the wood. To redo a fibreglass boat transom, you will need to remove the internal structure of the boat to access the transom. The rotten wood must be cut away and replaced, and the fibreglass skin glued back in place. The transom should be bonded using epoxy resin and appropriate fillers, and sealed with epoxy to prevent water from reaching the plywood core.
Explore related products
What You'll Learn
Removing the internal structure
Firstly, it is important to understand the structure of the boat. Transoms are a major structural part of fibreglass boats, especially for outboards, as they support the weight of the motor and maintain the shape of the boat. They also serve as a mounting point for various accessories. Over time, cracks can develop in the fibreglass skin due to the weight of the motor, and moisture can penetrate the plywood core, leading to delamination and rot.
When removing the internal structure, start by taking out all the components that are not part of the boat's basic structure, such as seats, tanks, and other installed equipment. If your boat is an I/O model, you will also need to remove the engine. This step is crucial to creating enough space to access and work on the transom. Be careful when removing these components, and try to keep them organised and labelled, so you can put them back correctly later.
Next, you will need to carefully inspect the transom and identify the areas that require repair. Look for signs of water damage, rot, or delamination. This step is important because it will guide the next steps of the repair process. Take note of the extent and location of the damage, as this will determine how much of the internal structure you need to remove.
Now, let's focus on removing the damaged internal structure. Use appropriate tools to carefully disassemble and extract the affected parts. This may involve cutting away sections of the fibreglass or plywood that are damaged beyond repair. Common tools for this step include angle grinders, circular saws, pry bars, and chisels. Be cautious not to damage the surrounding structure or the exterior fibreglass layers and gel coat during this process. If the plywood is severely deteriorated, you may be able to peel off the fibreglass, but for more stubborn areas, you might need to use pry bars or other specialised tools.
Finally, once you have removed the damaged internal structure, it is important to prepare the remaining surfaces for the next steps of the repair. Sand and clean the exposed areas to create a smooth base for the new core material. If there is any remaining wood, treat it with a product like CPES (Clear Penetrating Epoxy Sealer) to harden it and prevent future rot. Ensure that you follow the instructions for the specific products you are using, as preparation and treatment methods may vary.
Remember, safety should always be a priority when working on your boat. Wear appropriate protective gear, including gloves, eye protection, and a respirator, especially when working with power tools or chemicals.
Best Boat Launch Spots at Budd Lake
You may want to see also
Explore related products
Repairing the transom core
The transom of a boat is one of the most important structural parts, supporting the weight of the motor and maintaining the shape of the boat. It is also one of the first parts of the structure to rot, due to water saturation. This is a guide on how to repair the transom core of a fibreglass boat.
First, you need to remove all internal structures, seats, tanks, and the engine if possible, to access the transom. Then, cut away the inside layer of fibreglass, being careful not to stress or crack the exterior fibreglass layers. If the plywood is in poor condition, the fibreglass will be easy to peel off, otherwise, you may need to use pry bars. Once the fibreglass is removed, cut away the rotted wood and clean the surfaces. Treat any remaining wood with CPES to harden it and eliminate rot fungi.
Next, cut the new plywood to size, staggering the joints for maximum strength if you are using multiple layers. Dry fit the first layer of plywood, applying pressure to hold it in place and drilling holes to bolt it in place. Mix a batch of Layup & Laminating Resin, adding sawdust to extend it, and pour it into the transom. Drop in the wood and continue adding resin until it fills the vacancies and reaches the top of the transom. Allow a couple of days to cure. You can then spread a paste of sawdust and resin to finish off the inside top of the transom.
Finally, put the top back on the transom, using a new top made from aluminium, or an epoxy/glass cloth laminate. All edges of any openings should be sealed with epoxy to prevent water from reaching the plywood core.
Boat Websites and Hidden Prices: Why the Secrecy?
You may want to see also
Explore related products
Sealing the plywood core
To seal the plywood core, you will need to start by accessing the core itself. This can be done by removing the fibreglass skin from either the outside or the inside of the transom, depending on the design of your boat. If you are working from the inside, you will need to remove all internal structures, such as seats and tanks, and the engine if your boat is an I/O model. Once you have access to the core, you can begin the process of sealing it.
If the plywood core is damaged or rotted, it will need to be replaced. This can be done by cutting away the damaged areas and replacing them with new plywood. It is important to stagger the joints of the new plywood for maximum strength. The plywood should be cut to size and shape and bonded in place with resin and appropriate fillers. Epoxy will create a stronger bond than polyester resin and is recommended for this reason. Drill several holes through the plywood and the fibreglass transom and bolt it in place to hold it securely.
Once the plywood core is in place, you will need to seal it to prevent water from reaching it. This can be done by lapping the fibreglass over the inside of the hull around the edges of the transom. This will create a strong structural bond between the plywood core and the hull. All edges of any openings or holes should be completely sealed with epoxy to prevent water penetration. If using fasteners, it is recommended to drill oversized holes, fill them with epoxy/filler, and then re-drill them to the proper size.
Fiberglassing Styrofoam Boats: A Comprehensive Guide to Success
You may want to see also
Explore related products
Using epoxy resin
Redoing a fibreglass boat transom with epoxy resin is a complex process, but it can be done. Here is a step-by-step guide on how to do it:
First, you need to gain access to the wood inside the transom. This usually involves removing or cutting away the top of the transom. Once you have access, remove all the rotten wood you can and let the remaining wood dry out. You can force-dry it with a hairdryer if needed.
Next, treat the remaining wood with a Clear Penetrating Epoxy Sealer (CPES) to harden it and protect it from future rot. Cut plywood to size, ensuring it matches the thickness of your transom, and coat it generously with CPES, especially the edges. After the CPES has cured, bond the plywood pieces together with a thick, slow-setting, flexible epoxy resin, such as Layup & Laminating Resin.
Now, you can mix a batch of Layup & Laminating Resin and pour it into the transom. Drop in your wood and keep adding resin until it fills the vacancies around the wood and reaches the top of the transom. Let it cure for a couple of days. You can then spread a paste of sawdust and resin to finish off the inside top of the transom.
Finally, put the top back on the transom. You can use the original top, or a new top made from aluminium or an epoxy/glass cloth laminate. Your transom is now repaired and protected from future rot.
It is important to note that epoxy resin is expensive, and it is crucial to follow the steps carefully to ensure a strong and durable repair. Additionally, make sure to protect any parts of the boat that you do not want to get epoxy on, as it can be difficult to transition from epoxy to other types of resin in future builds.
Swimming Against the Tide: Defying the Boat Captain's Orders
You may want to see also
Explore related products
Painting the transom
Before painting the transom, you need to ensure that the wood has been treated and any rot has been eliminated. This can be done using a product like CPES (Clear Penetrating Epoxy Sealer), which penetrates and hardens the wood, preventing future rot problems. Once the wood has been treated, the next step is to replace the damaged plywood and reinforce the structure with epoxy resin. The epoxy resin should be slow-setting, strong, and slightly flexible, and it should be used to fill in any vacancies around the wood. It is important to use epoxy resin instead of polyester resin as it forms a stronger bond with the old fibreglass.
After the epoxy resin has cured, the surface can be prepared for painting. This involves scrubbing the surface with warm soap and water to remove any amine blush. Once the surface is clean and dry, it can be painted with a polyurethane paint or a similar product. It is important to note that restoring the boat's exterior to its original condition can be expensive, and refinishing costs can be a significant part of the repair bill.
To isolate the structural and cosmetic repairs to the transom alone, it is important to take care when drilling holes for mounting hardware or accessories. All edges of any openings should be completely sealed with epoxy to prevent water from reaching the plywood core. By isolating the repairs to the transom, you can better disguise the fact that a repair ever took place, as matching colour and texture at a corner is less critical due to the visual break created by the transom corner.
Patching Boat Floors: Fiberglass Repair Guide
You may want to see also
Frequently asked questions
If you notice water leaking from holes in the transom, it usually means that part of the transom will need to be replaced. Transoms are major structural parts of fiberglass powerboats and support the weight of the motor. Over time, cracks can develop, and moisture can penetrate the plywood core, leading to delamination and eventual rot.
You will need materials such as epoxy resin, fillers, and plywood. The epoxy resin should be thick, simple to use, slow-setting, strong, and slightly flexible. The fillers must be strong and able to bond with the wood or resin and be sandable. The plywood should be cut to size and shape and bonded in place with resin.
First, determine the extent of the damage and gain access to the damaged core by removing the fiberglass skin from the outside or inside of the transom. Remove the delaminated and wet plywood core and replace it with new plywood. If the fiberglass skin is in good condition, reuse it by gluing it back in place over the new core. Repair any cuts made in the fiberglass skin with multiple layers of fiberglass cloth and epoxy. Finally, scrub the epoxy with warm soap and water to remove any amine blush, and paint it if desired.
