Partitioning an external hard drive for Boot Camp allows you to install and run Windows on your Mac using an external storage device, which is particularly useful if you lack sufficient internal space or prefer not to modify your primary drive. To begin, ensure your external hard drive is formatted as GUID Partition Table (GPT) and has enough free space for the Windows installation. Using Disk Utility on your Mac, you can create a new partition specifically for Boot Camp, allocating the necessary storage while keeping your data separate. Once partitioned, you’ll need to download the Windows Support Software from Apple, which includes the necessary drivers for your Mac hardware. Finally, follow the Boot Camp Assistant prompts to install Windows on the newly created partition, enabling seamless dual-boot functionality between macOS and Windows from your external drive.
| Characteristics | Values |
|---|---|
| Purpose | To create a partition on an external hard drive for installing Windows via Boot Camp on a Mac. |
| Required macOS Version | macOS High Sierra (10.13) or later. |
| Minimum External Drive Size | 64 GB (recommended 128 GB or more for better performance). |
| File System for Windows Partition | exFAT or NTFS (NTFS is preferred for Boot Camp). |
| Boot Camp Assistant Role | Guides the partitioning process and Windows installation. |
| Partition Size Recommendation | At least 64 GB for Windows 10/11 (more for applications and storage). |
| Disk Utility Requirement | Used to format and partition the external drive before Boot Camp. |
| Driver Installation | Boot Camp drivers are installed automatically during Windows setup. |
| Compatibility | Works with Intel-based Macs (M1/M2 Macs require virtualization tools). |
| Backup Requirement | Backup important data before partitioning, as it erases the drive. |
| External Drive Connection | Must be connected via USB 3.0 or Thunderbolt for optimal performance. |
| Windows ISO Requirement | A Windows 10/11 ISO file is needed for installation. |
| Time Estimate | 1-2 hours (depending on drive speed and Windows installation). |
| Post-Installation Steps | Install Boot Camp drivers and update Windows after installation. |
| Limitations | External drive must be used for Boot Camp; internal drive partitioning is separate. |
Explore related products
What You'll Learn
- Check Compatibility: Ensure your Mac, external drive, and Windows version meet Boot Camp requirements
- Format Drive: Use Disk Utility to format the drive as ExFAT or NTFS
- Create Partition: Allocate space for Windows installation using Boot Camp Assistant
- Install Windows: Boot from Windows ISO and follow on-screen instructions
- Post-Install Setup: Install Boot Camp drivers for optimal Windows functionality on Mac
Check Compatibility: Ensure your Mac, external drive, and Windows version meet Boot Camp requirements
Before attempting to partition an external hard drive for Boot Camp, it's crucial to verify that your Mac, external drive, and Windows version are compatible with the process. Apple's Boot Camp Assistant is designed to work with specific hardware and software configurations, so ensuring compatibility is the first step to a successful installation. Start by checking your Mac model and its specifications. Boot Camp supports a range of Mac models, but not all, especially older ones. Your Mac must have an Intel processor, as Boot Camp does not support Apple Silicon (M1 or later) Macs for Windows installation. Additionally, ensure your Mac is running a compatible version of macOS, such as macOS High Sierra or later, as earlier versions may not support the latest Boot Camp features.
Next, verify the compatibility of your external hard drive. The drive must be formatted as GUID Partition Map, which is the standard for Intel-based Macs. It should also have sufficient storage space, as Windows requires at least 64 GB for the installation, though 128 GB or more is recommended for optimal performance. USB 3.0 or Thunderbolt drives are preferred for faster data transfer speeds, but USB 2.0 drives can work if speed is not a priority. Ensure the drive is in good working condition and free from errors, as a faulty drive can cause installation issues.
The Windows version you plan to install is another critical factor. Boot Camp officially supports Windows 10 and Windows 11, but the specific version (e.g., 64-bit) and build must be compatible with your Mac model. Check Apple’s Boot Camp support page for a list of supported Windows versions for your Mac. Older versions like Windows 7 or 8 are no longer supported by Boot Camp, so using them may require additional workarounds or may not function correctly.
Once you’ve confirmed compatibility, ensure your Mac meets the minimum system requirements for running Windows. This includes having at least 4 GB of RAM (8 GB or more is recommended) and sufficient free space on your Mac’s internal drive for the Boot Camp drivers. Your Mac should also be updated to the latest version of macOS to ensure all necessary Boot Camp components are available.
Finally, double-check that your external drive is properly connected and recognized by your Mac. Open Disk Utility to confirm the drive is visible and formatted correctly. If the drive is not recognized or formatted improperly, you may need to reformat it using Disk Utility, keeping in mind that this will erase all data on the drive. By thoroughly checking compatibility at this stage, you can avoid potential issues during the Boot Camp installation process and ensure a smoother experience.
Discover Dubstep Music in Boot Camp: A Beginner's Guide
You may want to see also
Explore related products
Format Drive: Use Disk Utility to format the drive as ExFAT or NTFS
Before proceeding with the Boot Camp installation, it's essential to format your external hard drive to ensure compatibility with both macOS and Windows. The recommended file systems for this purpose are ExFAT or NTFS. ExFAT is a widely supported file system that works seamlessly with both operating systems, allowing you to transfer files between them without any issues. NTFS, on the other hand, is a Windows-specific file system but can be read and written to on macOS with the help of third-party software. To format your drive, you'll be using Disk Utility, a built-in macOS application that enables you to manage and configure storage devices.
To begin formatting your external hard drive, connect it to your Mac and launch Disk Utility. You can find Disk Utility in the Utilities folder within the Applications folder or by using Spotlight Search (Cmd + Space) and typing "Disk Utility." Once Disk Utility is open, select your external hard drive from the list of available devices on the left-hand side. Ensure you've chosen the correct drive, as formatting will erase all data on the selected device. With the drive selected, click on the "Erase" tab at the top of the Disk Utility window. Here, you'll be prompted to choose a name for your drive and select the file system format.
In the "Format" dropdown menu, you'll find various file system options. For Boot Camp purposes, select either ExFAT or NTFS. If you plan to use the drive primarily for data transfer between macOS and Windows, ExFAT is the recommended choice due to its native support on both platforms. However, if you intend to store large files (over 4GB) or require advanced NTFS features like file permissions and compression, opt for NTFS, keeping in mind that you'll need additional software to enable write support on macOS. After selecting the desired file system, click "Erase" to initiate the formatting process.
The formatting process may take a few moments, depending on the size of your external hard drive. Once completed, your drive will be ready for use with Boot Camp. If you've chosen NTFS, remember to install a third-party NTFS driver for macOS to enable full read and write capabilities. This step is crucial, as macOS can only read NTFS drives by default. There are several NTFS drivers available, both free and paid, offering varying levels of functionality and support. Research and choose a driver that best suits your needs.
After formatting and, if necessary, installing an NTFS driver, your external hard drive is now prepared for the Boot Camp installation. You can proceed with the Windows installation process, knowing that your drive is compatible with both operating systems. Remember that formatting erases all data on the drive, so ensure you've backed up any important files before proceeding. With your drive correctly formatted, you're one step closer to successfully setting up Boot Camp and enjoying the benefits of running Windows on your Mac.
Thoughtful Gift Ideas for Your Recruit Graduating Boot Camp
You may want to see also
Explore related products

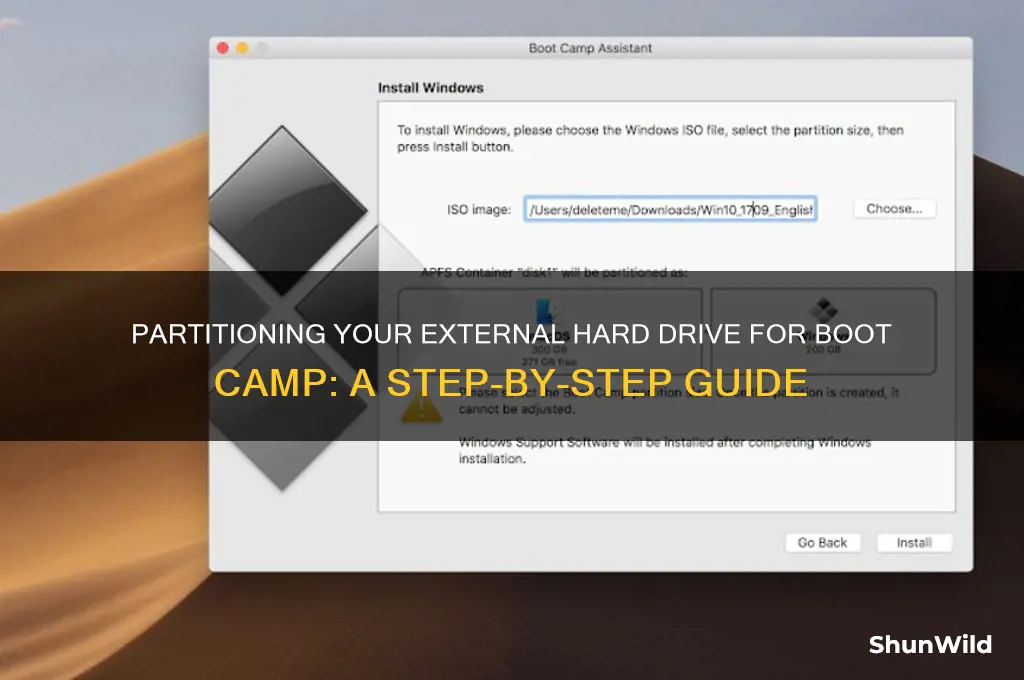

Create Partition: Allocate space for Windows installation using Boot Camp Assistant
To create a partition for Windows installation using Boot Camp Assistant, you'll first need to connect your external hard drive to your Mac. Ensure the drive is properly formatted as either APFS or HFS+, and it has sufficient free space for the Windows operating system. Open Boot Camp Assistant, which can be found in the Utilities folder within Applications. The assistant will guide you through the process, starting with selecting the tasks you want to perform. Check the box for "Install Windows or another version of macOS" and click "Continue."
In the next step, Boot Camp Assistant will prompt you to allocate space for the Windows partition. You’ll see a slider that allows you to adjust the partition size. Drag the slider to allocate the desired amount of space for Windows, keeping in mind that Windows requires at least 64 GB of free space for a successful installation. The assistant will display the available and allocated space, helping you make an informed decision. Once you’ve set the partition size, click "Install" to proceed.
Boot Camp Assistant will then begin partitioning your external hard drive. This process involves splitting the drive into two sections: one for macOS and one for Windows. The assistant will automatically format the new partition as exFAT, a file system compatible with both macOS and Windows. During this stage, ensure your Mac remains connected to a power source and does not go to sleep, as interrupting the process could lead to data loss or drive corruption.
After the partition is created, Boot Camp Assistant will download the necessary Windows support software. This software includes drivers that ensure hardware compatibility between your Mac and Windows. Once the download is complete, the assistant will prompt you to insert a USB flash drive (16 GB or larger) to create a Windows installer. Follow the on-screen instructions to prepare the USB drive, which will be used to boot into the Windows installation process.
Finally, with the partition created and the USB installer ready, restart your Mac and hold down the Option key to access the boot menu. Select the Windows installer USB drive to begin the installation process. Follow the Windows setup prompts, selecting the newly created partition as the installation destination. Once Windows is installed, you can use Boot Camp Assistant to switch between macOS and Windows by restarting your Mac and holding down the Option key to choose the desired operating system.
Understanding Boot Camp WODs: High-Intensity Workouts for Fitness Enthusiasts
You may want to see also
Explore related products
Install Windows: Boot from Windows ISO and follow on-screen instructions
To install Windows using Boot Camp on your Mac, you’ll need to boot from a Windows ISO file. Start by ensuring your external hard drive is properly partitioned for Boot Camp. Once the partition is ready, insert a USB drive containing the Windows ISO file into your Mac. Restart your Mac and hold down the Option (Alt) key immediately after restarting. This will bring up the Startup Manager, where you can select the Windows USB installer to boot from. Choose the Windows installer and press Enter to begin the installation process.
After booting from the Windows ISO, the Windows Setup screen will appear. Follow the on-screen instructions to select your language, time, and keyboard input preferences. Click Next, then click Install Now to proceed. You’ll be prompted to enter your Windows product key; if you’re installing Windows 10 or 11, you can skip this step by clicking I don’t have a product key and activate Windows later. The installer will then load the necessary files, which may take a few minutes.
Once the files are loaded, you’ll reach the Where do you want to install Windows? screen. Here, you’ll see the external hard drive partition you created for Boot Camp. Select the partition labeled BOOTCAMP and click Next. If the partition isn’t formatted correctly, you may need to delete it and create a new NTFS partition using the installer’s tools. Be cautious, as deleting the partition will erase all data on it. After selecting or creating the correct partition, click Next to begin the installation.
The Windows installer will now copy files, install features, and complete the installation process. Your Mac may restart several times during this phase, which is normal. Once the installation is complete, you’ll be guided through the initial Windows setup, including creating a user account, setting preferences, and connecting to a network. Follow the prompts to complete these steps. After setup, Windows will be fully installed on your external hard drive, ready for use with Boot Camp.
To switch between macOS and Windows, restart your Mac and hold down the Option (Alt) key to access the Startup Manager. From there, select either the macOS partition or the Windows partition on your external hard drive. Ensure your external drive is connected whenever you want to boot into Windows. This method allows you to run Windows on your Mac without affecting your macOS installation, providing flexibility for both operating systems.
Reasons for Early Discharge: Understanding Boot Camp Dismissal Criteria
You may want to see also
Explore related products
Post-Install Setup: Install Boot Camp drivers for optimal Windows functionality on Mac
After successfully partitioning your external hard drive and installing Windows via Boot Camp, the next critical step is to install the Boot Camp drivers. These drivers ensure that Windows functions optimally on your Mac hardware, enabling features like trackpad gestures, keyboard backlighting, and proper graphics acceleration. Here’s a detailed guide to completing the post-install setup.
Step 1: Download Boot Camp Drivers
Before proceeding, ensure your Mac is connected to the internet. Open Windows on your external hard drive and navigate to the Apple Boot Camp software download page. Alternatively, you can use the Boot Camp Assistant on your Mac to download the drivers to a USB flash drive. The drivers are typically provided as a `.exe` file or a folder containing necessary installation files. If you’re using a USB drive, insert it into your Mac, and Boot Camp Assistant will guide you through copying the drivers to the drive.
Step 2: Run the Boot Camp Driver Installer
Once the drivers are downloaded or copied to a USB drive, locate the installer file in Windows. Double-click the `.exe` file or navigate to the folder containing the setup files. Follow the on-screen instructions to install the drivers. The process may take several minutes, and your screen might flicker or restart during installation. This is normal, as the drivers are configuring hardware components like audio, graphics, and networking.
Step 3: Verify Driver Installation
After installation, restart your Windows system to ensure all drivers are properly loaded. Check Device Manager (accessible by right-clicking the Start menu and selecting *Device Manager*) to ensure there are no unknown devices or errors. All hardware components, such as the trackpad, keyboard, and graphics card, should be recognized without any warning icons. If issues persist, re-run the Boot Camp driver installer or manually update specific drivers from Device Manager.
Step 4: Configure Windows Update
With the Boot Camp drivers installed, enable Windows Update to ensure your system receives the latest patches and improvements. Go to *Settings > Update & Security > Windows Update* and click *Check for updates*. Install any available updates, including optional ones, as they may include enhancements for Mac hardware compatibility. Restart your system if prompted to complete the update process.
Step 5: Test Functionality
Finally, test all hardware features to ensure optimal functionality. Check trackpad gestures, keyboard backlighting, audio output, and graphics performance. Verify that Wi-Fi and Bluetooth are working correctly. If any issues arise, revisit the Boot Camp driver installation or consult Apple Support for troubleshooting steps. Properly installed drivers will ensure a seamless Windows experience on your Mac hardware.
By following these steps, you’ll complete the post-install setup for Boot Camp, ensuring Windows runs smoothly on your external hard drive with full hardware support.
Understanding MyFitnessPal's Boot Camp Feature: A Comprehensive Guide
You may want to see also
Frequently asked questions
Boot Camp is a utility on macOS that allows you to install and run Windows on your Mac. Partitioning an external hard drive for Boot Camp creates a separate section on the drive specifically for the Windows installation, ensuring compatibility and proper functionality.
Not all external hard drives are suitable for Boot Camp. The drive must be formatted as GUID Partition Table (GPT) and preferably connected via USB 3.0 or Thunderbolt for optimal performance. Ensure the drive has enough free space for the Windows installation.
Open Disk Utility on your Mac, select the external hard drive, click "Partition," and add a new partition. Format it as exFAT or NTFS (NTFS is recommended for Windows compatibility). Allocate enough space for Windows, then use Boot Camp Assistant to install Windows on the new partition.
Partitioning the drive itself won’t erase data, but creating a new partition may require resizing existing partitions, which could lead to data loss if not done carefully. Back up your data before proceeding.
Yes, you can partition the external hard drive to have one section for macOS storage and another for Boot Camp. However, ensure the Boot Camp partition is formatted correctly (NTFS) and has enough space for the Windows installation.
