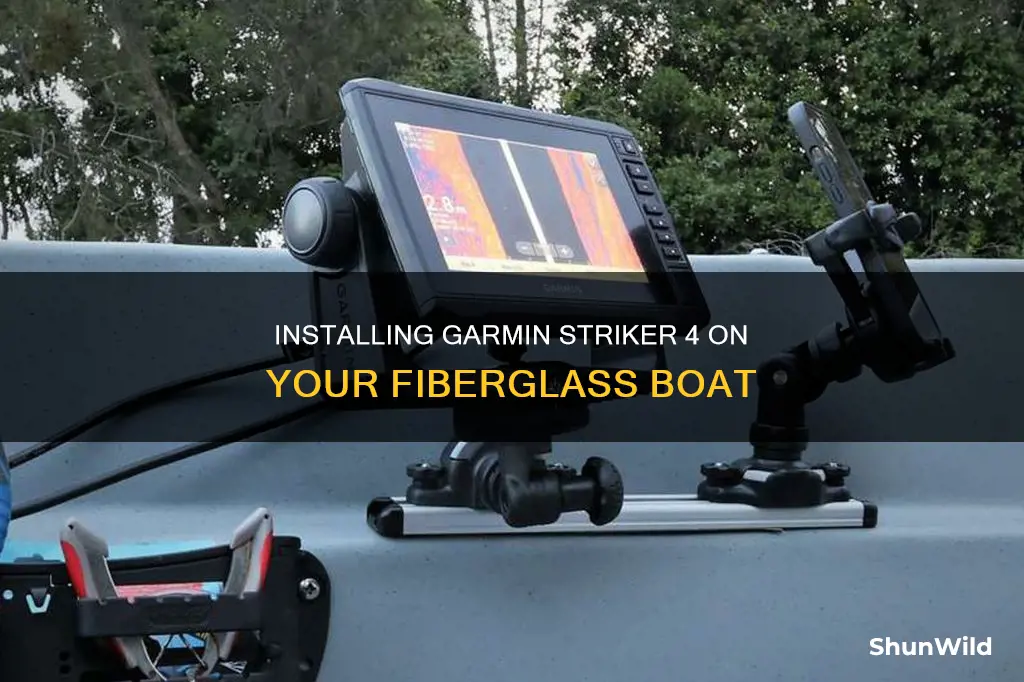

The Garmin Striker 4 is a fishfinder device that helps anglers locate fish and structures under the water surface. It is equipped with advanced sonar technology, GPS, and chart plotting features. Installing the Garmin Striker 4 on a kayak or fiberglass boat is a straightforward process that can be done in a few hours, but it requires careful planning and execution to avoid damaging the device and the boat. In this article, we will discuss the steps involved in installing the Garmin Striker 4 on a fiberglass boat, including choosing the right transducer, preparing the boat, and mounting the device.
| Characteristics | Values |
|---|---|
| Device | Garmin Striker 4 |
| Device Type | Fishfinder |
| Installation | Straightforward but requires caution and can be complicated |
| Installation Time | A few hours |
| Installation Expertise | Experienced technicians are recommended |
| Installation Location | Kayak or fiberglass boat |
| Installation Surface | Hull, transom, or side of the boat |
| Installation Materials | Wax ring, mineral oil, petroleum jelly, duct tape, epoxy, PVC boards, antifreeze, duct seal |
| Installation Considerations | Structural design of the boat, transducer type, turbulent water flow |
Explore related products
What You'll Learn
Installing a transducer on a fiberglass boat
Firstly, it is important to understand the structural design of the boat and choose the best transducer for it. The transducer can be installed through the hull or at the boat's transom, and it is recommended to opt for a transducer with an adjustable-angle bracket for a more straightforward installation. It is crucial to ensure that the transducer is securely mounted to get accurate readings.
For a thru-hull installation, you will need to cut a hole in the hull and mount the transducer inside. This process requires careful measurement and execution to avoid damaging the boat. You can use epoxy or silicone to secure the transducer in place. Some people also use a wax ring, which is simple to install and can last for years, but it may move on very hot days. Another option is to use a box and mount the transducer inside, filled with antifreeze or mineral oil, to ensure a proper connection with the hull. This method allows for testing the location before permanent installation.
When installing the transducer, it is important to be cautious and prudent. A simple mistake can damage the equipment, so it is recommended that only experienced technicians perform the installation if you are a beginner. Ensure that all readings on the screen are accurate and clear before using the Garmin Striker 4 for fishing.
By following these steps and paying attention to detail, you can successfully install a transducer on your fiberglass boat, enhancing your fishing experience with the Garmin Striker 4's advanced technology.
Orienting Boat Batteries: A Comprehensive Guide
You may want to see also
Explore related products
Using a wax ring for the transducer
The Garmin Striker 4 is a fishfinder device equipped with advanced sonar technology, GPS, and chart plotting features. It is a popular choice among fishing enthusiasts. Installing a transducer on a boat improves the fishing experience by enabling anglers to breed with precision and target different fish species.
The wax ring method offers several advantages, including no holes in the boat, easy servicing and replacement, and the ability to angle the transducer forward like forward-looking sonar. This technique has been used by some boat owners for over 30 years without any issues.
However, it's important to consider that the wax is pressed against the hull, which can affect the wax's temperature. The wax ring method may be messier than other installation methods, and it only provides one shot to get it perfect.
A Guide to Identifying Oregon Boat Titles
You may want to see also
Explore related products
Using a box to mount the transducer
To begin the installation process, you will need to purchase a suitable box or enclosure for the transducer. This can be made of plastic, HDPE, or marine-grade plywood. The box should be large enough to fit the transducer comfortably and allow for proper ventilation and drainage.
Once you have the box, you will need to identify a suitable location on your fiberglass boat to mount it. Consider factors such as the transducer's cable length, the depth of the water you will be fishing in, and any areas on the boat that may cause interference. Mark the location and use a drill to create pilot holes in the fiberglass. Apply a generous amount of marine-grade sealant to the holes and surrounding area to prevent water ingress.
Next, secure the box to the boat using stainless steel screws or bolts. Ensure that the screws are also treated with marine sealant to create a watertight seal. You may also want to consider using nylon lock nuts and bolts for added security.
Finally, place the transducer inside the box and connect it to the power source and any necessary sensors or devices. Test the transducer to ensure it is functioning properly and make any necessary adjustments to the bracket or mounting angle for optimal performance.
By following these steps and paying close attention to the specifics of your boat and transducer, you can confidently install the Garmin Striker 4 using a box mount.
Tunnel Hull Boat Driving: Tips and Tricks
You may want to see also
Explore related products
The pros and cons of in-hull installation
The Garmin Striker 4 is a fishfinder device that assists anglers in locating fish and structures under the water surface. It is equipped with advanced sonar technology, GPS, and chart plotting features. When installing the Garmin Striker 4 on a fiberglass boat, one option to consider is in-hull installation. This method involves mounting the transducer inside the hull of the boat, either through the hull or at the boat's transom. Here are the pros and cons of in-hull installation:
Pros of In-Hull Installation:
- Clean Installation: In-hull installation keeps the exterior of the boat clean and uncluttered. There are no external mounts or devices, giving the boat a sleek and unobtrusive look.
- Protection: Mounting the transducer inside the hull protects it from potential damage caused by external factors such as debris, collisions, or turbulent water flow.
- Performance: In-hull transducers can provide accurate readings even at high speeds. They are capable of maintaining bottom depth readings at various speeds and in different water conditions.
- Shallow Water Maneuverability: In-hull transducers are suitable for boats that need to navigate shallow waters. They can be adjusted to prevent the propeller from hitting the bottom, providing access to secluded fishing spots.
Cons of In-Hull Installation:
- Installation Complexity: Installing a transducer through the hull is more complicated and may require the expertise of experienced technicians. It is crucial to mount the transducer correctly to avoid issues with readings and performance.
- Replacement Challenges: If issues arise with an in-hull transducer, replacing it can be challenging and may require significant effort and knowledge.
- Hull Material Considerations: The effectiveness of in-hull transducers can be influenced by the hull material. For example, fiberglass hulls may require the use of resin and powdered fiberglass for installation and replacement.
- Reading Inconsistencies: In some cases, in-hull transducers may provide inconsistent readings, such as incorrect depth measurements or unusual bottom contour readings.
The Boys in the Boat: Olympic Gold Triumph
You may want to see also
Explore related products
Using a thru-hull transducer
The transducer is a crucial component of the Garmin Striker 4, sending and receiving sonar signals. To prepare the transducer for installation, attach the power cable to the transducer using electrical tape. Then, wrap the cable around the transducer and secure it with another piece of electrical tape.
When installing a thru-hull transducer, the first step is to search for an existing hole for the transducer port. The hole should be large enough for the transducer to fit through the hull. If there is no existing hole, you will need to drill one, taking precautions to ensure it is watertight. Apply some silicone sealant to the hole and secure the transducer with bolts, tightening them with a wrench. You can also apply electrical manufacturing tape to wrap up the wires.
Another method for installing a thru-hull transducer is to use a wax ring or mineral oil. This method involves bedding the transducer in caulk or wax, ensuring there are no voids between the transducer and the hull. One user recommends using a plastic bag full of water to test the signal before securing the transducer with silicone. Another option is to use a plastic container as a retainer for the silicone, setting the transducer at a slight forward angle to read what's in front of the boat.
If you are mounting the transducer directly to the hull, use silicone sealant to create a watertight seal. You can also use a transducer scupper, following the manufacturer's instructions. Finally, connect the power cable to the Garmin Striker 4 device, ensuring all connections are secure and tightening any loose connections with electrical tape.
Packing a Boat Drive Shaft: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The Garmin Striker 4 is a fishfinder device that helps anglers locate fish and structures under the water surface. It is equipped with advanced sonar technology, GPS, and chart plotting features.
Installing a transducer on a boat significantly improves the fishing experience by enabling you to locate fish with precision and identify different species.
It is important to consider the structural design of your boat and select a transducer that is compatible. Choose a transducer with ample side denotation and check the manufacturer's guide for more information.
The duct seal is easily removable and reusable, but it may cause temperature readings to be inaccurate. There may be a slight loss of functionality, but it is a cheap and mess-free option.
You can install the transducer through the hull or at the boat's transom. It is a complicated process, so it is recommended to seek assistance from experienced technicians. Always refer to the manufacturer's guide for detailed instructions.
