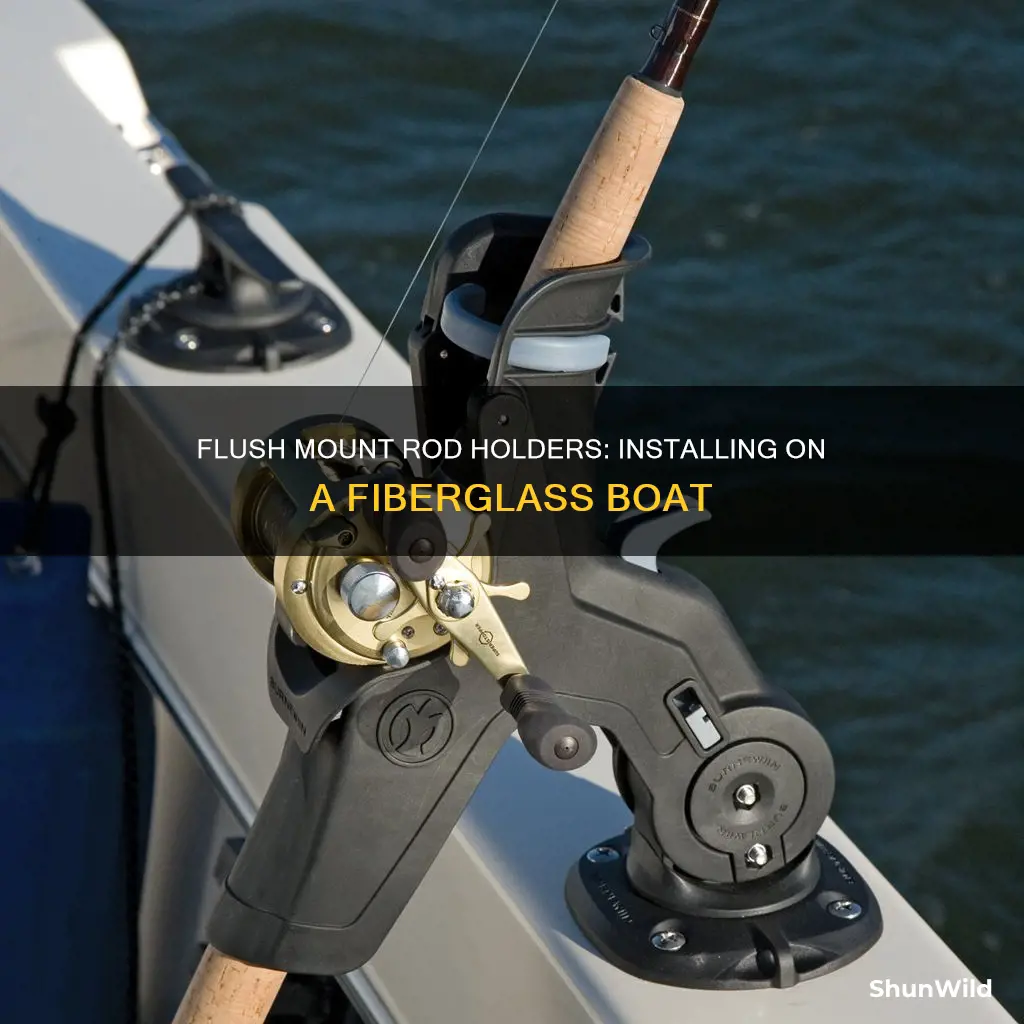

Installing flush mount rod holders on a fiberglass boat is a simple task that can be performed with just a few basic tools. It is important to carefully plan the installation process, taking into account the angle of the rod holder, the size of the hole, and the use of appropriate tools such as a jig and an electric drill. The process involves measuring and marking the desired location, applying protective tape, drilling a pilot hole, adjusting the angle, and securing the rod holder with mounting hardware. Proper installation can enhance the fishing experience and comfort for boat owners.
Explore related products
What You'll Learn
Choosing the right drill and drill bit
First, it is important to determine the angle and orientation of the rod holders in relation to the hull of your boat. This will influence the type of drill and drill bit you need. Consider the angle of the rod holder in line with or out over the water. To get an idea of the angle, place the rod holder upside down on the gunwale, which will indicate the angle at which you need to drill.
Next, select a drill that can accommodate the required angle. A drill guide can be useful for drilling at an angle. It is generally recommended to use an electric drill instead of a battery-operated one, as the former tends to have more power and torque, which is essential for drilling through thick fiberglass.
Now, let's discuss the drill bit. You will need a hole saw with a center bit that matches the size of your rod holder, or slightly larger. A 2 1/2-inch hole saw with a pilot bit is commonly used. This will create a hole that is the correct size for the rod holder to fit snugly. You may also need a longer drill bit, such as a 12" long 1/4" drill bit, depending on the thickness of the fiberglass and the depth of the hole saw.
Before drilling, it is important to mark the drilling area. Measure and mark the desired location of the rod holder, ensuring there are no obstructions underneath the gunwale, such as fuel filler lines or wiring harnesses. Place masking tape over the marked area to protect the gelcoat from damage and to help prevent chipping.
Finally, when you are ready to drill, ensure that you drill at the correct angle by aligning your drill with the rod holder. Drilling straight down may result in a hole that is too large, so adjustments may be needed. You can slightly angle the saw within the hole and cut more out if needed. Remember to wear a dust mask and safety glasses when drilling to protect yourself from fiberglass dust and debris.
Canceling Faraway Boat Summons in Archeage: A Step-by-Step Guide
You may want to see also
Explore related products
$79.99 $89.99
$84.99
Preparing the boat for drilling
Firstly, it is important to carefully select the location for drilling. Consider the angle of the rod holder and choose an accessible area that will not interfere with other activities. Make sure the area under the gunwale is free of any obstructions like fuel filler lines or wiring harnesses. Measure and mark the desired location, taking into account the number of rod holders you plan to install and ensuring they will be within reach. Remember to "measure twice, cut once."
Once the location is decided, protect the surface of the gelcoat by applying tape, such as masking tape, duct tape, or any other suitable covering. This step is essential to prevent chipping, cracking, or splintering of the fiberglass during the drilling process. The tape will act as a safeguard, ensuring that any small chips or cracks remain minimal and are covered by the flange of the rod holder.
After taping, mark the center of the hole on the tape to ensure accurate drilling. If your rod holder comes with a template, use it to outline the cut more precisely. Choose the appropriate size of the hole saw, matching it to the diameter of the rod holder. For a straight, zero-degree holder, you will simply need to cut a basic straight-in circle. However, for angled holders, you will need to adjust the angle of the hole saw accordingly.
Before you begin drilling, it is important to wear the appropriate personal protective equipment (PPE). When cutting into fiberglass, always wear a dust mask and safety glasses to protect yourself from any debris or particles.
Now, you are ready to start drilling. Use a drill bit that matches the size of your rod holder's center, and begin creating the pilot hole. Drill straight through or adjust the angle as needed, depending on the angle of your rod holder. Remember to use an electric drill instead of a battery-operated one, as it provides more power and torque for drilling through thick fiberglass.
Repair Dry Rot on Your Boat: A Step-by-Step Guide
You may want to see also
Explore related products
Drilling the hole
Drilling a hole in a fibreglass boat can be a daunting task, but it is a necessary step to install flush mount rod holders. Here is a step-by-step guide to help you through the process:
Prepare the Drilling Area:
Before you start drilling, it is important to carefully select the location for the rod holders. Consider the angle of the gunwale and the space available to ensure that the rods do not interfere with each other. Once you have decided on the location, use masking tape or duct tape on the area to prevent chipping and cracking of the gelcoat or fibreglass.
Choose the Right Tools:
Select a hole saw with a centre bit that matches the size of your rod holder, or slightly bigger. A 2 1/2-inch hole saw is commonly used. You will also need a drill, and it is recommended to opt for an electric drill over a battery-operated one as the core can be quite thick to drill through.
Drill the Hole:
Place the rod holder upside down and lay it flat at the angle you desire. Align your drill with the rod holder and start drilling. You may need to adjust the angle slightly and cut more out to get the perfect fit. Drill straight through if you need an oval hole for the rod holder. To get a round hole, use a hole saw and drill straight down, but be aware that this may result in a hole that is too big.
Final Adjustments:
After drilling, you may need to grind away some additional fibreglass with a hand file, depending on the angle of your rod holder. You can also use a hand file to create a bevel at the top of the hole to ensure the holder sits flush. Once you are happy with the hole, you can epoxy a washer and nut to the underside.
Remember to wear a dust mask and safety glasses when drilling to protect yourself from any debris or fibres.
The Monkey Business Affair: Unraveling Gary Hart's Boat Name
You may want to see also
Explore related products
Choosing the right screws
First, it is important to understand the specific requirements of your boat and the installation process. Consider the thickness of the fiberglass, the angle of the installation, and the accessibility of the backing. These factors will influence your choice of screws.
Next, select the appropriate type of screws. Stainless steel screws are a popular choice for this type of application. They offer corrosion resistance, which is crucial in a marine environment. You can find stainless steel screws at marine stores or hardware stores.
When it comes to the specific type of stainless steel screws, self-tapping screws are a good option if you are working in areas with no access to the backing. These screws are designed to create their own threaded holes as they are drilled in, eliminating the need for pre-drilled holes. However, if you have access to the backing, you can opt for standard stainless steel screws, bolts, and washers.
Consider the length and size of the screws. The length will depend on the thickness of the material you are drilling into, so make sure to measure the thickness of the fiberglass at the installation point. The size of the screws should correspond to the size of the rod holder and the holes you create. Using a hole saw with a center bit that is slightly larger than the rod holder can help ensure a proper fit.
Finally, pay attention to the angle of the screws. Flush mount rod holders typically require screws to be installed at an angle. A 30-degree angle is commonly mentioned for rod holder installations. Drilling at the correct angle will ensure the screws securely hold the rod holder in place and provide the necessary support.
Remember to follow safety precautions when working with power tools and always wear appropriate protective gear when drilling into fiberglass.
Tipping Etiquette: Should You Tip the Boat Driver?
You may want to see also
Explore related products
Final installation
Now that you've prepared the hole, you can begin the final installation of your flush mount rod holder. Place the rod holder in the hole to ensure it fits. If it doesn't fit, you may need to adjust the hole by drilling at a different angle or grinding away some additional fiberglass with a hand file.
Once you're happy with the fit, mark where the mounting hardware will be installed. Use a drill bit to make the holes for the screws or bolts. To prevent your gelcoat from chipping, it is recommended to countersink each hole.
If you're using self-tapping screws, be sure to tape the surface of the gelcoat with duct tape to prevent cracking when drilling the hole. You can use stainless steel screws, bolts, and washers in areas where you have access to the backing. Be sure to angle the hole saw at the same angle as the rod holder.
If you're using bolts and nuts, get nuts with a nylon insert to prevent them from vibrating loose. You can also epoxy a washer and nut to the underside of the hole.
Finally, install the spacer and backing nut that will hold the rod holder in place. Ensure that the rod holder is flush with the gunwale and securely fastened before use.
The Cigarette Boat Name Origin Story Explained
You may want to see also
Frequently asked questions
First, carefully analyse where you want to install the rod holders, taking into account how many you plan to install, and their angle to the gunwale. Next, measure and mark where you would like to mount the rod holder, ensuring there are no obstructions underneath. Then, place masking tape over the area you plan on drilling to prevent chipping. Drill a pilot hole, then use a straight edge to ensure the rod holder is squarely in the middle of the gunwale. Drill the hole, then use a hand file to grind away any additional fibreglass. Once the rod holder sits flush on the gunwale, mark where the mounting hardware will be installed. Drill three holes, then countersink each hole to prevent chipping. Finally, install the spacer and the backing nut to hold the rod holder in place.
You will need a drill, a 2 1/2-inch hole saw with a pilot bit, a hand file, a drill bit, and a side-cutting bit. You will also need stainless steel screws, bolts, and washers.
The angle will depend on the type of fishing you plan to do. For trolling, a 30° angle places less stress on the reel seat. For kite fishing, a 15° angle is best. For high-speed trolling or deep-dropping, use a 45° angle with a heavy-duty backing plate.
