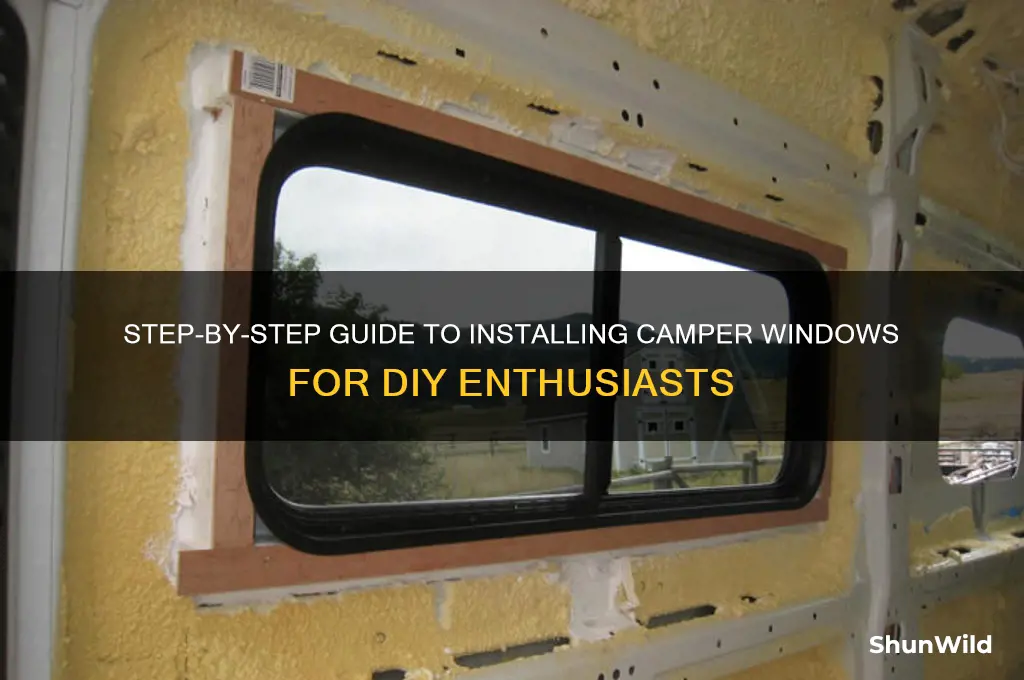

Installing camper windows is a crucial step in enhancing the comfort, functionality, and aesthetic appeal of your recreational vehicle. Whether you're upgrading an existing window or adding one to a custom build, the process requires careful planning, precise measurements, and the right tools. Begin by selecting a window that fits your camper’s dimensions and style, ensuring it meets safety and insulation standards. Next, prepare the opening by removing any old materials and ensuring the frame is clean and level. Follow the manufacturer’s instructions for securing the window, using sealant to prevent leaks and ensure a weather-tight fit. Proper installation not only improves ventilation and natural light but also contributes to the overall durability and value of your camper. With attention to detail and patience, you can successfully install camper windows to elevate your mobile living experience.
| Characteristics | Values |
|---|---|
| Tools Required | Drill, screwdriver, sealant gun, measuring tape, safety gloves, goggles |
| Materials Needed | Camper windows, butyl tape, screws, silicone sealant, insulation foam |
| Window Types | Fixed, sliding, awning, vented, emergency exit |
| Measurement Precision | Measure twice, cut once; ensure exact fit for window frame |
| Sealing Method | Use butyl tape for initial seal, apply silicone sealant for waterproofing |
| Insulation | Add insulation foam around the window frame to prevent leaks and drafts |
| Installation Steps | 1. Measure and mark window location, 2. Cut opening, 3. Apply butyl tape, 4. Insert window, 5. Secure with screws, 6. Seal edges with silicone |
| Safety Precautions | Wear safety goggles and gloves; ensure proper ventilation during cutting |
| Weatherproofing | Test for leaks after installation; reapply sealant if necessary |
| Professional Help | Recommended for complex installations or lack of experience |
| Cost Range | $100–$500 per window (depending on size, type, and brand) |
| Time Required | 2–4 hours per window (varies based on skill level and window type) |
| Maintenance Tips | Regularly inspect seals and clean window tracks to ensure longevity |
Explore related products
What You'll Learn
Measure Window Openings Accurately
Accurate measurements are the cornerstone of a successful camper window installation. A discrepancy of even a quarter-inch can lead to gaps, leaks, and structural instability. Before you pick up a tape measure, understand that camper walls are often curved or uneven, requiring a meticulous approach. Start by cleaning the window opening to remove any debris or residue that could skew your measurements. Use a flexible tape measure to account for curves, and measure the width at the top, middle, and bottom of the opening. Record the smallest dimension to ensure a snug fit.
The height measurement is equally critical but often overlooked in its complexity. Measure from the lowest point of the opening to the highest, again noting any variations. If the opening is tapered, measure both the narrower and wider ends. For rectangular windows, this might seem straightforward, but for custom or irregularly shaped openings, consider creating a template from cardboard or thin wood. This template will serve as a visual guide and can be adjusted until it fits perfectly, providing precise dimensions for your window order.
One common mistake is assuming symmetry. Camper walls, especially in older models, may have warped over time. Always measure both the interior and exterior of the opening to account for any discrepancies. Use a level to ensure your measurements are straight, as even a slight tilt can affect the fit. If you’re replacing an existing window, measure the old window itself as a reference, but don’t rely solely on these dimensions—the opening may have shifted since the original installation.
For those installing multiple windows, consistency is key. Develop a system for recording measurements, such as labeling each opening with a code (e.g., "Driver Side Rear") and noting dimensions in a dedicated notebook or spreadsheet. Double-check all measurements before ordering windows, as errors at this stage can lead to costly delays. If you’re unsure, consult a professional or request a second opinion—a small investment of time can save significant frustration later.
Finally, consider the window’s flange or mounting surface. Measure the depth of the wall where the window will be installed to ensure compatibility with the window’s mounting hardware. Some windows require a specific wall thickness for proper sealing, so consult the manufacturer’s specifications. By treating measurements as a meticulous, detail-oriented process, you’ll lay the foundation for a secure, weatherproof, and aesthetically pleasing camper window installation.
Sexual Violence in Concentration Camps: The Untold Stories of Female Survivors
You may want to see also
Explore related products
Choose Correct Window Type & Size
Selecting the right window type is pivotal for both functionality and aesthetics in your camper. Fixed windows offer a sleek, leak-resistant design ideal for areas where ventilation isn’t a priority, such as above cabinets or in storage compartments. Sliding windows, on the other hand, provide excellent airflow and are perfect for living spaces or kitchens, though they require more maintenance to ensure smooth operation. Awning windows hinge at the top and open outward, allowing ventilation even during light rain, making them a smart choice for climates with unpredictable weather. Each type serves a distinct purpose, so align your choice with the window’s location and intended use.
Size matters just as much as type, and precision is non-negotiable. Measure the rough opening (the hole in your camper wall) at least twice to ensure accuracy, accounting for any curvature or irregularities in the surface. Standard camper window sizes range from 14” x 22” to 24” x 36”, but custom sizes are often necessary for unique builds. A common mistake is underestimating the frame thickness, which can lead to gaps or improper sealing. Use a tape measure and a level to verify dimensions, and consider adding 1/4” to 1/2” to the width and height to allow for adjustments during installation.
Material selection is another critical factor tied to size and type. Acrylic windows are lightweight and shatter-resistant, making them ideal for larger windows in high-traffic areas. Polycarbonate offers similar benefits but with added scratch resistance, though it can yellow over time. Glass windows, while heavier and more expensive, provide superior clarity and durability, often preferred for smaller, high-visibility areas like the driver’s side. Match the material to the window’s size and exposure to ensure longevity and performance.
Finally, consider the U-value and Solar Heat Gain Coefficient (SHGC) when choosing windows, especially for climate-controlled campers. A lower U-value indicates better insulation, crucial for cold climates, while a lower SHGC reduces heat gain in sunny regions. Double-pane windows with low-E coatings are a premium option that balances insulation and light transmission, though they add weight and cost. For budget builds, single-pane windows with reflective films can offer a practical compromise. Always weigh these factors against your camper’s intended use and geographic range.
Camping During COVID-19: Safe Outdoor Adventures and Precautions
You may want to see also
Explore related products
Prepare Surface & Frame for Install
Before installing camper windows, the integrity of the surface and frame is paramount. A compromised frame or uneven surface can lead to leaks, drafts, or structural failure. Begin by inspecting the frame for any signs of rot, rust, or warping, especially in older vehicles. Aluminum frames are less prone to corrosion but can still bend or dent, while wooden frames require careful scrutiny for moisture damage. Use a moisture meter to detect hidden dampness in wooden structures, as even a 16% moisture content can indicate potential issues. Address these problems before proceeding to ensure a solid foundation.
Once the frame is confirmed to be in good condition, clean the surface meticulously. Remove all dirt, old sealant, and debris using a wire brush and a mild detergent solution. For stubborn residues, a plastic scraper or a solvent like acetone can be effective, but test a small area first to avoid damaging the frame. After cleaning, allow the surface to dry completely—at least 24 hours in humid conditions. Proper surface preparation ensures that the sealant adheres correctly, preventing future water infiltration.
Next, measure and mark the window opening with precision. Use a level and a straightedge to ensure the lines are square and aligned with the vehicle’s body. If the existing opening is irregular, consider trimming the frame or adding shims to create a uniform surface. For metal frames, a Dremel tool with a cutting wheel can be used for minor adjustments, while wooden frames may require a jigsaw. Always wear safety goggles and gloves during this step to prevent injury.
Finally, apply a bead of butyl tape or sealant around the window opening, following the manufacturer’s guidelines for thickness and placement. This creates a watertight seal between the window and the frame. Some installers prefer using a combination of butyl tape and silicone sealant for added protection. Ensure the sealant is compatible with both the frame material and the window flange to avoid chemical reactions that could degrade the bond over time. Properly prepared surfaces and frames not only simplify the installation process but also extend the lifespan of the camper windows.
Exploring Tesla Camping Mode: Features, Benefits, and How It Works
You may want to see also
Explore related products
Seal Windows to Prevent Leaks
Sealing windows is a critical step in camper window installation, as even the smallest gap can lead to leaks, drafts, and water damage. The key to a successful seal lies in choosing the right materials and applying them meticulously. Butyl tape, a common choice for its flexibility and adhesive properties, should be applied in a continuous bead around the window frame, ensuring no breaks or thin spots. Silicone sealant, while less flexible, provides a strong, waterproof barrier and is ideal for filling any remaining gaps. The combination of these materials creates a dual-layer defense against the elements, significantly reducing the risk of leaks.
Consider the environmental conditions your camper will face. Extreme temperatures, UV exposure, and constant vibration from travel can degrade seals over time. To combat this, opt for marine-grade sealants designed to withstand harsh conditions. Apply the sealant in a smooth, even layer, using a caulking gun for precision. Press the window into place firmly but gently, ensuring the sealant adheres evenly to both the window and the camper’s exterior. Wipe away excess sealant immediately with a damp cloth to prevent hardening residue, which can compromise the seal’s integrity.
A common mistake is over-tightening screws during installation, which can compress the sealant unevenly and create weak points. Instead, tighten screws gradually in a diagonal pattern, checking for even pressure around the frame. Allow the sealant at least 24 hours to cure fully before exposing the camper to moisture. During this time, avoid movement or vibration that could disrupt the curing process. For added protection, apply a bead of sealant along the exterior edge of the window frame, smoothing it with a tool or gloved finger for a professional finish.
Regular inspection and maintenance are essential to preserving the seal’s effectiveness. Annually, examine the sealant for cracks, peeling, or gaps, especially after prolonged exposure to sun, rain, or cold. Reapply sealant as needed, removing old material with a scraper or solvent before applying fresh product. Keep in mind that prevention is far less costly than repairing water damage caused by neglected seals. By investing time and care into sealing your camper windows, you ensure a dry, comfortable interior for years to come.
Exploring Camp Nou: How Much Time Should You Spend There?
You may want to see also
Explore related products
Secure Windows with Proper Fasteners
Choosing the right fasteners is critical for securing camper windows, as these components bear the brunt of vibration, weather, and structural stress. Unlike standard household windows, camper windows require specialized fasteners that can withstand constant movement and temperature fluctuations. Stainless steel screws, for instance, are ideal due to their corrosion resistance, while butyl tape or sealant should be applied around the frame to create a watertight seal. Avoid using galvanized or carbon steel fasteners, as they are prone to rust and can compromise the window’s integrity over time.
The installation process demands precision to ensure fasteners are neither overtightened nor undertightened. Overtightening can warp the window frame or crack the surrounding material, while undertightening leaves the window vulnerable to leaks and shifting. Use a torque wrench to apply consistent pressure, typically between 10 and 15 foot-pounds, depending on the manufacturer’s specifications. Pre-drilling holes with a bit slightly smaller than the screw diameter prevents material splitting, especially in thinner aluminum or fiberglass camper walls.
A comparative analysis of fastener types reveals that self-tapping screws are often preferred for their ease of installation and secure grip. However, in thicker or denser materials, through-bolts paired with nylon locking nuts provide superior stability. For added security, consider using washers—either stainless steel or rubber—to distribute pressure evenly and reduce the risk of stress fractures. Rubber washers, in particular, act as shock absorbers, minimizing vibration-related wear on the window and frame.
Finally, regular inspection and maintenance of fasteners are essential to prolonging the life of camper windows. Check for loose screws, rust, or sealant deterioration at least twice a year, especially after prolonged exposure to harsh weather conditions. Carry a spare set of fasteners and a portable toolkit during travels to address issues promptly. By prioritizing the right fasteners and proper installation techniques, you not only secure the windows but also enhance the overall safety and comfort of your camper.
Can I Take Three Scouts Camping? Tips and Guidelines for Leaders
You may want to see also
Frequently asked questions
Essential tools include a tape measure, screwdriver, drill, sealant gun, utility knife, and a caulking tool. Additionally, you may need a pry bar, safety goggles, and gloves for safety and precision.
Measure the opening carefully and compare it to the window’s dimensions. Use shims or wood framing to adjust the opening if necessary, ensuring the window is square and level before securing it in place.
Use a high-quality marine-grade or RV-specific sealant, such as butyl tape or silicone sealant, to create a waterproof and durable seal around the window frame. Apply it evenly and smooth it out for a professional finish.
