Hoisting a boat engine is a complex task that requires careful planning and execution. It involves the process of lifting, lowering, or transporting an outboard motor on a boat. This task can be accomplished using various methods and equipment, such as engine hoists, cranes, or even creative solutions like using a tree branch or a wooden gantry. Safety is a primary concern, and it is crucial to have a sturdy setup and a clear understanding of the process before attempting to hoist a boat engine.
How to Hoist a Boat Engine
Characteristics | Values |
---|---|
Engine hoist type | Cherry picker |
Engine type | Inboard, Outboard, I/O |
Engine weight | Up to 300 hp |
Hoist material | Steel, Aluminium |
Lifting mechanism | Manual crank, Hydraulic system, Electric winch |
Hoist attachment point | Davit, Lifting eye |
Hoist height | 6 feet or more |
Hoist adjustments | Adjustable arms or brackets |
Additional equipment | A-frame, Tow truck, Forklift, Bobcat, Block and tackle |
What You'll Learn

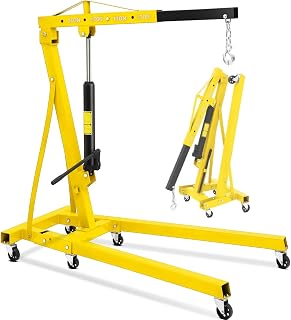

Using a cherry picker engine hoist
Step 1: Prepare the Work Area
Before you begin, ensure you have a clear and level surface to work on. Park your boat and trailer in a spacious area, and make sure the engine hoist is stable and secure.
Step 2: Measure Clearance Height
Determine the height you need to clear. Measure the distance from the floor to the top deck of the boat, and ensure your cherry picker can extend high enough. Most cherry pickers have a maximum height of around 8 feet, but some can go up to 100 inches or more.
Step 3: Secure the Engine
Now, it's time to secure the engine to the cherry picker. This step is crucial for safety, so take your time and use the proper equipment. Start by attaching a lifting eye to the engine. The lifting eye screws into the flywheel, replacing the flywheel nut. This provides a secure point to lift the engine.
If your engine doesn't have a lifting eye, you can use high-strength rope or large tie-down straps. Wrap the rope or straps around the powerhead, ensuring they are securely tied and won't slip. You can also create a makeshift lifting eye by drilling a small piece of angle and attaching it to the engine with bolts.
Step 4: Hoist the Engine
Once the engine is securely attached, you can begin to hoist it. Slowly raise the cherry picker, keeping a close eye on the engine's stability. Be cautious, as the engine may swing or shift as the centre of gravity changes.
Step 5: Lower and Secure
When you've reached the desired height, carefully lower the engine. Guide it to the engine stand or desired location, ensuring it doesn't tilt or swing unexpectedly. Once the engine is in place, secure it to prevent accidental movement.
Step 6: Final Checks
After lowering the engine, double-check all connections and ensure the engine is stable. Make sure the cherry picker is locked in place and cannot accidentally release or lower the engine.
By following these steps, you can safely and effectively use a cherry picker engine hoist to remove or install a boat engine. Remember always to work with a partner whenever possible, and always prioritise safety when working with heavy equipment.
Transform Your Boat: Seadek Carpet Replacement Project
You may want to see also
Building a hoist from scratch
Planning and Design
Start by determining the weight of the boat engine you need to hoist. This will help you choose the right materials and design a safe and stable hoist. Consider the weight capacity of the hoist and select materials that can handle the load. Ensure that you have a clear understanding of the hoist's purpose and the specific requirements, such as the height and width needed to straddle the stern of the boat.
Materials and Tools
For the frame, you will need sturdy materials such as wooden beams (2x4s and 2x6s) or square tubing made of metal. The type of material you choose will depend on your budget, the weight of the engine, and your personal preference. You will also need casters or wheels to make the hoist mobile and adjustable. A winch, come-along, or chain fall will be needed to provide the lifting mechanism. For safety, it is recommended to use a winch or chain hoist that is specifically designed for overhead lifting. Additionally, you will need bolts, screws, and diagonal braces to secure the structure and ensure its stability.
Construction
When constructing the hoist, start by assembling the frame. Ensure that the base is stable and wide enough to provide a solid foundation. The uprights should be securely attached to the base, and the crossbeams should be sandwiched between the uprights for added strength. Diagonal bracing is crucial to prevent lateral movement and ensure the structure's rigidity. Secure all joints and connections with bolts or screws to handle the weight safely.
Safety Precautions
When building and using your hoist, always put safety first. Ensure that the hoist is securely braced and anchored to the ground or a sturdy structure. Test the hoist's stability before attempting to lift any weight. Always use gloves and eye protection when working with the hoist to prevent injuries. Never exceed the weight capacity of the hoist, and be cautious when working at heights.
Additional Tips
You can add a pulley system to increase the lifting force and make it easier to operate. Using a hydraulic ram can also simplify the lifting process by allowing you to raise and lower the engine smoothly. If you need to increase the height of the hoist, consider placing it on a platform or using cinder blocks under the base. Always have a helper when operating the hoist to ensure safety and ease of operation.
Replacing Your Boat's Alternator: A Step-by-Step Guide
You may want to see also
Using a forklift
Step 1: Prepare the Boat and Engine
Before you begin, ensure that the boat is securely positioned on a trailer or a stable surface. Disconnect all necessary components and wiring from the engine, following appropriate safety procedures.
Step 2: Position the Forklift
Place the forklift in a stable and level area near the boat. Ensure that the forklift is on level ground and has sufficient clearance to manoeuvre. Adjust the forklift's height and angle to align with the boat engine.
Step 3: Secure the Engine
Use appropriate lifting equipment, such as chains or straps, to securely attach the engine to the forklift's forks. Ensure that the engine is balanced and securely fastened before attempting to lift it.
Step 4: Lift and Hoist the Engine
Slowly and carefully lift the engine using the forklift. Keep a close eye on the stability of the boat and forklift during this process. Once the engine is clear of the boat, you can then move the forklift backward to pull the engine out completely.
Step 5: Lower and Place the Engine
After the engine is clear of the boat, carefully lower it to the ground or a designated work area. Ensure that the engine is securely placed and supported before releasing it from the forklift.
Additional Considerations:
- Ensure that you have a clear and safe work area, free from obstacles and bystanders.
- Always follow safety protocols when working with heavy equipment and machinery.
- Consider the weight and dimensions of your boat engine to ensure that the forklift can handle the load.
- If possible, have an assistant help guide and spot during the lifting process.
- Be cautious when working near water, as the ground may be unstable or slippery.
Norwalk Boat Show: Dates and Highlights for This Year
You may want to see also
Using a crane
Step 1: Choose the Right Crane
First, you need to select an appropriate crane for the job. There are several types of cranes that can be used for hoisting a boat engine, such as a gantry crane, engine hoist, or a shop crane. Consider the weight of your engine and choose a crane with a suitable capacity. For example, the 1-ton capacity telescoping gantry crane from Harbor Freight is a popular option.
Step 2: Set Up the Crane
The setup will depend on the type of crane you choose. For a gantry crane, you'll need to assemble it following the manufacturer's instructions. Make sure it is stable and secure before proceeding. If you're using an engine hoist or shop crane, you may need to set up a support structure, such as an A-frame or wooden gantry. Ensure that your crane can safely reach the engine and has enough clearance to lift it out.
Step 3: Secure the Engine
Use appropriate slings, straps, or chains to securely attach the engine to the crane. Distribute the weight evenly and ensure that all connections are secure before lifting. It is crucial to take the necessary safety precautions to avoid damage to the boat and injuries to yourself or others.
Step 4: Lift and Hoist the Engine
Once the engine is securely attached, you can start the lifting process. Operate the crane carefully, ensuring that the engine is stable and doesn't swing or sway. Lift the engine clear of the boat and slowly move it to the desired location. If needed, you can use a trolley or pulley system to traverse the engine along the crane's beam for precise positioning.
Step 5: Lower and Secure the Engine
When you've reached the desired location, carefully lower the engine to the ground or a suitable surface. Ensure that the engine is secure and won't tip over. If you're placing the engine onto a stand or mount, adjust the positioning as needed and secure it in place.
Best Boat Launching Spots in Chicago
You may want to see also
Hiring a professional service
Hoisting a boat engine is a complex task that requires careful planning and execution. While some people choose to attempt this task themselves, hiring a professional service can offer several benefits and ensure a safe and efficient process. Here are some reasons why hiring a professional service for hoisting a boat engine is a good idea:
Expertise and Experience: Professional services have trained and experienced staff who are knowledgeable about the safe and proper techniques for hoisting boat engines. They can assess your specific situation and develop a plan that ensures the engine is removed or installed securely and without damage to your boat.
Specialised Equipment: Hoisting a boat engine requires specialised equipment, such as engine hoists, cranes, or hydraulic systems. Professional services will have access to this equipment, saving you the cost and hassle of renting or purchasing it yourself. They will also know how to use the equipment correctly, minimising the risk of accidents or damage.
Safety: Hoisting a heavy boat engine can be dangerous if not done properly. Professional services prioritise safety and will have the necessary training and protocols in place to ensure the job is completed without any safety hazards. They will also be insured, providing you with peace of mind in the unlikely event that something goes wrong.
Time and Convenience: Hiring a professional service can save you a significant amount of time and effort. They can efficiently complete the task, allowing you to focus on other aspects of your boat maintenance or repair. Additionally, they may offer additional services, such as engine installation, maintenance, or transportation, providing a more comprehensive solution.
Cost-Effectiveness: While hiring a professional service may incur upfront costs, it can often save you money in the long run. They can complete the job quickly and efficiently, reducing labour costs. Additionally, they may have access to better equipment and resources, minimising the risk of costly mistakes or damage to your boat or engine.
When choosing a professional service for hoisting your boat engine, be sure to research their reputation, experience, and qualifications. Ask for quotes from multiple providers and compare their services, ensuring they can cater to your specific needs. By hiring a reputable and experienced professional service, you can have peace of mind knowing that your boat engine will be handled safely and effectively.
Dragon Boat Racing: A Beginner's Guide to Racing
You may want to see also
Frequently asked questions
A boat motor hoist, also known as an outboard motor lift or engine hoist, is a device designed to assist in the lifting, lowering and transportation of outboard motors on boats. It is used to remove or install outboard motors from the transom of a boat or to lift the motor out of the water when not in use.
Boat motor hoists typically consist of a sturdy frame with a lifting mechanism, such as a manual crank hydraulic system or electric winch. Some common examples include:
- Engine hoist or cherry picker
- A-frame
- Gantry crane
- Tow truck with a hydraulic boom
- Forklift
- Crane truck
It is important to use a hoist that is designed to accommodate the weight and size of the specific outboard motor. Additionally, it is crucial to ensure that the hoist is securely attached to a fixed point on the boat, such as the davit or a lifting eye. Always follow the manufacturer's instructions and safety guidelines when operating a boat motor hoist.
