Andrew Pace

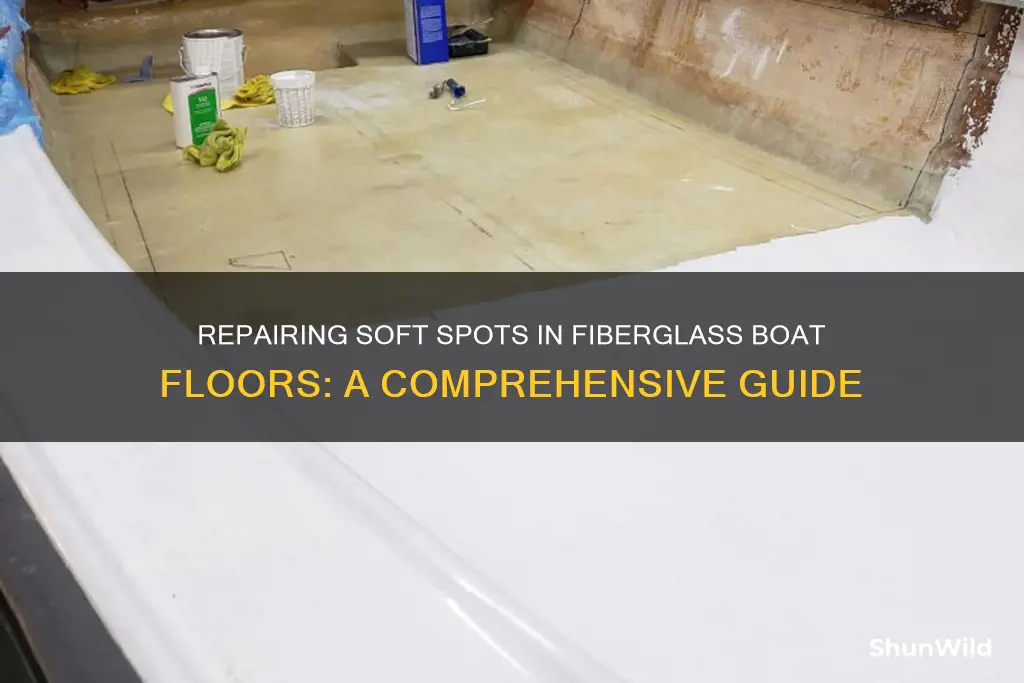

Soft spots in the flooring of fiberglass boats are a common issue, often caused by waterlogged wood underneath the fiberglass surface. While it may be tempting to attempt a quick fix, such as using polyester resin or drilling a hole to inject foam, these patch jobs are not recommended and can lead to further issues down the line. The best approach is to address the root cause and perform a comprehensive repair, which may involve cutting out the affected area, replacing the wood, and patching the fiberglass. This process can be time-consuming and costly, but it is crucial to ensure the safety and longevity of your boat.
| Characteristics | Values |
|---|---|
| Diagnosis | Tap around the soft spot with a screwdriver. If it sounds hollow, it indicates a weak area. |
| Severity | Depends on the size and severity of the soft spot. |
| Repair | Cut out the soft spot and replace with marine plywood. Use epoxy and fiberglass to cover the plywood. |
| Alternative Repair | Drill a hole and pour resin into the rotted core. |
| Alternative Repair | Use a fiberglass repair kit and follow the instructions. |
| Alternative Repair | Use resin-based putty to fill the area. |
| Alternative Repair | Caulk a metal plate wider than the soft spot. |
Explore related products
What You'll Learn
Cut out the soft spot
Before you cut out the soft spot, it's important to determine the extent of the damage. Tapping around the soft spot with a screwdriver can help you identify if there is a weak area. If you hear a hollow sound, it indicates a weak area that needs to be addressed. Additionally, using a moisture meter can help determine if there is waterlogged wood underneath the fiberglass surface, which is a common cause of soft spots.
When you're ready to cut out the soft spot, use a circular saw or jigsaw to carefully cut out the damaged area. Make sure to cut in a rectangular or square shape to make it easier to patch later. Be cautious not to damage the surrounding deck area. After cutting out the soft spot, carefully remove the fiberglass layer around the cut-out area.
At this point, you will be able to assess the extent of the damage and determine if there is rotten wood or waterlogged foam underneath. It's important to note that soft spots can indicate further degradation, so be prepared to address any additional issues that may be uncovered. Once you have removed the soft spot and addressed any underlying issues, you can move on to the next steps of the repair process, such as replacing the wood or using a fiberglass repair kit.
It's worth mentioning that repairing soft spots in fiberglass boat floors can be a time-consuming and costly project. It may take several months to complete the repairs, and the materials required, such as epoxy, fiberglass, and marine-grade plywood, can be expensive. However, with the right tools, comprehensive instructions, and dedication, it is possible to salvage your fiberglass boat and restore it to seaworthy condition.
Haven's Boy on the Boat: A TV Mystery
You may want to see also
Explore related products
Remove the rotted stringers
Before removing the rotted stringers, it is important to determine the extent of the damage. Use a mirror and flashlight to inspect the area for impact damage, such as fractures in the stringer or delamination of tabbing and core. Tap the suspected area with a small hammer; a "dead" sound indicates that the core is not firmly attached to the fiberglass.
Once the damage has been assessed, you can begin the removal process. Mark the area of the damaged stringer to ensure you put the replacement in the same place. Use a grinder to cut the tabbing at the core/hull joint, being careful not to cut into the hull laminate. Remove the stringer and core, ensuring that all damaged core material is taken out.
Trim the exposed core ends to a minimum 8-to-1 scarf angle. Grind the edges of the skin to 12-to-1 scarf angles to prepare for the skin replacement. Use typical cutting tools, such as chisels, disc grinders, hand planes, and hand saws, to cut through the wood and fiberglass.
Finally, prepare the surfaces by cleaning, drying, and sanding. Remove any contamination by wiping the surface with paper towels.
Alweld Boats: Are They Worthy Bass Fishing Vessels?
You may want to see also
Explore related products
Replace the stringers
Before you begin, it's important to note that replacing the stringers in a boat is a lot of messy, hard work. It's also important to try to mimic the boat's original construction. Replacing stringers with significantly larger or stronger ones can cause hard spots in the hull, which could lead to future hull damage. And replacing them with significantly lighter stringers could lead to structural failure. So, it's always best to stick with the original designer's intent unless that design has been proven to fail already.
Step 1: Prepare the surfaces
All surfaces should be clean, dry, and sanded.
Step 2: Remove the old stringers
The wood that used to be inside the stringers may have turned into a gelatinous mess of rot, so this step usually means dealing mostly with the fibreglass shell that used to surround them. Depending on how well the boat was laminated and how it has withstood the test of time, it may be possible to simply rip the remainder free or bang them out. Otherwise, you'll have to shave them down along the hull and then grind away the remnants. In most cases, it's a combination of both.
Step 3: Grind and sand the inside of the hull
To get a good secondary bond between the new stringers and the hull, you'll need to create a clean surface. That means grinding away all the glass from the old stringers and sanding until you're working with a "new" surface free of contamination and obstructions.
Step 4: Make the core
Using the same type of wood as the existing core, cut a piece of timber to fit the size and shape of the core in the removed stringer. Dry fit and trim the new piece for a good fit. Abrade the bonding surfaces by sanding with 50-grit paper and brush the area free of dust or loose material. Sand the bonding surfaces of hardwood or epoxy-coated stringers with 50-grit sandpaper.
Step 5: Bond the core
With a resin/hardener mix, wet out all contact surfaces of the hull and core. Apply a liberal amount of thickened epoxy to one side of the contact area. Push the stringer into position with firm hand pressure. Thickened epoxy should squeeze out of the joint. Shape the squeezed-out epoxy into a fillet and, if necessary, apply additional thickened epoxy to the joint for a smooth finish.
Step 6: Finishing
Now that you have successfully replaced the stringer, all that's left to do is replace the fibreglass skin and your deck will, once again, be fully supported. You'll almost always end up with a jagged edge or a fibreglass hair sticking up, so be sure to sand or grind them until smooth.
How Paddle Design Affects Boat Propulsion
You may want to see also
Explore related products
Use a fiberglass repair kit
If you're looking to fix a soft spot in the floor of your fiberglass boat, one option is to use a fiberglass repair kit. These kits can be an effective way to address the issue, but it's important to follow the instructions carefully for the best results. Here's a step-by-step guide on how to use a fiberglass repair kit to fix that soft spot:
First, you'll need to assess the damage and determine the size and severity of the soft spot. This will help you understand the extent of the repair needed. Use a screwdriver to tap around the soft spot; if you hear a hollow sound, it indicates a weak area that needs attention.
Next, you'll want to cut out the damaged area. Use a circular saw or a jigsaw to carefully cut out the soft, squishy section of the deck. Make sure to cut in a rectangular or square shape, as this will make it easier to patch later. Be cautious not to damage the surrounding deck area during this process.
After cutting out the damaged area, carefully remove the fiberglass layer around the cut-out space. This step is crucial to access the underlying wood that may be waterlogged or deteriorated. Once you remove the fiberglass, you can assess the extent of the damage to the wood.
Now, it's time to follow the instructions on your fiberglass repair kit. Typically, this involves cutting fiberglass matting to fit the shape of the affected area. You'll want to cut the matting slightly larger than the cut-out area to ensure a proper fit and seal.
Apply the fiberglass matting to the prepared area, following the kit's instructions for the best adhesion and curing process. This may involve using epoxy or resin to secure the matting in place. Allow the necessary curing time, as per the instructions, before proceeding to the next step.
Finally, you can sand down the repaired area to ensure a smooth finish. If needed, fill any remaining holes or imperfections with putty or filler, following the kit's instructions for curing and sanding. Give the repair ample time to cure, and your soft spot will be a thing of the past!
Remember, soft spots in boat floors can lead to more severe problems if left unattended, so it's important to address them promptly and correctly. Using a fiberglass repair kit is just one method, and depending on the severity of the damage, you may need to explore other options or seek professional advice.
Raising Boat Seats: Easy Adjustments for Better Comfort and Control
You may want to see also
Explore related products
Fill the area with resin-based putty
Filling the soft spot in a fiberglass boat floor with resin-based putty is one of the ways to repair it. This method is suitable for small, localized soft spots. The first step is to cut out the damaged area with a circular saw or a jigsaw, ensuring that the cut-out is rectangular or square for easier patching. It is important to be careful during this process to avoid damaging the surrounding deck area.
After cutting out the soft spot, the next step is to fill the area with resin-based putty until it is slightly higher than the surrounding areas. It is crucial to follow the instructions provided with the putty to ensure proper application. Once the putty is in place, it needs ample time to cure.
After the curing process, the putty can be sanded down to create a smooth surface. If there are any remaining holes or imperfections in the putty, they can be filled, and the putty can be left to cure again overnight or as instructed. This process may need to be repeated until the putty is flush with the surrounding area.
It is important to note that while this method can address the soft spot, there may be underlying issues, such as waterlogged wood or foam, that require further attention. Therefore, it is recommended to investigate the cause of the soft spot and address any underlying issues before proceeding with the repair.
Patonga Boat Ramp: Open or Closed?
You may want to see also
Frequently asked questions
You can tap around the suspected area with the back end of a screwdriver. If you hear a hollow sound, it indicates a weak area. You can also use a moisture meter to test the area. A high reading indicates that the wood underneath is damaged and needs to be replaced.
The best course of action is to cut out the soft spot and replace it with marine-grade plywood, ensuring that you have solid stringers on at least two sides. You can then glass over and blend in the new plywood.
Yes, you can use a fiberglass repair kit and follow the given instructions. This usually involves cutting the fiberglass matting to the shape of the affected area. You can also use a resin-based putty to fill the area, allowing ample time for curing before sanding it down.
