Understanding Boat Hydraulic Steering Systems: How They Work

Hydraulic steering systems are commonly used in modern boats, especially those with mid-to-high horsepower outboard motors. They are popular because they can handle all torque conditions and provide a smooth, lightweight feel when turning the steering wheel. This type of steering system uses a hydraulic hose to control the steering, with hydraulic fluid pumped through two hoses from the helm to the hydraulic cylinder, which is mounted to the engine or rudder. The helm features a hydraulic pump and valves, which convert the rotary motion of the steering wheel into a push-pull movement of the cable, directing the rudder to move the boat in the desired direction.

The helm and the cylinder are the two main parts of a hydraulic steering system

In a two-line manual system, the helm pump moves the hydraulic cylinder directly. When the steering wheel is turned clockwise, fluid is sent from the helm unit into the starboard hydraulic line and then into the cylinder, extending or retracting the cylinder rod. This movement of the piston, which is pinned to an external rod, causes the boat to turn. The outgoing fluid from the other end of the cylinder returns to the helm via the port side line.

The helm and cylinder work together to provide smooth and effortless steering, making it easier to control larger and faster boats. The helm's pump and valves initiate the steering action by directing fluid into the hydraulic lines, while the cylinder's movement translates into the actual turning of the rudder or outboard engine.

The helm and cylinder are the core components of a hydraulic steering system, and their functions are crucial to the overall performance and responsiveness of the boat's steering capabilities.

The helm consists of a hydraulic pump and a system of valves

The helm is one of the two main parts of a hydraulic boat steering system. It consists of a hydraulic pump and a system of valves, which work together to pump fluid into the hydraulic lines. The pump is activated by turning the steering wheel, which in turn causes a swashplate to press on a series of small piston pumps. The use of small pistons and ball bearings makes the pump action very smooth and efficient. The internal valve assembly acts as a check valve, preventing the outgoing fluid from returning, while also eliminating kickback to the wheel.

The helm serves several functions, including incorporating a hydraulic fluid reservoir and a relief valve. In some systems, the helm, reservoir, and relief valve are separate components. The SeaStar helm, for example, is a popular pick for hydraulic boat steering systems, as it is adjustable to five wheel positions to provide the most comfortable steering position.

The helm is responsible for converting the rotating motion of the steering wheel into a push-pull action on the cable. This cable then directs the rudder to move left or right, steering the boat in the desired direction. Most helms are rotary and use gears to move the rudder. The number of turns lock-to-lock indicates the number of times it takes for a fully-turned wheel on one side to be fully turned to the other side.

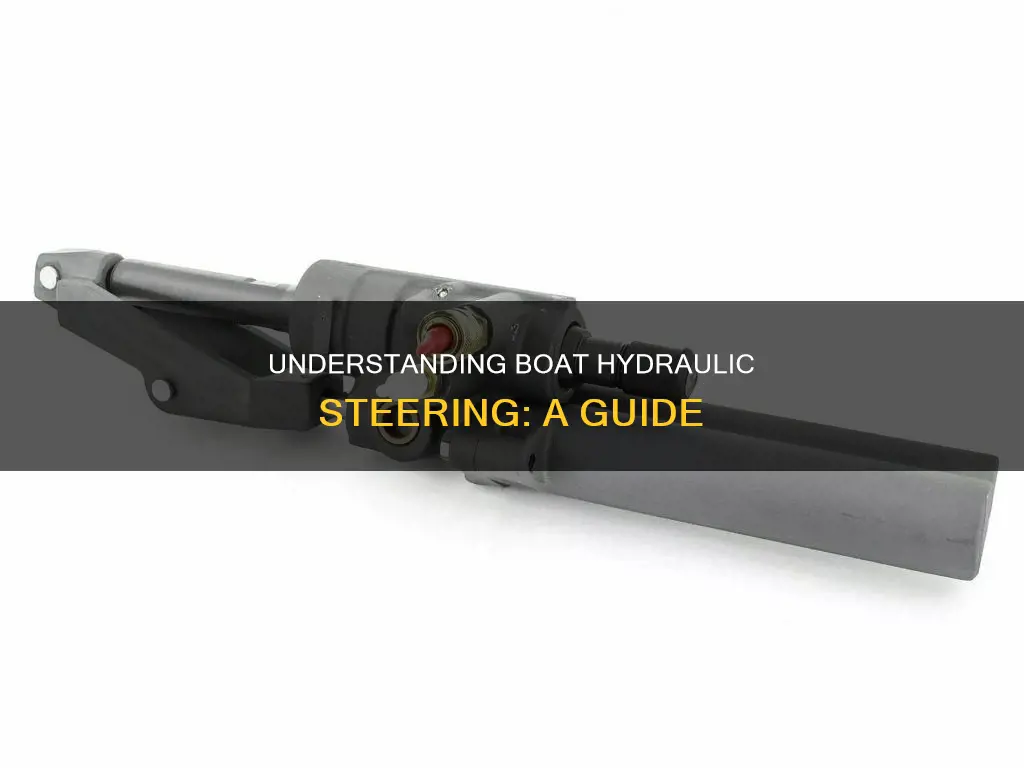

The cylinder is made up of a ram, bored cylinder and hardware

The cylinder is a crucial component of a boat's hydraulic steering system, responsible for converting the hydraulic fluid's pressure into the force required to steer the vessel. It is made up of three main parts: the ram, bored cylinder, and attaching hardware.

The ram is a piston-like component that moves back and forth within the cylinder when hydraulic fluid is pumped in and out. This ram is connected to the rudder or outboard engine, so its movement directly controls the direction of the boat. The ram must be properly sealed to prevent leaks and ensure smooth operation.

The bored cylinder is the housing within which the ram moves. It is a precisely machined tube with a smooth interior surface to allow the ram to slide back and forth effortlessly. The cylinder is connected to the helm (the steering wheel) via hydraulic lines, which carry the fluid back and forth to control the ram's movement.

The hardware refers to the components that attach the cylinder to the boat's steering mechanism. These include fittings, seals, and other small parts that ensure a secure and leak-proof connection between the cylinder and the rest of the steering system.

The cylinder's function is simple yet critical to the overall performance of the hydraulic steering system. When the steering wheel is turned, hydraulic fluid is pumped into the cylinder, causing the ram to extend or retract, which in turn moves the rudder or outboard engine, thus steering the boat in the desired direction. The cylinder's design ensures that the force generated by the hydraulic fluid is transferred efficiently to the steering mechanism, providing a smooth and responsive steering experience.

The cylinder's size, stroke length, and pressure rating are selected based on the boat's size, speed, and engine type to ensure optimal steering performance. Regular maintenance of the cylinder, including checking for leaks, corrosion, and proper lubrication, is essential to keep the hydraulic steering system functioning safely and effectively.

Hydraulic steering is more resistant to corrosion than mechanical steering

Hydraulic steering is a reliable system that is widespread in boats, except for those that use a tiller, cable, or other forms of mechanical steering. It is composed of three components: a pump with a reservoir for hydraulic oil, a ram that connects to a rudder or outboard engine, and connecting lines that transmit inputs from the steering pump to the steering ram. Turning the steering wheel in either direction pumps oil through the lines to the ram, which then moves the rudder, outboard, or sterndrive accordingly.

Moreover, consistent preventative measures and proper maintenance play a crucial role in minimizing corrosion in hydraulic steering systems. Regular inspections, fluid replacements, and the use of compatible fluids and materials are essential to inhibiting corrosion. By contrast, mechanical steering systems may be more susceptible to corrosion due to their direct exposure to the elements and the absence of specialized corrosion-resistant materials and coatings.

In summary, hydraulic steering's resistance to corrosion stems from the combination of corrosion-resistant materials, protective coatings, and the presence of corrosion inhibitors in the hydraulic fluid. Proper maintenance and preventative measures further enhance its durability. These factors contribute to the overall reliability and widespread adoption of hydraulic steering systems in boats.

Hydraulic steering is recommended for larger boats over 10 metres in length

Hydraulic steering uses a lightweight hydraulic hose to control the steering, giving larger or high-powered vessels a smooth, lightweight feel when turning the steering wheel. With fewer metal parts than a mechanical system, hydraulic steering is also more resistant to corrosion. It can deal with all torque conditions and may only require fingertip effort to operate.

Hydraulic steering is also a more durable and low-maintenance option. The fluid activates the system by driving a ram that moves a tiller arm attached to the rudder or outboard motor. This makes steering the boat easier, as the wheel causes the pumps to activate instantaneously.

For boats over 10 metres in length, mechanical steering can be difficult due to the torque (or force) of a large outboard motor. Mechanical steering is suitable for boats under 10 metres in length and should not be used if the engine exceeds the boat's recommended maximum horsepower.

When it comes to boating, the steering system is an important component that can greatly impact the enjoyment and safety of the experience. Therefore, it is essential to choose the right steering system for your boat based on its size and type of motor.
