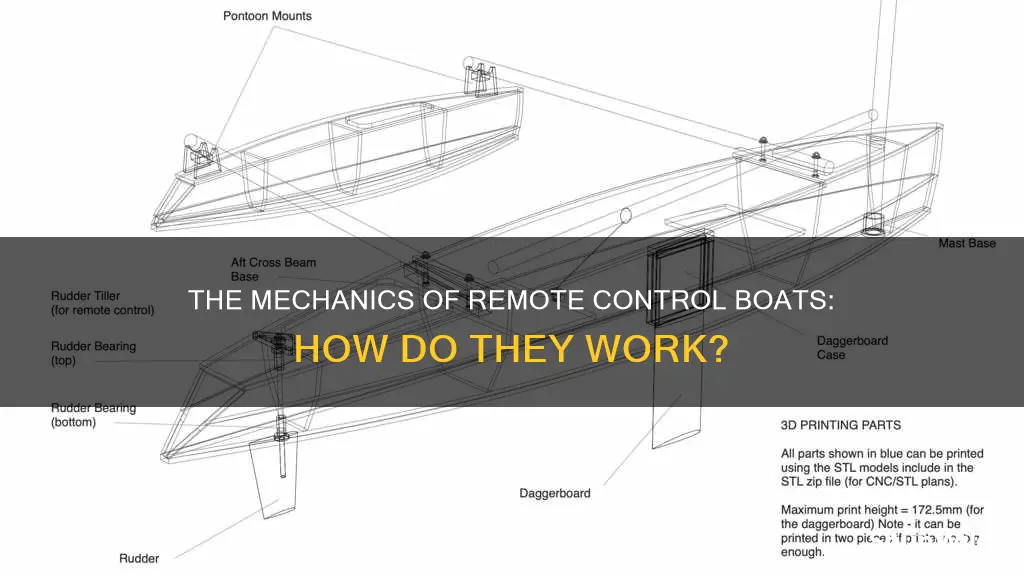

Understanding The Working Of A Remote Control Boat

how a remote control boat works

Radio-controlled boats are a fun hobby for many, and they work on a simple principle. All radio-controlled toys have four main parts: a transmitter, a receiver, a motor, and a power source. The transmitter sends radio waves to the receiver, which then activates the motors inside the boat. In the case of a radio-controlled boat, the motors can steer the vessel, operate the propeller, and perform other functions. The power source for the boat is typically a rechargeable battery pack, and the radio system usually operates at 2.4GHz, though older models may use 27MHz or 49MHz frequencies.

The drive system of a typical radio-controlled boat is straightforward. An electric motor near the front of the boat is connected to a shaft that runs towards the back and exits through the bottom of the hull via a stuffing tube. This tube is filled with grease to lubricate the shaft and prevent water from entering the hull. At the end of the shaft is the propeller, which propels the boat forward. Steering is accomplished with a submerged rudder placed just behind the propeller, which is controlled by a small servo inside the hull.

Radio-controlled boats come in various types, including electric sport boats, scale boats, and sailboats. They can be purchased as kits or ready-to-run models, with the latter being further divided into hobby-grade and toy-grade categories based on their performance and intended audience.

shunwild

The remote control sends radio waves to the receiver

The remote control, or transmitter, is the component of a radio-controlled boat that the operator holds in their hands to control the boat. It sends radio waves to the receiver, which is an antenna and circuit board inside the boat. The transmitter sends a control signal to the receiver using radio waves, which then drives a motor, causing a specific action to occur. The power source for the transmitter is usually a rechargeable battery pack, but sometimes it can also be normal batteries.

The radio waves transmitted by the remote control carry instructions for the boat's movement and functions. These instructions are received by the receiver and then translated into actions by the boat's motors and mechanisms. For example, in a model sailboat, the radio-controlled motor controls the rudder, while the wind provides propulsion. Similarly, in a blimp, the RC motors control small propellers, while helium or hot air provides lift.

The transmitter sends bursts of radio waves that oscillate at a specific frequency, such as 27 MHz or 49 MHz for basic consumer RC toys. More advanced RC models, like sophisticated RC airplanes, use higher frequencies of 72 MHz or 75 MHz. These frequencies have been allocated by the FCC to minimise interference with other devices.

The sequence of events when the transmitter sends a signal is as follows: the operator presses a trigger on the remote control, which completes an electrical circuit. This causes the transmitter to send a set sequence of electrical pulses or modulation. The receiver then picks up these radio bursts and sends them to a filter, blocking out any signals other than the assigned frequency. The filtered signal is then converted back into an electrical pulse sequence, which is sent to the integrated circuit (IC) in the boat.

The IC decodes the pulse sequence and activates the appropriate motor to perform the desired action. For example, a certain sequence of pulses might cause the IC to send a positive current to the motor running the wheels, making the boat move forward. By altering the pulse sequence, the IC can invert the current to make the motor spin in the opposite direction, causing the boat to move backward.

shunwild

The receiver activates the motors inside the boat

The receiver is an antenna and circuit board inside the boat that receives signals from the transmitter. When the receiver gets a signal from the transmitter, it activates the motors inside the boat. The motors can steer the boat, operate the propeller, or perform other functions. In the case of Nikola Tesla's remote-controlled boat, the receiver controlled the boat's propeller, rudder, and lights.

The receiver is an essential component of a remote-controlled boat, allowing it to be controlled wirelessly by the operator. It interprets the signals from the transmitter and translates them into instructions for the motors to perform specific actions. This enables the boat to change speed and direction and control onboard gadgets such as lights or moving parts.

The receiver in a remote-controlled boat works in conjunction with the transmitter, which is the handheld device used to send signals to the boat. The transmitter sends signals over a specific frequency, and the receiver in the boat is tuned to that frequency to receive the signals. This wireless communication between the transmitter and receiver allows the operator to control the boat's movement and functions remotely.

The receiver in a remote-controlled boat is typically connected to a battery-powered electric motor or servo. It receives signals from the transmitter and activates the motor to perform the desired action. The motor can turn wheels, steer the boat, operate the propeller, or control other functions. The power source for the motor is usually a rechargeable battery pack or regular batteries.

Overall, the receiver plays a crucial role in a remote-controlled boat by activating the motors and enabling the operator to control the boat's movement and functions wirelessly.

shunwild

The motor transfers power to the propeller via a drive shaft

The electric motor that powers the propeller is typically located near the front of the boat and is connected to the drive shaft, which runs towards the back of the boat. This setup allows the motor to transfer its power to the propeller efficiently, providing the necessary thrust to move the boat through the water.

The drive shaft and stuffing tube assembly play a critical role in the overall performance of the RC boat. They ensure that the power generated by the motor is effectively transferred to the propeller, enabling the boat to achieve desired speeds and manoeuvrability. The grease within the stuffing tube also helps to reduce friction and maintain smooth operation.

Additionally, the drive shaft assembly contributes to the overall durability of the RC boat. The stuffing tube, combined with proper sealing of the canopy and electronics, helps to prevent water ingress, protecting sensitive components from potential damage. This design consideration is crucial for the long-term reliability of the boat, ensuring that it can be operated in various aquatic conditions without issues.

Overall, the motor transferring power to the propeller via the drive shaft is a fundamental aspect of how an RC boat functions. It showcases the intricate interplay between the boat's power system, drive system, and overall design, highlighting the engineering that goes into these remote-controlled vessels.

shunwild

The radio system is a combination of the radio frequency transmitter and receiver

Radio-controlled boats, also known as RC boats, are vessels that can be steered remotely using radio control equipment. The radio system in an RC boat is a combination of a radio frequency (RF) transmitter and receiver. The transmitter is the handheld device that sends signals to the receiver in the boat, which then activates the motors to carry out the desired action.

The radio transmitter sends signals over a specific frequency, typically in the range of 27 MHz or 49 MHz for basic consumer RC toys. More advanced RC boats, such as those used in competitive racing, may utilise higher frequencies of 72 MHz or 75 MHz. The frequency range is usually indicated on the product label, allowing users to operate multiple RC boats simultaneously without interference between transmitters.

The transmitter's signal is received by an antenna and circuit board inside the boat. This activates the electric motors, which are connected to the propeller and rudder, enabling the boat to move forward, backward, left, or right. The power source for the motors is usually a rechargeable battery pack or standard batteries.

It is important to ensure that the transmitter and receiver operate on the same frequencies to avoid potential damage. Additionally, the use of efficient antennas and directional antennas can help improve the range and signal strength of the radio system.

Nikola Tesla, the famous inventor, was one of the pioneers of radio-controlled boats. In 1898, he demonstrated a small radio-controlled vessel at the Electrical Exhibition in Madison Square Garden, New York. Tesla's invention showcased the potential of using radio waves to control a boat's speed, direction, and on-board gadgets such as lights.

shunwild

The battery pack provides power to the boat

The battery pack is an essential component of a remote-controlled boat, providing the power necessary for its operation. The power source is typically a rechargeable battery pack, although some boats may use normal batteries. The battery pack is connected to the electric motor, which drives the propeller and rudder, propelling the boat through the water and enabling it to change direction.

The capacity and voltage of the battery pack are important considerations. A higher-capacity battery pack can handle more load without issue, while the voltage determines the speed and power output of the motor. For example, a battery pack with a capacity of 1100mAh can provide a nominal DC supply voltage of 7.2V, resulting in a standard running time of around three to six minutes for a single-motor boat.

Different types of batteries are available for remote-controlled boats, such as Ni-MH (Nickel-metal Hydride) and lithium-polymer batteries. Ni-MH batteries are less expensive and provide solid performance, but they have a sharper discharge curve, resulting in varying speed and performance during a run. On the other hand, lithium-polymer batteries offer a flatter discharge curve, delivering more consistent performance. They are also lighter in weight and do not suffer from inherent performance degradation issues like Ni-MH batteries.

When choosing a battery pack, it is crucial to consider the C rating, which indicates the amperage-discharge capability of the battery. A higher C-rating means the battery can handle higher loads without issue. Additionally, a good battery charger, such as a peak-detection charger, is recommended to ensure the battery pack is charged safely and effectively.

Frequently asked questions

All remote-controlled boats have four main parts: a transmitter, a receiver, a motor, and a power source. The transmitter sends radio waves to the receiver, which then activates the motor to perform specific actions. The power source is typically a rechargeable battery pack.

The transmitter in your hand sends radio waves to the receiver in the boat. The receiver then activates the motors inside the boat as commanded by the transmitter. The motor can turn wheels, steer the vehicle, or operate propellers.

Remote-controlled boats typically use a rechargeable battery pack as their power source.

Remote-controlled boat kits are widely available and can include a motor/engine, radio, radio gear, batteries, and other accessories. These kits are a great way to get started in the world of remote-controlled boating and are suitable for both children and adults.
