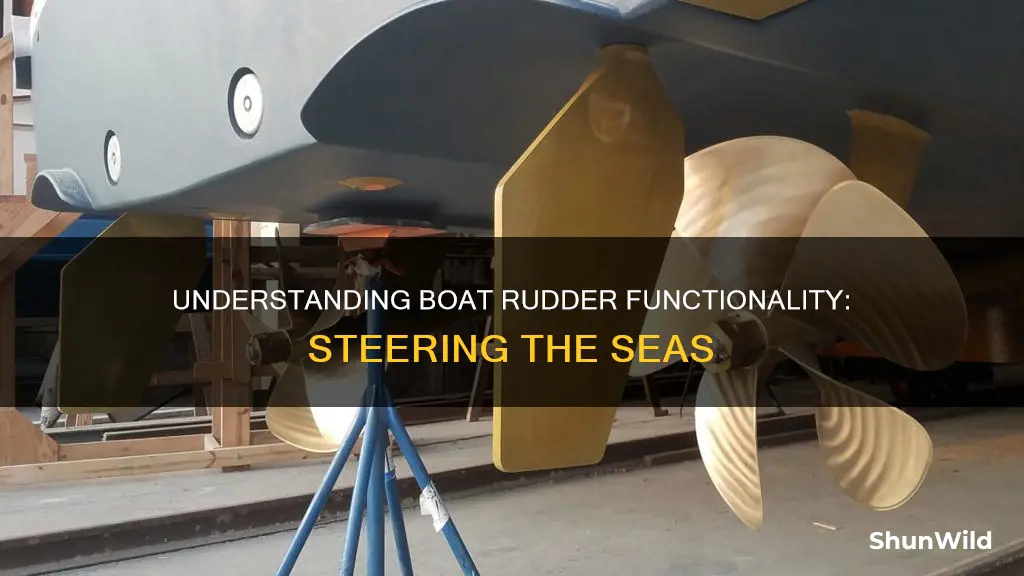

Understanding Boat Rudder Functionality: Steering The Seas

Rudders are an essential piece of equipment for steering a boat. They are usually located at the rear of the vessel, behind the ship's propellers, and are controlled by manual or automated systems. When the direction of the rudder is altered, it interacts with the water to change the ship's direction. The rudder's movement creates hydrodynamic forces that enable the boat to be steered and manoeuvred. The size of the rudder is proportional to the size of the ship, as larger ships require larger rudders to direct a greater volume of water.

The rudder is controlled by manual or automated systems

In larger vessels, cables, pushrods, or hydraulics may link rudders to steering wheels. The steering wheel is turned by the helmsman, which then moves the rudder via the cables, pushrods, or hydraulics. Some large vessels may also use automated systems to control the rudder. For example, large ships may use high-torque rudder controls such as ram-type steering gear, which employs hydraulic rams to rotate the rudder stock.

The rudder is also controlled by the angle at which it is turned. The rudder angle is determined by the helmsman and can range from small angles for course keeping to larger angles for manoeuvring. The rudder angle affects the amount of lift and drag induced by the rudder, with larger angles generally resulting in more lift and drag.

Additionally, the shape and design of the rudder can impact its control. Different rudder profiles, such as flat-plate, NACA, HSVA, and IFS, can have different hydrodynamic characteristics, affecting the amount of lift and drag generated. The size and shape of the rudder, including its area, thickness, span, and chord, can also influence its control and performance.

The placement of the rudder in relation to the propeller can also impact its control. Rudders placed in the propeller stream benefit from increased water velocity, which can improve their effectiveness. The relative position of the propeller and rudder can also affect the performance of both components. Placing the rudder closer to the propeller can improve its performance, while also reducing the potential for cavitation.

It's placed behind the ship's propeller

The placement of a rudder is crucial for the functionality and manoeuvrability of a ship. The rudder is placed behind the ship's propeller for several reasons, including hydrodynamic efficiency, the generation of greater lift force, and the ability to turn the ship effectively.

Firstly, the placement of the rudder behind the propeller takes advantage of the propeller's slipstream, which increases the velocity of the water flowing over the rudder. This increased water velocity results in a greater lift force, making it easier to turn the ship. The propeller's outflow enhances the lift generated by the rudder, making it more effective at slower speeds.

Secondly, the placement of the rudder is also determined by its function. The rudder's primary purpose is to generate forces for course-keeping and manoeuvring. By placing the rudder behind the propeller, it can effectively use the propeller's slipstream to create a steering moment about the ship's centre of gravity. This steering moment helps to turn the ship and maintain its desired course.

Additionally, the rudder's placement behind the propeller allows for better directional stability. When the ship experiences external forces, such as wind or water currents, the rudder creates a counterforce that helps the ship maintain its heading. This is crucial for course-keeping and ensures the ship can continue in a straight line even when subjected to external influences.

Furthermore, the rudder's placement behind the propeller also has structural benefits. It allows for more efficient use of space within the ship, as all the major machinery, including the engine and rudder, are located at the back of the ship. This makes maintenance and operation more accessible and simplifies the arrangement of cargo holds.

Lastly, the placement of the rudder behind the propeller improves the ship's overall performance. The interaction between the propeller and rudder can enhance the ship's manoeuvrability and reduce resistance, resulting in improved fuel efficiency. The propeller's slipstream can also delay the stall angle of the rudder, allowing for more effective turning capabilities.

The rudder is essential for navigation and steering

The rudder works by redirecting the fluid (water or air) past the hull or fuselage, thus imparting a turning or yawing motion to the craft. When the rudder is turned to one side, it directs the water in a different direction. The water is directed at an angle away from the boat, increasing the pressure exerted on one side and decreasing the pressure on the other. This pressure difference pushes the stern in the direction of the turn, causing the boat to swerve from its original course.

The effectiveness of a rudder can be improved in several ways, such as by increasing the rudder area, using a more efficient rudder type, or allowing larger rudder angles. The type of rudder chosen depends on the specific needs of the vessel. For example, high-lift rudders are often used on vessels that require better manoeuvrability, while balanced rudders are designed to balance the water pressure on both sides of the turning axis, reducing the pressure on the steering mechanism or helmsman.

The placement of the rudder is also crucial. Rudders are typically placed at the aft of the vessel, behind the propeller, as this increases the velocity of the water flowing over the rudder, resulting in greater lift and improved steering capability. Additionally, placing the rudder behind the propeller ensures that the rudder works in the propeller's slipstream, which can further enhance its effectiveness.

Overall, the rudder plays a vital role in a vessel's navigation and steering capabilities, and its design and placement are carefully considered to optimise performance.

It helps maintain the ship's stability

A rudder is a primary control surface used to steer a ship, boat, or submarine. It is usually placed at the stern of the ship, and its placement is crucial for maintaining stability and achieving manoeuvrability.

The rudder works on the principle of redirecting the water flowing past the hull of the ship. When the rudder is turned, it creates a force that pushes the stern away from the side on which the rudder is turned, causing the ship to change course. This force is crucial for maintaining the ship's stability, especially during turns.

The effectiveness of the rudder can be improved in several ways, including increasing the rudder area, using different rudder types, and optimising the rudder profile. For example, a balanced rudder has a portion of its blade surface forward of the turning axis, reducing the pressure on the helmsman or steering mechanism. Another type is the fishtail or Schilling rudder, which has a flared end that increases efficiency at slower speeds, making it ideal for slow-speed ship handling.

The size and shape of the rudder are also important factors. A larger rudder area generally results in greater turning force but also increases resistance. The thickness of the rudder blade is often determined by the rudder stock diameter, which depends on the required torque and bending moment. The span, or height, of the rudder is typically limited by the ship's draught and operational requirements but should be as large as possible to increase effectiveness and efficiency.

The placement of the rudder is also key to maintaining stability. Rudders are typically placed at the stern, behind the propeller, to take advantage of the increased velocity of water flowing out of the propeller's slipstream, which results in greater lift. This position also ensures directional stability by creating a stabilising force that counteracts any sideways movement of the ship.

In summary, the rudder plays a crucial role in maintaining a ship's stability by generating the necessary turning force while also providing directional stability to keep the ship on course. The design and placement of the rudder are carefully considered to optimise its effectiveness and efficiency, ensuring the ship can turn smoothly and maintain its stability during its voyage.

Rudder movement generates hydrodynamic forces that turn the ship

The design of the rudder plays a crucial role in its ability to generate hydrodynamic forces. The shape, size, and position of the rudder all impact the amount of force it can exert on the water. For example, curved or airfoil-shaped rudders can create a greater pressure difference than flat rudders, resulting in a more efficient turn. Additionally, the area and thickness of the rudder, as well as its aspect ratio (the ratio of its height to its width), influence the force it can generate. A larger rudder with a higher aspect ratio will generally be more effective in turning the ship.

The speed of the ship also affects the performance of the rudder. As the speed of the water flowing past the rudder increases, the effectiveness of the rudder improves. This is because the faster-moving water creates a stronger pressure difference, resulting in a more powerful turning force. Therefore, rudders are more responsive at higher speeds.

Furthermore, the position of the rudder relative to the propeller can impact its performance. When a rudder is placed directly behind the propeller, the increased velocity of the water flowing from the propeller results in greater lift and a more efficient turn.

In addition to these factors, the angle of the rudder and the presence of multiple rudders can also influence the hydrodynamic forces generated. By optimising these design aspects and considering the ship's speed, the effectiveness of the rudder in turning the ship can be maximised.
